How to remove selected wire frames from bounding box in 3D plots?

Question

In 3D plots one can eventually hide the whole bounding box by the use of option Boxed -> False. How to remove only a selected part of the wire frame that surrounds the plot?

score 3 · Answer 1 · answered Sep 13 '14 at 17:08

3

You could use FaceGrids

Graphics3D[Cylinder[],
 Axes -> True,
 FaceGrids -> {{0, -1, 0}, {-1, 0, 0}},
 Boxed -> False]

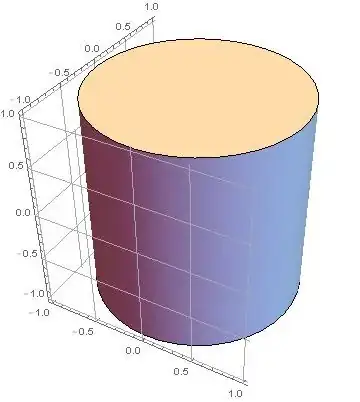

enter image description here

answered Sep 13 '14 at 17:08

eldo

67,911
5
60
168

Thanks @eldo! It worked so fine. – robson denke Sep 13 '14 at 17:18
