Control PointSize on a ListPlot

Question

When I thought to vary PointSize on a ListPlot, I expected to find it trivial to do. I've likely overlooked something simple, but I've found it quite curious.

Reducing the problem to some simple examples:

ListPlot[{0.1, 0.2, 0.3}]
ListPlot[{0.1, 0.2, 0.3}, PlotStyle -> (PointSize[#] & /@ {Small, Medium, Large})]
ListPlot[{{0.1}, {0.2}, {0.3}}, PlotStyle -> (PointSize[#] & /@ {Small, Medium, Large})]
ListPlot[{{1, 0.1}, {2, 0.2}, {3, 0.3}}, PlotStyle -> (PointSize[#] & /@ {Small, Medium, Large}), PlotRange -> {{0, 3}, Automatic}]

plots

The 1st plot shows the starting plot with no PlotStyle set.

The 2nd plot shows an attempt to size the individual points. This does not work either, but the documentation for PlotStyle explains why:

PlotStyle documentation

The 3rd plot makes each value in the original list its own object. This sizes the points properly, but does not plot them as I would like along the x axis.

The 4th plot adds position values for each object's point, but now I've lost the PointSizing.

Any suggestions on how to do this?

Any explanation of the paradigm involved in doing this properly?

@Öskå Correct, as illustrated below. :-) – Mr.Wizard Sep 28 '14 at 15:47 — Mr.Wizard, Sep 28 '14 at 15:47

score 9 · Answer 1 · answered Sep 28 '14 at 17:22

9

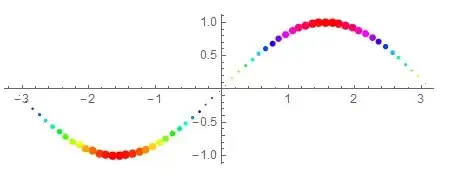

data = Table[{x, Sin[x]}, {x, -Pi, Pi, 0.1}];
Graphics[{Hue[#2], PointSize[Abs[#2]/50], Point[{#1, #2}]} & @@@ data,
  Axes -> True]

enter image description here

answered Sep 28 '14 at 17:22

Basheer Algohi

19,917
1
31
78

score 8 · Accepted Answer · answered Sep 28 '14 at 15:46

8

Your forth input form is not three sets of points but rather one set in {x, y} form. Adding an additional set of brackets gives the output you desire:

ListPlot[{{{1, 0.1}}, {{2, 0.2}}, {{3, 0.3}}},
 PlotStyle -> (PointSize /@ {Small, Medium, Large}),
 PlotRange -> {{0, 3.1}, Automatic}]

enter image description here

answered Sep 28 '14 at 15:46

Mr.Wizard

271,378
34
587
1,371

Ah! Yet another mystery revealed as not a mystery. Thank you. – Jagra Sep 28 '14 at 15:51

eldo · Answer 3 · 2014-09-29T12:44:41.413

8

Just for fun

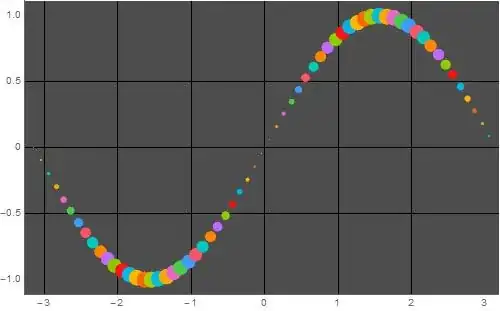

data = Table[{x, Sin[x]}, {x, -Pi, Pi, 0.1}];

ListPlot[List /@ data,
 GridLinesStyle -> Black,
 ImageSize -> 500,
 PlotStyle -> PointSize /@ (Abs[Last /@ data]/30),
 PlotMarkers -> None,
 PlotTheme -> "Marketing"]

enter image description here

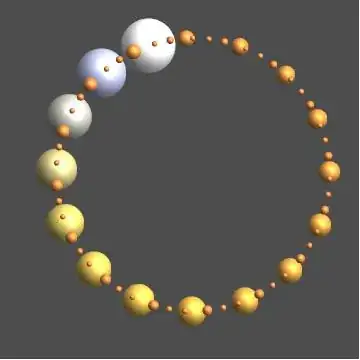

BubbleChart[Table[{Sin[2 x], Cos[2 x], Exp[x]}, {x, -2 Pi, 2 Pi, 0.2}],
 ColorFunction -> "BeachColors",
 Frame -> False,
 GridLines -> None,
 PlotTheme -> "Marketing"]

enter image description here

edited Sep 29 '14 at 12:44

answered Sep 28 '14 at 16:32

eldo

67,911
5
60
168

What is the pretty thing Mr.Wizard -:) – Basheer Algohi Sep 28 '14 at 17:20
@Mr.Wizard LOL, "circus caterpillar" is a nice notion of what I wanted to create. But, seriously, I just felt that BubbleChart is a tiny bit underrepresented at SE :) – eldo Sep 28 '14 at 20:26

score 5 · Answer 4 · answered Sep 28 '14 at 21:02

An alternative to breaking the data into individual elements and using different PlotStyles for each element is to wrap individual elements with Style:

data = {0.1, 0.2, 0.3};
colors = {Red, Green, Blue};
pointsizes = PointSize /@ {.06, Medium, Large};

You can apply styling directives to individual elements in several ways:

styleddata1 = Style @@@ Thread[{data, colors, pointsizes}];
styleddata2 = Thread[Style[data, colors, pointsizes]];
styleddata3 = MapThread[Style, {data, colors, pointsizes}];

ListPlot[#, PlotRange -> {{0, 3.1}, {0, Automatic}}, ImageSize -> 350] & /@
    {styleddata1, styleddata2, styleddata3} // Row

enter image description here

I like to use Style too. For some reason it didn't occur to me to use it here. +1 — Mr.Wizard, Sep 29 '14 at 02:39
