Changing the width of BarLegend with Contour argument

Question

Bug introduced in 10.0.2 or ealier and persisting through 11.0.1 or later

Is it possible to change the aspect ratio of the BarLegend in Mathematica?

The option LegendMarkerSize, in my case below, only changes the overall length of the bar.

So, for the example image below, how can I make the colour bar wider? Note that because of the contours argument, using LegendMarkerSize -> {300, 300} has no effect.

BarLegend[{"Rainbow", {0.0, 1.0}}, 20, LegendMarkerSize -> 300,
 LegendLabel -> Style["Intensity", Bold, FontSize -> 14],
 LabelingFunction -> (Style[NumberForm[#, {Infinity, 1}],
     FontSize -> 12] &)]

enter image description here

score 10 · Answer 1 · answered Nov 04 '14 at 13:53

10

If you look under the documentation for LegendMarkerSize, you will see it accepts values of the form: {w, h}. So, you can specify the width, for example

BarLegend["Rainbow", LegendMarkerSize -> {100, 100}]

enter image description here

answered Nov 04 '14 at 13:53

rcollyer

33,976
7
92
191

2

Doesn't work with the OP's case: http://i.stack.imgur.com/uWMqG.png. Seems like a bug to me. – Öskå Nov 04 '14 at 13:56
@Öskå its the contours (2nd argument) that is doing it. Reporting it. – rcollyer Nov 04 '14 at 14:05
I figured it was the second argument indeed, thanks for reporting it. – Öskå Nov 04 '14 at 14:06
Yes, sorry, meant to clarify but got called away - I did try these options but couldn't get it to work. Thanks! – dr.blochwave Nov 04 '14 at 16:37

kglr · Accepted Answer · 2018-01-18T08:25:16.013

The width of BarLegend is hard-coded to 15 printer points in the functions Legending`LegendDump`iColorGradientLegend and Legending`LegendDump`iColorBandLegend. We can post-process the BarLegend output to change this number:

ClearAll[makeWide]
makeWide[w_: 30] := RawBoxes[ToBoxes[#] /. {15/2 | 7.5 -> w/2,
   -15/2 | (-7.5) -> -w/2}] &;

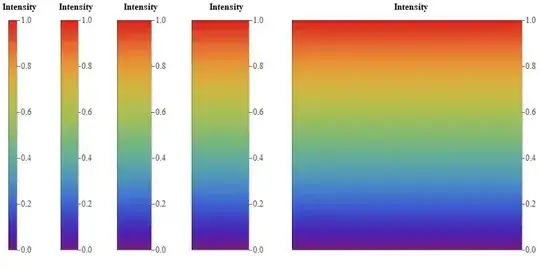

Examples:

bl = BarLegend[{"Rainbow", {0.0, 1.0}}, 30, LegendMarkerSize -> 400,
   LegendLabel -> Style["Intensity", Bold, FontSize -> 14],
   "LabelingFunction" -> (Style[NumberForm[#, {Infinity, 1}], FontSize -> 15] &)] ;

Row[{bl, makeWide[] @ bl, makeWide[60] @ bl, makeWide[100] @ bl, makeWide[400] @bl },
 Spacer[20]]
