How to make an octahedron 3-compound with holes?

Question

I would like to remove facets from an octahedron 3-compound - like in the picture below.

octahedron 3-compound with holes

I tried to combine these two graphics:

PolyhedronData["OctahedronThreeCompound"]

and

Graphics3D[{Opacity[0], EdgeForm[Thickness[.03]],
           {PolyhedronData["OctahedronThreeCompound", "Faces"]}}]

but I failed - any tips on how to get the desired result?

Can you be a bit more specific? PolyhedronData gets you the image, and the documentation shows how one can extract vertices. What is it you want to do and please show what you have tried. — bobthechemist, Nov 20 '14 at 22:57
I was sure this was a duplicate of an older question, but it's actually not... — , Nov 21 '14 at 18:09

score 7 · Answer 1 · edited May 18 '16 at 08:50

You can't get what you want with EdgeForm[Thickness[.03]], that's not what EdgeForm is meant for (that is, styles for the 1-dimensional edges).

Here is a quick solution based on post-processing:

Manipulate[
    Normal[PolyhedronData["OctahedronThreeCompound", "Faces"]] /.
            p : Polygon[__] :> (
                    p /. pts : {{_?NumericQ, _, _}, __} :>
                            Module[{cent, innervtx},
                                cent = Mean[pts];
                                innervtx = {1 - δ, δ}.{#, cent} & /@ pts;
                                Join[pts, pts[[{1}]], innervtx, innervtx[[{1}]]]
                                ]
                    ) // Graphics3D[{FaceForm[White], EdgeForm[Blue], #}] &,
    {{δ, .1}, .01, .99}]

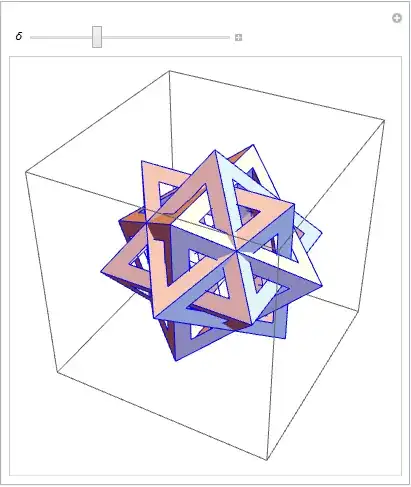

hollowed OctahedronThreeCompound

@chris If one day we have 3D displays and 3D layout web fashion :) — Silvia, Nov 22 '14 at 08:43

score 3 · Answer 2 · edited Apr 13 '17 at 12:55

Using Heike's reimplementation of the old routine PerforatePolygons[]:

PerforatePolygons[PolyhedronData["OctahedronThreeCompound"], 3/4]

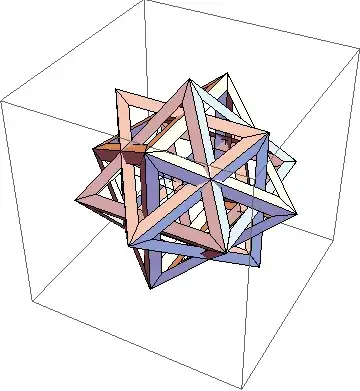

octahedron 3-compound with hollowed-out faces

Now, here is a Texture[]-based dirty trick:

With[{r = 3/4 (* size of hole *)},
     hole = First[ImageData[Image[Graphics[
                  {Polygon[CirclePoints[{1, -π/6}, 3]],
                   {White, Polygon[CirclePoints[{r, -π/6}, 3]]}},
                  PlotRangePadding -> None]], Interleaving -> False]]];

tex = Transpose[ConstantArray[1 - hole, 4], {3, 1, 2}];

Graphics3D[Prepend[
           Append[#, VertexTextureCoordinates -> {{0, 0}, {1, 0}, {1/2, 1}}] & /@
           First[Normal[N[PolyhedronData["OctahedronThreeCompound", "Faces"]]]],
           Texture[tex]], Boxed -> False]

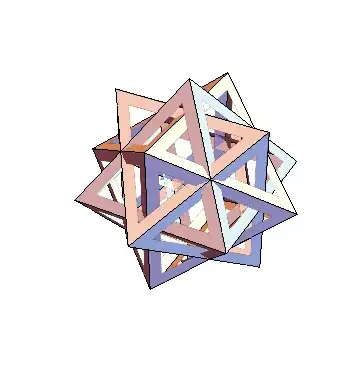

Look Ma, holes!

The Texture based way is brilliant! – Silvia Oct 20 '15 at 02:18 — Silvia, Oct 20 '15 at 02:18
