How do I add contour labels to contour plot?

Question

I tried

ContourPlot[f[x, y], {x, -2, 2}, {y, -2, 2}, ContourLabels->automatic]

, but it messes up the contourplot. How can I just add values to the contours for

ContourPlot[f[x, y], {x, -2, 2}, {y, -2, 2}]

?

Answer 1

Looking at the rather dismal automatic placement of contour labels in the example Sin[x y], I thought it may be worth pointing out that you can often get better results with customized placement.

For this, I devised a function burnTooltip in this answer. Here is how to use it for this question:

Options[burnTooltips] = {ImageSize -> 360,
   "LabelFunction" -> (Framed[#, FrameStyle -> None,
       RoundingRadius -> 8, Background -> RGBColor[1, .8, .4]] &)};

burnTooltips[plot_, opt : OptionsPattern[]] :=
 DynamicModule[{ins = {}, wrapper = OptionValue["LabelFunction"],
   toolRule =
    Function[{arg},
     Tooltip[t__] :>
      Button[Tooltip[t],
       AppendTo[arg,
        Inset[wrapper[Last[{t}]], MousePosition["Graphics"]]]],
     HoldAll]},
  EventHandler[
   Dynamic@Show[plot /. toolRule[ins], Graphics@ins,
     ImageSize -> OptionValue[ImageSize]], {"MouseUp",
     2} :> (toolRule = {} &)]]

f[x_, y_] := Sin[x y]
p = ContourPlot[f[x, y], {x, -2, 2}, {y, -2, 2},
   ContourLabels -> Automatic];

burnTooltips[p]

When you execute the last line, the plot appears and tooltips will be shown when you hover over the contours. If you see a tooltip in a location that you like, click the mouse. Repeat this for as many labels as you need. Every time you click, a new label will be added permanently at the mouse position. When you're done, you have to right-click on the plot. That will end the dynamic interactivity and burn the existing labels in place.

Answer 2

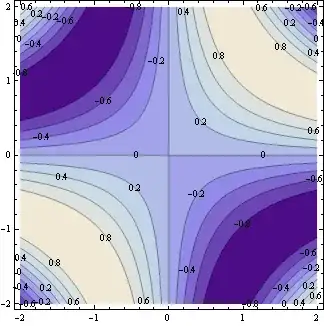

f[x_, y_] := Sin[x y]
ContourPlot[f[x, y], {x, -2, 2}, {y, -2, 2}, ContourLabels -> All]

Or if you want only some of them:

f[x_, y_] := Sin[x y]
ContourPlot[f[x, y], {x, -2, 2}, {y, -2, 2},
            ContourLabels -> (If[Abs@#3 <= .25, Text[#3, {#1, #2}]] &)]
