Help with building matrices

Question

I am a complete beginner in Mathematica and I have a small problem.

enter image description here

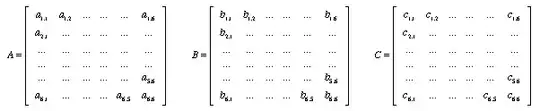

I have this three matrices (A,B and C) and with them I have to build larger matrix M which looks like this.

enter image description here

What would be the easiest way to do this Mathematica?

So far I have this:

A = Table[Subscript[a, i, j], {i, 6}, {j, 6}];
B = Table[Subscript[b, i, j], {i, 6}, {j, 6}];
C = Table[Subscript[c, i, j], {i, 6}, {j, 6}];

Useful functions here: Plus, Span, ArrayFlatten, ConstantArray. — Sjoerd C. de Vries, Dec 15 '14 at 18:47
Welcome to Mathematica.SE! I suggest the following: 1) As you receive help, try to give it too, by answering questions in your area of expertise. 2) Read the [faq]! 3) When you see good questions and answers, vote them up by clicking the gray triangles, because the credibility of the system is based on the reputation gained by users sharing their knowledge. Also, please remember to accept the answer, if any, that solves your problem, by clicking the checkmark sign! — Dr. belisarius, Dec 15 '14 at 19:05

score 5 · Accepted Answer · answered Dec 15 '14 at 19:12

I think that this kind of step-by-step assignment is probably the easiest for you to follow and apply generally at this time:

aa = Table[Subscript[a, i, j], {i, 6}, {j, 6}];
bb = Table[Subscript[b, i, j], {i, 6}, {j, 6}];
cc = Table[Subscript[c, i, j], {i, 6}, {j, 6}];

new = ConstantArray[0, {12, 12}];

new[[1 ;; 3, 1 ;; 6]] = aa[[1 ;; 3]];
new[[1 ;; 3, 1 ;; 3]] += cc[[1 ;; 3, 1 ;; 3]];
new[[1 ;; 3, 4 ;; 6]] += bb[[1 ;; 3, 4 ;; 6]];
new[[4 ;; 6, 4 ;; 6]] = cc[[4 ;; 6, 4 ;; 6]];
new[[7 ;; 9, 1 ;; 3]] = aa[[4 ;; 6, 4 ;; 6]] + bb[[1 ;; 3, 1 ;; 3]];
new[[7 ;; 9, 4 ;; 6]] = bb[[1 ;; 3, 1 ;; 3]] + cc[[1 ;; 3, 1 ;; 3]];
new[[10 ;; 12, 10 ;; 12]] = aa[[4 ;; 6, 1 ;; 3]];

new // MatrixForm

_{$\left(
\begin{array}{cccccccccccc}
a_{1,1}+c_{1,1} & a_{1,2}+c_{1,2} & a_{1,3}+c_{1,3} & a_{1,4}+b_{1,4} & a_{1,5}+b_{1,5} & a_{1,6}+b_{1,6} & 0 & 0 & 0 & 0 & 0 & 0 \\
a_{2,1}+c_{2,1} & a_{2,2}+c_{2,2} & a_{2,3}+c_{2,3} & a_{2,4}+b_{2,4} & a_{2,5}+b_{2,5} & a_{2,6}+b_{2,6} & 0 & 0 & 0 & 0 & 0 & 0 \\
a_{3,1}+c_{3,1} & a_{3,2}+c_{3,2} & a_{3,3}+c_{3,3} & a_{3,4}+b_{3,4} & a_{3,5}+b_{3,5} & a_{3,6}+b_{3,6} & 0 & 0 & 0 & 0 & 0 & 0 \\
0 & 0 & 0 & c_{4,4} & c_{4,5} & c_{4,6} & 0 & 0 & 0 & 0 & 0 & 0 \\
0 & 0 & 0 & c_{5,4} & c_{5,5} & c_{5,6} & 0 & 0 & 0 & 0 & 0 & 0 \\
0 & 0 & 0 & c_{6,4} & c_{6,5} & c_{6,6} & 0 & 0 & 0 & 0 & 0 & 0 \\
a_{4,4}+b_{1,1} & a_{4,5}+b_{1,2} & a_{4,6}+b_{1,3} & b_{1,1}+c_{1,1} & b_{1,2}+c_{1,2} & b_{1,3}+c_{1,3} & 0 & 0 & 0 & 0 & 0 & 0 \\
a_{5,4}+b_{2,1} & a_{5,5}+b_{2,2} & a_{5,6}+b_{2,3} & b_{2,1}+c_{2,1} & b_{2,2}+c_{2,2} & b_{2,3}+c_{2,3} & 0 & 0 & 0 & 0 & 0 & 0 \\
a_{6,4}+b_{3,1} & a_{6,5}+b_{3,2} & a_{6,6}+b_{3,3} & b_{3,1}+c_{3,1} & b_{3,2}+c_{3,2} & b_{3,3}+c_{3,3} & 0 & 0 & 0 & 0 & 0 & 0 \\
0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & a_{4,1} & a_{4,2} & a_{4,3} \\
0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & a_{5,1} & a_{5,2} & a_{5,3} \\
0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & a_{6,1} & a_{6,2} & a_{6,3} \\
\end{array}
\right)$}

Note: I renamed A, B, C to aa, bb, cc because you should avoid starting user Symbols with capital letters; for example C is as protected System` Symbol:

Set::wrsym: Symbol C is Protected. >>

andre314 · Answer 2 · 2014-12-17T15:59:23.903

A = Table[Subscript[a, i, j], {i, 6}, {j, 6}];
B = Table[Subscript[b, i, j], {i, 6}, {j, 6}];
Cc = Table[Subscript[c, i, j], {i, 6}, {j, 6}];

m0 = ConstantArray[0, {3, 3}];

M = ArrayFlatten[{

   {A[[;; 3, ;; 3]] + Cc[[;; 3, ;; 3]]   ,A[[;; 3, 4 ;; 6]] + B[[;; 3, 4 ;; 6]], m0, m0},
   {m0                                   , Cc[[4 ;; 6, 4 ;; 6]]                , m0, m0},
   {A[[4 ;; 6, 4 ;; 6]] + B[[;; 3, ;; 3]],B[[;; 3, ;; 3]] + Cc[[;; 3, ;; 3]]   , m0, m0},
   {m0                                   , m0                                  , m0, A[[4 ;; 6, ;; 3]]}

        }];

Or, equivalently :

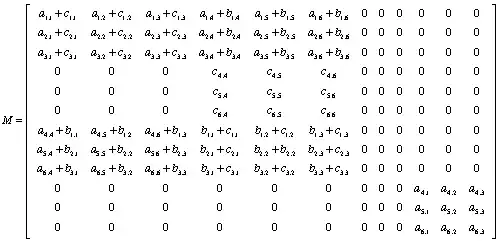

enter image description here
