3

Using the "Image" property of LatticeData, I can generate representation of lattice structures (like the first basic example did). But it seems that the atom size is a constant, can I enlarge it?

Maybe I want a simple expression of something like this. This demonstration also has the limitation that atom size cannot be larger than $1/2$ of face diagonal.

J. M.'s missing motivation
  • 124,525
  • 11
  • 401
  • 574
Richard Cox
  • 305
  • 1
  • 8
  • 2
    A replacement rule such as LatticeData[lattice, "Image"] /. Sphere[cents_, r_] :> Sphere[cents, 2 r] might work. – J. M.'s missing motivation May 26 '15 at 03:59
  • @Guesswhoitis. Yes, it works. I'd like to endorse your answer if you want to write it down. I was wondering why this transformation on Sphere works. Is Sphere a property of LatticeData? I can't find it in the documentation. Sorry if this is a stupid question. I'm new to Mathematica. Thank you! – Richard Cox Jun 08 '15 at 04:03
  • For a number of reasons (e.g. no computer), I do not have the time to write an answer, so I'll have to ask you to answer your own question. To see why it works, have a look at InputForm[LatticeData[(* stuff *)]] to see what it's made of, and you should be able to figure out why the dilation replacement did what it did. – J. M.'s missing motivation Jun 08 '15 at 04:22
  • @Guesswhoitis. I got it! Thanks again. I'll write an answer later tomorrow. – Richard Cox Jun 08 '15 at 04:24

1 Answers1

4

Guesswhoitis gave a nice solution to this problem on the comments above:

LatticeData[lattice, "Image"] /. Sphere[cents_, r_] :> Sphere[cents, 2 r]

Specifically, I did

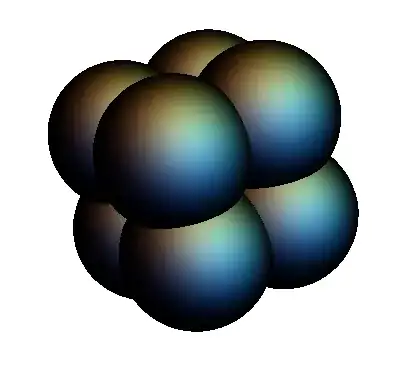

LatticeData["SimpleCubic", "Image"] /. Sphere[cents_, r_] -> Ball[cents, 24 r]

enter image description here

(I also transformed spheres to balls here). It works because if you take a look at the InputForm[] of LatticeData[lattice, "Image"], it's something like this:

Graphics3D[
    { GraphicsComplex[{{-1, -1, -1}, {-1, -1, 1}, {-1, 1, -1}, {-1, 1, 1}, {1, -1, -1}, {1, -1, 1}, {1, 1, -1}, {1, 1, 1}},
    { EdgeForm[GrayLevel[0.8]], Opacity[0.1], Polygon[{{8, 4, 2, 6}, {8, 6, 5, 7}, {8, 7, 3, 4}, {4, 3, 1, 2},
    {1, 3, 7, 5}, {2, 1, 5, 6}}]}],
    { GrayLevel[0], Specularity[GrayLevel[1], 5],
    { Sphere[{-1, -1, -1}, 1.44], Sphere[{-1, -1, 1}, 1.44], Sphere[{-1, 1, -1}, 1.44],
    Sphere[{-1, 1, 1}, 1.44], Sphere[{1, -1, -1}, 1.44], Sphere[{1, -1, 1}, 1.44],
    Sphere[{1, 1, -1}, 1.44], Sphere[{1, 1, 1}, 1.44]}}},
    Boxed -> False, ViewPoint -> {4, 5/3, 1}
]

And you can transform the spheres, manipulating their radii and positions.
