Not seeing line defined in an Epilog option

Question

In the following code, the line defined in Epilog option of my 2nd parametric plot doesn't show up in the content pane of my Manipulate expression.

ClearAll[θ1, θ2];
m1 = 1;
m2 = 1;
lc1 = 1;
lc2 = 1;
l1 = 2;
l2 = 2;
Ix2 = 1;
Iy2 = 1;
Iz1 = 1;
Iz2 = 1;

m11[t_] :=
  m1*(lc1)^2 + m2*(l1 + lc2*Cos[θ2[t]])^2 + Ix2*(Sin[θ2[t]])^2 +
    Iy2*(Cos[θ2[t]])^2 + Iz1;
m22[t_] := m2*(lc2)^2 + Iz2;
V11[t_] := 0;
V12[t_] :=
  (-2*m2*lc2*(l1 + lc2*Cos[θ2[t]])*Sin[θ2[t]] +
     2 (Ix2 - Iy2)*Sin[θ2[t]]*Cos[θ2[t]])*θ1'[t];
V21[t_] :=
  (m2*lc2*(l1 + lc2*Cos[θ2[t]])*Sin[θ2[t]] -
    (Ix2 - Iy2)*Sin[θ2[t]]*Cos[θ2[t]])*θ1'[t];
V22[t_] := 0;
M = {{m11[t], 0}, {0, m22[t]}};
V = {{V11[t], V12[t]}, {V21[t], V22[t]}};
G = {{0, 0}, {0, 0}};
initu = q[0] == {{0}, {.1}};
initv = q'[0] == {{0}, {0}};
q[t_] := {θ1[t], θ2[t]};
sol =
  First @
    NDSolve[{
      Thread[M.q''[t] + V.q'[t] + G.q[t] == {Sin[2 t], Sin[2 t]}],
      initu, initv}, q[t], {t, 0, 100}];

Plot[{θ1[t] /. sol, θ2[t] /. sol}, {t, 0, 100}, PlotTheme -> "Detailed"]

Manipulate[
  Show[
    ParametricPlot[{Evaluate[{l1*Cos[θ1[t]], l1*Sin[θ1[t]]} /. sol]}, {t, 0, a},
      AspectRatio -> 1,
      PlotRange -> {{-5, 5}, {-5, 5}},
      Epilog ->
        Line[{{0, 0}, {l1*Cos[θ1[t]], l1*Sin[θ1[t]]}}]],
    ParametricPlot[{
      Evaluate[{l1*Cos[θ1[t]] + l2*Cos[θ1[t] + θ2[t]],
        l1*Sin[θ1[t]] + l2*Sin[θ1[t] + θ2[t]]} /. sol]},
      {t, 0, a},
      AspectRatio -> 1,
      PlotRange -> {{-5, 5}, {-5, 5}},
      Epilog ->
        Line[{{0, 0},
              {l1*Cos[θ1[t]] + l2*Cos[θ1[t] + θ2[t]],
               l1*Sin[θ1[t]] + l2*Sin[θ1[t] + θ2[t]]}}]]],
  {a, 0.001, 100}]

When you Show multiple plots, only the first plots Epilog gets used. — george2079, Jul 14 '15 at 21:40
…so, put the Epilog setting in Show[] and not in any of the inner plots. — J. M.'s missing motivation, Jul 14 '15 at 21:48
This is listed unde "Possible Issues" in the Show documentation page: "Show uses the options from the first graphic:" — Sjoerd C. de Vries, Jul 14 '15 at 23:19
with change epilog position it dont work too!!! it cant recognize teta1 and teta2 that i calculate from ndsolve. i also cant use evaluate!!! — Farshid, Jul 14 '15 at 23:32
if i remove show and just use from ParametricPlot it doesn't work too.i want draw robot links. parametric plot without Epilog->line shows end point of each links of robot. i want to show each robot link too. — Farshid, Jul 14 '15 at 23:35
In your Epilog, use Epilog -> Line[{...} /. sol] and theta will be replaced by your solution. (I hope you realize the ... means you should copy your code into it.) — Michael E2, Jul 15 '15 at 00:42
@MichaelE2 I see that you closed this question as a duplicate of (128). I feel that while that Q&A explains this it does not provide a general solution, which I tried to to with my answer here. I would like to reopen this question but I do not wish to act alone. Please read these questions again and tell me if you feel this argument has merit. — Mr.Wizard, Jan 13 '17 at 18:21
@Mr.Wizard I see your point about your answer. I don't remember now what I thought, but I probably I decided based on the question itself. My feeling is that your answer is languishing here, with its strengths hidden by the TL context & focus of this question. It seems impossible to improve this question without altering too greatly given the accepted answer. What if you or I ask a different question and you post your answer to that? E.g. How to combine plots and preserve the Epilog/Prolog of each? I think that would be more helpful to site visitors. Other solutions may be offered as well. — Michael E2, Jan 14 '17 at 02:14
@Mr.Wizard I drafted a question here. If you think it's a good way to proceed, I can undelete it. — Michael E2, Jan 14 '17 at 19:46

score 4 · Accepted Answer · answered Jul 15 '15 at 04:08

I couldn't get your code to show anything as posted. After quite a bit of debugging I came up with this:

m1 = 1;
m2 = 1;
lc1 = 1;
lc2 = 1;
l1 = 2;
l2 = 2;
Ix2 = 1;
Iy2 = 1;
Iz1 = 1;
Iz2 = 1;

m11[t_] :=
  m1*(lc1)^2 + m2*(l1 + lc2*Cos[θ2[t]])^2 + Ix2*(Sin[θ2[t]])^2 +
    Iy2*(Cos[θ2[t]])^2 + Iz1;
m22[t_] := m2*(lc2)^2 + Iz2;
V11[t_] := 0;
V12[t_] :=
  (-2*m2*lc2*(l1 + lc2*Cos[θ2[t]])*Sin[θ2[t]] +
     2 (Ix2 - Iy2)*Sin[θ2[t]]*Cos[θ2[t]])*θ1'[t];
V21[t_] :=
  (m2*lc2*(l1 + lc2*Cos[θ2[t]])*Sin[θ2[t]] -
    (Ix2 - Iy2)*Sin[θ2[t]]*Cos[θ2[t]])*θ1'[t];
V22[t_] := 0;
M = {{m11[t], 0}, {0, m22[t]}};
V = {{V11[t], V12[t]}, {V21[t], V22[t]}};
G = {{0, 0}, {0, 0}};
initu = q[0] == {{0}, {.1}};
initv = q'[0] == {{0}, {0}};
q[t_] := {θ1[t], θ2[t]};

ClearAll[θ1, θ2];
sol = First@
   NDSolve[{M.q''[t] + V.q'[t] + G.q[t] == {Sin[2 t], Sin[2 t]},
     initu, initv}, q[t], {t, 0, 100}];

θ1 = First @* (Head @ sol[[1, 2]]);
θ2 = First @* (Head @ sol[[2, 2]]);

Plot[{θ1[t], θ2[t]}, {t, 0, 100}, PlotTheme -> "Detailed"]

plot

Manipulate[
  Show[
    ParametricPlot[{l1*Cos[θ1[t]], l1*Sin[θ1[t]]}, {t, 0, a},
      PlotStyle -> Blue],
    ParametricPlot[
      {l1*Cos[θ1[t]] + l2*Cos[θ1[t] + θ2[t]], l1*Sin[θ1[t]] + l2*Sin[θ1[t] + θ2[t]]},
      {t,0, a},
      PlotStyle -> Red],
    PlotRange -> {{-5, 5}, {-5, 5}},
    Epilog -> {
      Blue, Line[{{0, 0}, {l1*Cos[θ1[a]], l1*Sin[θ1[a]]}}],
      Red, Line[{{0, 0},
                 {l1*Cos[θ1[a]] + l2*Cos[θ1[a] + θ2[a]],
                  l1*Sin[θ1[a]] + l2*Sin[θ1[a] + θ2[a]]}}]}],
  {a, 1, 100, 1, Appearance -> "Labeled"}]

demo

score 4 · Answer 2 · answered Jul 15 '15 at 08:50

As noted in the comments only the first Epilog option will be used by Show. You could instead use a function that combines Prologs and Epilogs manually, if that is desired.

myShow[gr__] :=
 Show[gr,
  Join @@ Map[Options[#, {Prolog, Epilog}] &, {gr}] // Merge[List] // Normal
 ]

Example:

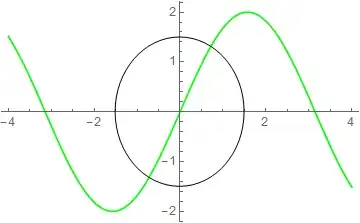

g1 = Plot[Style[2 Sin[x], Green], {x, -4, 4}, Epilog -> Circle[{0, 0}, 1.5]]

g2 = ParametricPlot[{Sin[u], Sin[2 u]}, {u, 0, 2 Pi},
  Epilog -> {Orange, Disk[{0, 0}, 1, #] & /@ {{0.4, 0.8}, {2.4, 2.8}}}]

enter image description here

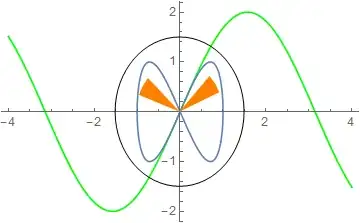

myShow[g1, g2]

enter image description here
