How can I draw the Olympic rings with Mathematica?

Question

How can I draw the 5 interlocking Olympic rings with Mathematica?

Olympic rings

Edit

Hard choice, but some pretty cool answers here. I didn't have 3D answers in mind when I posted the question, but without a doubt, they look much better than the 2D. Very subjective choice for the selected answer, but I do like @cormullion's answer.

FWIW... my prof's back on Wednesday - I'll ask him if we can include calculations on Olympicene in my project :) But on the question, mind giving a try yourself? Make sure you get the colors right ;) — CHM, Jul 30 '12 at 23:29
Sorry, too easy ... Import["http://i.stack.imgur.com/fJthQ.png"] — Dr. belisarius, Jul 31 '12 at 00:20
@R.M I thought you could do it yourself, but if you need help ExportString [Import["http://i.stack.imgur.com/fJthQ.png"], "SVG"] :D — Dr. belisarius, Jul 31 '12 at 00:51
@mike Thanks for that - as a Londoner, I'm dead chuffed ... :) — cormullion, Aug 01 '12 at 07:14
@cormullion wish I was over there to soak it all up. Could you try doing a version using Glow? — Mike Honeychurch, Aug 01 '12 at 07:49
I had a quick go, but it did nothing I liked. But I tried with a few spotlights, which looked neat. — cormullion, Aug 01 '12 at 16:27

jVincent · Answer 1 · 2012-07-31T15:37:21.917

69

A rather crude way of accomplishing this is just to draw multiple shapes layered such that the rings interlock.

ringSegment[mid_, deg_, color_] := {
  Thickness[0.05],CapForm["Butt"], White, Circle[mid, 1, deg], Thickness[0.03],
  RGBColor @@ (color/255), Circle[mid, 1, deg + {-0.1, 0.1}]}

olblue   = {0, 129, 188};
olyellow = {255, 177, 49};
olBlack  = {35, 34, 35};
olGreen  = {0, 157, 87};
olRed    = {238, 50, 78};

Graphics @ GraphicsComplex[
  {{2.5, 0}, {1.3, -1}, {0, 0}, {5, 0}, {3.8, -1}},
  ringSegment @@@
   {{1, {0, 5/4 π}, olBlack},
    {2, {0, π}, olyellow},
    {3, {0, 2 π}, olblue},
    {2, {-π 9/8, 1/4 π}, olyellow},
    {4, {0, 5/4 π}, olRed},
    {5, {0, 7/8 π}, olGreen},
    {1, {5/4 π, 5/2 π}, olBlack},
    {5, {7/8 π, 2 π}, olGreen},
    {4, {-3/4 π, 1/4 π}, olRed}}
 ]

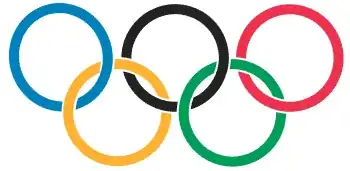

OL ring computed using the given code

edited Jul 31 '12 at 15:37

answered Jul 30 '12 at 23:59

jVincent

14,766
1
42
74

1

This is much better than my attempt. I forgot about the third argument to Circle. – Verbeia Jul 31 '12 at 00:14
this works fine on my computer. Perhaps a version 7 issue?? – Mike Honeychurch Jul 31 '12 at 00:21
jVincent I edited your answer with a rewrite using GraphicsComplex. If you don't care for it I'll post it as a separate answer. – Mr.Wizard Jul 31 '12 at 00:41
@Mike yes, but I edited the answer to make it compatible. – Mr.Wizard Jul 31 '12 at 00:42
@Mr.Wizard Thanks for the rewrite :). I much prefer it with graphicscomplex, but just didn't think about it initially. Am I correct in understanding that version 7 doesn't support [Pi] and that this was the problem? – jVincent Jul 31 '12 at 08:21
1

No, \[Pi] is just fine, I simply prefer the readability of π. The problem for v7 was having {7/8 π, 0} instead of {0, 7/8 π}; it wants them ordered. – Mr.Wizard Jul 31 '12 at 11:33
Annulus primitive with EdgeForm could be used instead of two circles in ringSegment. – BoLe Aug 26 '16 at 10:09
Great answer !! – james Mar 30 '18 at 06:32

score 34 · Answer 2 · answered Jul 31 '12 at 04:01

34

Why not create the 3D model of which this is a stylized representation?

To do so, we need to construct a 3D ring. Let's thicken a polygonal approximation to a circle:

ring[center_, normal_] :=
  With[{a = axes[normal], radius = 1, thickness = 0.25},
   Tube[center + radius {Cos[#], Sin[#]}.a & /@ Range[0, 2 Pi, 2 Pi / 72], thickness/2]];

The auxiliary function axes is a quick-and-dirty way to obtain two orthonormal axes perpendicular to a particular direction. (It will not work in directions parallel to the y axis.) This makes it simpler and more natural to describe a 3D circle in terms of its center and a vector perpendicular to its plane:

axes[normal_] :=
  Module[{x = {-normal[[3]], 0, normal[[1]]}, y},
   y =  Cross[normal, x]; {x / Norm[x], y / Norm[y]}];

Specify the positions of the centers and tilt the top row one way, the bottom row another:

dy = 2.4; offset = 0.25;
rings = Join[
   ring[#, {0, -offset, 1}] & /@ {{0, 0, 0}, {0, dy, 0}, {0, 2 dy, 0}},
   ring[#, {0, offset, 1}] & /@ {{Sqrt[3]/2, dy/2, 0}, {Sqrt[3]/2, 3 dy/2, 0}}];

Oh yes, the colors:

colors = {Cyan, Black, Red, Yellow, Green};

Render the rings:

Graphics3D[Riffle[colors, rings], Boxed -> False,
 PlotRange -> {{-2, 4}, {-2, 3 dy}, {-2 offset, 2 offset}}]

Olympic rings

Now you can play with them in three dimensions!

Olympic rings 2

answered Jul 31 '12 at 04:01

whuber

20,544
2
59
111

If desired, one could do Riffle[Glow /@ colors, rings]. – J. M.'s missing motivation Jul 31 '12 at 10:44
@J.M. That's a cool effect: to make it look right, you have to (1) use the correct colors (as in jVincent's reply) and (2) turn the lighting off (Lighting->None in Graphics3D). – whuber Jul 31 '12 at 12:43
Oh, right. I use Lighting -> "Neutral" myself when using Glow[], but that works, too. – J. M.'s missing motivation Jul 31 '12 at 12:44
that 3d model needs some anti-aliasing... badly. – Trevor Boyd Smith Jul 31 '12 at 16:37
1

@Trevor The model needs no anti-aliasing; in fact, the concept doesn't even apply. But for sure the rendering used could use some anti-aliasing. Some good solutions have been posted at http://mathematica.stackexchange.com/questions/198/antialiasing-in-3d. – whuber Jul 31 '12 at 16:41
Oh, I forgot: x / Norm[x] is the same as Normalize[x]. – J. M.'s missing motivation Aug 01 '12 at 11:20

Verbeia · Answer 3 · 2012-07-31T13:22:35.947

3 D approach

It would be possible to do this using ParametricPlot3D, very slight variation in the $z$-direction, and a suitable ViewPoint:

Stealing jVincent's colors:

olblue = RGBColor[{0, 129, 188}/255.];
olyellow = RGBColor[{255, 177, 49}/255.];
olBlack = RGBColor[{35, 34, 35}/255.];
olGreen = RGBColor[{0, 157, 87}/255.];
olRed = RGBColor[{238, 50, 78}/255.];

olyrings =
 ParametricPlot3D[{{Cos[t], Sin[t], 0.325 Sin[t + Pi/4] - 0.035},
 (* blue *){Cos[t], Sin[t], 0.325 Sin[t + Pi/4]},
   {3/4 Pi + Cos[t], Sin[t], 0.04 Sin[t + Pi/4] - 0.005},
 (*  black *){3/4 Pi + Cos[t], Sin[t],
    0.04 Sin[t + Pi/4]}, {3/8 Pi + Cos[t],
    Sin[t] - 9/8, -0.12 Sin[Pi/4 - t] - 0.05},
 (* yellow *){3/8 Pi + Cos[t],
    Sin[t] - 9/8, -0.12 Sin[Pi/4 - t]}, {3/2 Pi + Cos[t], Sin[t],
    0.005 Sin[t - Pi/4] - 0.001},
 (* red *){3/2 Pi + Cos[t], Sin[t],
    0.005 Sin[t - Pi/4]}, {9/8 Pi + Cos[t], Sin[t] - 9/8,
    0.01 Sin[t - Pi/4] - 0.001},
 (* green *){9/8 Pi + Cos[t], Sin[t] - 9/8, 0.01 Sin[t - Pi/4]}},
 {t, 0, 2 Pi}, Axes -> False, BaseStyle -> AbsoluteThickness[10],
  PlotStyle -> {Directive[AbsoluteThickness[14], White], olblue,
    Directive[AbsoluteThickness[14], White], olBlack,
    Directive[AbsoluteThickness[14], White], olyellow,
    Directive[AbsoluteThickness[14], White], olRed,
    Directive[AbsoluteThickness[14], White], olGreen},
  ViewPoint -> Top, ImageSize -> 350, Boxed -> False,
  PlotRangePadding -> 0.15]

enter image description here

Just going through all these answers now. Was there a 3D solution here once? — Mike Honeychurch, Aug 01 '12 at 03:50

score 27 · Answer 4 · answered Aug 01 '12 at 10:20

I tried to resist answering, but couldn't...

(* perturbed circle *)
circ = Cases[ParametricPlot3D[{Cos[t], Sin[t], Cos[3 t]},
                              {t, 0, 2 Pi}], _Line, Infinity][[1, 1]];

Graphics3D[MapThread[{Directive[Black, Glow[#3]],
    Tube[Composition[TranslationTransform[#1], RotationTransform[#2, {0, 0, 1}]] /@
         circ, 1/8]} &,
     {PadRight[{{0, 9}, {12, 0}, {24, 9}, {36, 0}, {48, 9}}/10, {5, 3}], (* centers*)
     {0, Pi/3, 0, Pi/3, 0}, (* rotations *)
     RGBColor @@@ ({{0, 129, 188}, {255, 177, 49}, {35, 34, 35},
                    {0, 157, 87}, {238, 50, 78}}/255)}], (* colors *)
     Boxed -> False, Method -> {"TubePoints" -> 30}, ViewPoint -> {0, 0, Infinity}]

Olympic logo

cormullion · Accepted Answer · 2012-07-31T16:23:47.480

23

I thought I'd better have a go at these 'sports-related celebratory circular hollow loops', despite the risk, but I couldn't get the rings to overlap properly - the brain starts to hurt after a while. Looking for shiny rings, but black doesn't shine very well...

ring = ParametricPlot3D[{Cos[t] (8 + Cos[u]), Sin[t] (8 + Cos[u]),
     Sin[u]/8}, {t, 0, 2 Pi}, {u, 0, 2 Pi}, Mesh -> None][[1]];
col = {Blue, Yellow, Black, Green, Red};
pts = {{0, 2, 0}, {2, 0, 0}, {4, 2, 0}, {6, 0, 0}, {8, 2, 0}};
rotations = {{.1, 0, 0}, {0, 0.1, 0}, {-0.2, 0.2, 0}, {.1, 0.5,
    0.5}, {0.1, -0.2, 0}};
Graphics3D[{
  Specularity[White, 30],
  Table[{col[[i]],
    Translate[
     Rotate[
      ring ,
      Pi/16,
      rotations[[i]]],
      3 pts[[i]]]}, {i, 1, 5}]}, Boxed -> False, Background -> Gray,
 ViewAngle -> 0.4, ViewPoint -> {0, 0, 3},
 ViewVertical -> {0, 1.5, 6}]

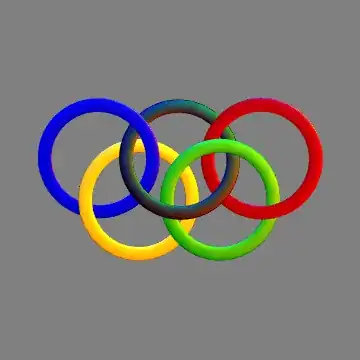

olympic rings

Edit: Better do it properly, I suppose:

ring = ParametricPlot3D[{Cos[t] (8 + Cos[u]), Sin[t] (8 + Cos[u]),
     Sin[u]/8}, {t, 0, 2 Pi}, {u, 0, 2 Pi}, Mesh -> None][[1]];
col = {Blue, Yellow, Black, Darker[Green], Red};
pts = {{0, 1.5, 0}, {2, 0, 0}, {4, 1.5, 0}, {6, 0, 0}, {8, 1.5, 0}};
rotations = {{0, 0, 1}, {-.3, .5, 1}, {-0.1, -3, 1}, {-1, 1,
    1}, {-1, -4, 1}};
Graphics3D[{
  Specularity[White, 20],
  Table[{col[[i]],
    Translate[
     Rotate[
      ring ,
      0.1,
      rotations[[i]]],
     5 pts[[i]]]}, {i, 1, 5}]}, Boxed -> False, Background -> Gray,
 ViewAngle -> 0.5, ViewPoint -> {0, 0, 3}, ViewVertical -> {0, 1, 6}]

rings better linked

edited Jul 31 '12 at 16:23

answered Jul 31 '12 at 15:15

cormullion

24,243
4
64
133

Aargh - just looked at the others more closely and I seem to have tried too hard to link the rings together... Idiot! – cormullion Jul 31 '12 at 15:24
You could use Glow[] on your colors, you know... – J. M.'s missing motivation Aug 01 '12 at 03:13
@J.M. I had a look, but it didn't do what I was expecting, which was like the neon lit effect in Illustrator. – cormullion Aug 01 '12 at 16:30
Hmm, good point. Glow[] tends to make things look flat, but if you wanted your colors to be a bit more textured, then your route is best. – J. M.'s missing motivation Aug 01 '12 at 17:01
Is there a syntax error in your second version with the less-blended colors? entering exactly is returning something about missing closing brackets, and then it doesn't produce any output. – Thomas Ward Aug 01 '12 at 17:24
@Lord, there shouldn't be a syntax error. Did you copy everything within the gray box? – J. M.'s missing motivation Aug 01 '12 at 17:30
Yes. Then i went and retyped exactly as it shows, system's still returning an error. Lemme retry and get back to you. – Thomas Ward Aug 01 '12 at 17:35
@J.M. maybe its a regression in the program, but what happened is that the system was complaining because of the extra line breaks. Removing them allows it to execute, but I say its a regression because this system isn't generating any actual graphical output... :/ – Thomas Ward Aug 01 '12 at 17:43

Mr.Wizard · Answer 6 · 2014-10-12T00:24:55.123

23

I already did a refactor for jVincent's answer, and rather than edit whuber's too I feel like posting something myself; besides my style is controversial. Here is my refactor of his answer in my own style and with my own tweaks.

ring[
  {x_, y_, z_: 0},
  {u_: 0, v_, w_: 1},
  {dy_, offset_, r_}
 ] :=
 With[{ axes = Normalize /@ {#, {u, v offset, w}\[Cross]#} &@{-w, 0, u} },
  Tube[{x, y dy, z} + {Cos@#, Sin@#}.axes & /@ Range[0, 2 Pi, 2 Pi/72], r]
 ]

param = {2.4, 0.25, 0.17};

rings =
  Join[
   ring[{0, #}, {-1}, param] & /@ {0, 1, 2},
   ring[{Sqrt[3]/2, #/2}, {1}, param] & /@ {1, 3}
  ];

colors = {Cyan, Darker@Gray, Red, Yellow, Green};

Graphics3D[
 Riffle[colors, rings],
 Boxed -> False,
 ViewPoint -> {0, 0, ∞},
 ViewVertical -> {-1, 0, 0}
]

Olympic rings

Condensed code for this specific problem. (Less flexible than above; hard coded parameters.)

ring[x_, y_, v_] :=
  Table[
    {1.2 y, -v x, 0} + {Cos@i, Sin@i}.{{0, -1, 0}, {1, 0, 1/4 - v/2}},
    {i, 0, 2 π, π/200}
  ] ~Tube~ 0.17

Graphics3D[
  Riffle[
    {Cyan, Yellow, Darker @ Gray, Green, Red},
    Array[ring[Sqrt@3/2, #, # ~Mod~ 2] &, 5, 0] ],
  Boxed -> False,
  ViewPoint -> {0, 0, ∞}
]

edited Oct 12 '14 at 00:24

answered Jul 31 '12 at 16:18

Mr.Wizard

271,378
34
587
1,371

(+1) Beautiful. – whuber Jul 31 '12 at 16:44
@whuber thanks! – Mr.Wizard Jul 31 '12 at 21:25
decisions, decisions ...I'll make a choice later today but some really great answers to this question. – Mike Honeychurch Jul 31 '12 at 23:07
#/Norm[#] & is in fact the same as Normalize. – J. M.'s missing motivation Aug 01 '12 at 09:30
@J.M. I forgot that. Thanks. Same number of keystrokes though. :-) – Mr.Wizard Aug 01 '12 at 14:01
Yes, but less baroque, no? :) – J. M.'s missing motivation Aug 01 '12 at 14:02
@J.M. yes, of course it's better. – Mr.Wizard Aug 01 '12 at 14:03

score 7 · Answer 7 · answered Oct 11 '14 at 15:37

ParametricPlot3D[{
  {4 + (3 + Cos[v]) Sin[u], 4 + (3 + Cos[v]) Cos[u],
   4 + Sin[v]}, {8 + (3 + Cos[v]) Cos[u], 3 + Sin[v],
   4 + (3 + Cos[v]) Sin[u]}, {12 + (3 + Cos[v]) Sin[u],
   4 + (3 + Cos[v]) Cos[u], 4 + Sin[v]}, {16 + (3 + Cos[v]) Cos[u],
   3 + Sin[v], 4 + (3 + Cos[v]) Sin[u]}, {20 + (3 + Cos[v]) Sin[u],
   4 + (3 + Cos[v]) Cos[u], 4 + Sin[v]}
  }, {u, 0, 2 Pi}, {v, 0, 2 Pi},
 PlotStyle -> {Red, Green, Blue, Yellow, Black}, Mesh -> None,
 Axes -> None, Boxed -> False]

enter image description here
