Transforming the x-axis of a figure created with customticks package

Question

I have some data which i inter alia define and invert

dataYAG = {{0.0095, 25.07}, {0.05, 50.1}, {0.1, 58.7}, {0.2, 65.01}, {0.3, 66.8}, {0.4, 66.97}};


InvYAG = (dataYAG/100)^-1

which i plot than with usage of the customticks package

with

dataPlotYAG =
ListPlot[InvYAG, PlotRange -> {{0, 12000}, {1, 5}},
Frame -> True,
FrameTicks -> {LinTicks[0, 12000, TickDirection -> Out,
MajorTickLength -> 0.02, MinorTickLength -> 0.01,
TickLabelFunction ->Function[x,Framed[If[Boole[IntegerQ[x/10000]] == 0, N[x/10000],IntegerPart[x/10000]], FrameStyle -> None]]],
LinTicks[1, 5, TickDirection -> Out, MajorTickLength -> 0.02,
MinorTickLength -> 0.01,TickLabelFunction -> (Framed[#2, FrameStyle -> None] &)], None,None}, FrameStyle -> Directive[Thickness[.003], Black]
        ]

i tried the condition

If[Boole[IntegerQ[x/10000]] == 0, N[x/10000], IntegerPart[x/10000]

to get rid of that, what obviously does not work.

Is this because x is not evaluated in my options so i run of course never in my conditions and is there a way to get rid of that points ? (which would of course only take me some seconds in illustrator)?

Cheers

To get rid of what? You do not describe clearly what you are trying to achieve. — Oleksandr R., Aug 11 '15 at 19:45

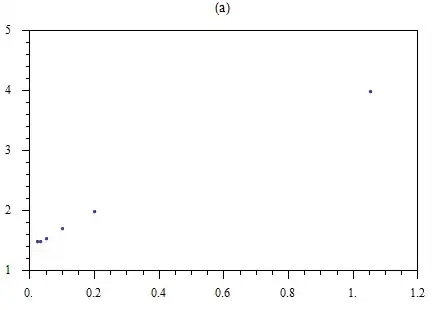

Sorry, i forgot actually to point out that I tried to get rid of the decimal point for "0." and "1" — Bastian, Aug 11 '15 at 22:29

score 0 · Answer 1 · answered Aug 11 '15 at 23:34

It seems needlessly complex to write

If[Boole[IntegerQ[x/10000]] == 0, N[x/10000], IntegerPart[x/10000]

when

If[IntegerQ[x/10000], IntegerPart[x/10000], N[x/10000] ]

would do. (Notice that the arguments are reversed because you are now checking if IntegerQ is true, not false.)

I do not have the customticks package, but I suspect your problem is that you have defined a pure function (Function) without a terminating &. Try this Slot-notation version, with the terminating & and see if that helps.

Framed[If[IntegerQ[#/10000], IntegerPart[#/10000], N[#/10000]] &

You might also want to consider whether there are small rounding issues in your data, so that

Framed[If[IntegerQ[Chop[#/10000]], IntegerPart[#/10000], N[#/10000]] &

gets the result you want. You could also try Round or Floor instead of IntegerPart.

If you need something more sophisticated you could write a custom function like this one. In your case you would change the n to n/10000, or include a second argument that defines the denominator. You could also do this as an If rather than a Switch: it's in that form because the previous version of this function was more complicated.

numberformat[n_?NumericQ, opts:OptionsPattern[{NumberForm}]]:=
  Switch[n, _Integer, NumberForm[n, Sequence@@FilterRules[{opts},
   Options[NumberForm]], DigitBlock -> 3, NumberSeparator -> "\[ThickSpace]"],
      _,  NumberForm[Chop@N[n], Sequence@@FilterRules[{opts}, Options[NumberForm]]] ]
