How to perform a breadth-first traversal of an expression?

Question

Mathematica provides functions that perform a depth-first traversal, or which use such a traversal, including: Scan, Count, Cases, Replace, and Position. It is also the standard evaluation order therefore functions Mapped (Map, MapAll) will evaluate in a depth-first order.

It is quite direct to do this:

expr = {{1, {2, 3}}, {4, 5}};

Scan[Print, expr, {0, -1}]

1

2

3

{2,3}

{1,{2,3}}

4

5

{4,5}

{{1,{2,3}},{4,5}}

How can one do a Scan-type operation breadth-first? (Simply storing then reordering the output is not adequate as it doesn't change the order in which expressions are visited.)

Scan has the property that it does not build an output expression the way that e.g. Map does, which is quite appropriate for breadth-first scans, and conserves memory.

Answer 1

breadthFirst[expr_] := Flatten[Table[Level[expr, {j}], {j, 0, Depth[expr]}], 1]

Running example:

expr = {{1, {2, 3}}, {4, 5}};

breadthFirst[expr]

(* Out[14]= {{{1, {2, 3}}, {4, 5}}, {1, {2, 3}}, {4, 5}, 1, {2,
  3}, 4, 5, 2, 3} *)

Answer 2

Here is a simple implementation of a breadth first traversal. It simply maps the function onto each element on the current level and then collects all non-atomic entries into the next level, rinse and repeat.

breadthFirstApply[{}, call_] := Null
breadthFirstApply[list_, call_] := (call /@ list;breadthFirstApply[Level[list,{2}], call])

Output with your data structure:

      breadthFirstApply[{{1, {2, 3}}, {4, 5}}, Print]

{1,{2,3}}(*level 1*)
{4,5} (*level 1*)
1 (*level 2*)
{2,3} (*level 2*)
4 (*level 2*)
5 (*level 2*)
2 (*level 3*)
3 (*level 3*)

Edit: Updated code based on feedback from Rojo

Answer 3

Here is an expressly iterative solution:

bf[f_, x_] := ((f~Scan~#; #~Level~{2})& ~FixedPoint~ {x};)

(*
In[2]:= bf[Print, {{1, {2, 3}}, {4, 5}}]

{{1,{2,3}},{4,5}}
{1,{2,3}}
{4,5}
1
{2,3}
4
5
2
3
*)

---

Incorporating Rojo's advice to Hold expressions gathered by Level:

bf[f_, x_] := ( Level[f~Scan~#; #, {2}, Hold] & ~FixedPoint~ {x} ;)

Answer 4

expr = {{1, {2, 3}}, {4, 5}};

Do[Scan[Print, expr, {i}], {i, 0, Depth@expr}]

{{1,{2,3}},{4,5}}
{1,{2,3}}
{4,5}
1
{2,3}
4
5
2
3

Answer 5

I meant my comment above as a joke, but here's the implementation anyway.

Some ugly recursive code to convert the expression to a Graph:

ClearAll[treeBuild]
treeBuild[expr_[ops___]] := treeBuild[expr, #] & /@ {ops}
treeBuild[name_, expr_[ops___]] :=
   Module[{node = Unique[expr]}, {name \[DirectedEdge] node,treeBuild[node, #] & /@ {ops}}]
treeBuild[node_, a_] := node \[DirectedEdge] Unique["L" <> ToString[a] <> "$"]

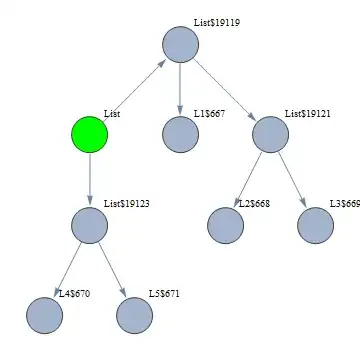

Build the Graph

g = treeBuild[expr] // Flatten;

Graph[g, VertexLabels -> "Name", PlotRangePadding -> 0.25,
         VertexSize -> Large, VertexStyle -> {List -> Green}]

And now the breadth first scan:

HighlightGraph[
  Graph[g, VertexSize -> Large, VertexStyle -> {List -> Green}], {#}] & /@
  Reap[
     BreadthFirstScan[Graph@g,List, {"PrevisitVertex" -> (Sow[#1] &)}];
  ][[2, 1]]//ListAnimate

Answer 6

A package-ready breadth-first position search, returning positions of a pattern in an expression. It allows top-down and bottom-up breadth-first traversals by setting level specification. It is not exactly the one Mr.Wizard was looking for, as it checks absolute levels rigorously (i.e. all level 4 subparts are checked before any level 3 subpart is visited). Deals with the usual level specifications and can return a limited number of cases if asked for.

Options[bfPosition] = {Heads -> True};
bfPosition[expr_, patt_, opts : OptionsPattern[]] :=
   bfPosition[expr, patt, {0, ∞}, ∞, opts];
bfPosition[expr_, patt_, level_, opts : OptionsPattern[]] :=
   bfPosition[expr, patt, level, ∞, opts];
bfPosition[expr_, patt_, level_, 0 | 0., opts : OptionsPattern[]] = {};
bfPosition[expr_, patt_, level_, n_, opts : OptionsPattern[]] /;
   If[MatchQ[level, {_Integer | Infinity, _Integer | Infinity} |
       {_Integer | Infinity} | _Integer | Infinity], True,
    Message[bfPosition::level, level]; False] := Module[
   {lev, max = Depth@expr, range, c = 0, found, reap},

   (* Normalize level specification *)
   lev = Switch[level /. Infinity -> max,
     {_Integer, _Integer}, level,
     {_Integer}, {First@level, First@level},
     _Integer, {1, level}];
   lev = (Min[#, max] & /@ (lev /. x_?Negative :> Max[(max + 1 + x), 0]));
   range = Range[First@lev, Last@lev, If[Greater @@ lev, -1, 1]];

   (* Check each level until the required amount of matches are found *)
   reap = Last@Reap@Do[
       found = Position[expr, patt, {i, i}, n - c, Heads -> OptionValue@Heads];
       c = c + Length@found;
       Sow@found;
       If[c >= n, Return[]];,
       {i, range}];

   If[reap === {}, {}, Join @@ (First@reap)]
   ];

bfPosition[expr, pattern] gives a list of the positions at which objects matching pattern appear in expr by performing a breadth-first search of subparts. Position[expr, pattern, levelspec] finds only objects that appear on levels specified by levelspec. Position[expr, pattern, levelspec, n] gives the positions of the first n objects found. bfPosition effectively accepts reverse-ordered level specifications that define the order of search in expr: for example bfPosition[expr, pattern, {∞, 0}] performs a bottom-up while bfPosition[expr, pattern, {0, ∞}] performs a top-down breadth-first search.

Test it:

 expr = {{1, {2, 3}}, {4, 5}};
 pos = bfPosition[expr, _, {∞, 0}, Heads -> False];
 If[# === {}, expr, Extract[expr, #]] & /@ pos

{2, 3, 1, {2, 3}, 4, 5, {1, {2, 3}}, {4, 5}, {{1, {2, 3}}, {4, 5}}}

Note that all level-3 objects (2, 3) are visited before encountering a level-2 leaf (1).

bfPosition is not like Position (Position does a depth-first postorder search):

bfPosition[expr, _, Heads -> False]
Position[expr, _, Heads -> False]

{{}, {1}, {2}, {1, 1}, {1, 2}, {2, 1}, {2, 2}, {1, 2, 1}, {1, 2, 2}}
{{1, 1}, {1, 2, 1}, {1, 2, 2}, {1, 2}, {1}, {2, 1}, {2, 2}, {2}, {}}

Find positions using bottom-up or top-down search:

bfPosition[expr, _, {∞, 0}, Heads -> False]
bfPosition[expr, _, {0, ∞}, Heads -> False]

{{1, 2, 1}, {1, 2, 2}, {1, 1}, {1, 2}, {2, 1}, {2, 2}, {1}, {2}, {}}
{{}, {1}, {2}, {1, 1}, {1, 2}, {2, 1}, {2, 2}, {1, 2, 1}, {1, 2, 2}}

Find a limited number of occurrences only:

bfPosition[expr, _, {∞, 0}, 4, Heads -> False]
bfPosition[expr, _, {0, ∞}, 4, Heads -> False]

{{1, 2, 1}, {1, 2, 2}, {1, 1}, {1, 2}}
{{}, {1}, {2}, {1, 1}}

Answer 7

I don't sure this will look as a duplicated version with Sjoerd C. de Vries in here,but there are some trick function can make you life ease and simplify that answer.So I post this answer still.

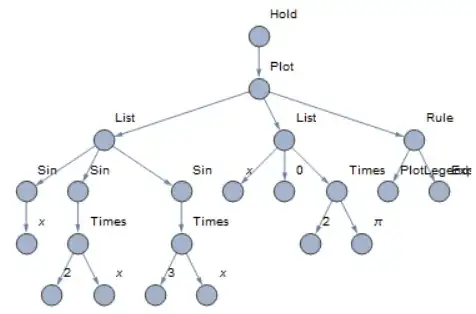

Build graph by GraphComputation`ExpressionGraph from any expression

expr = Hold[
   Plot[{Sin[x], Sin[2 x], Sin[3 x]}, {x, 0, 2 Pi},
    PlotLegends -> "Expressions"]];
exprGraph =
 GraphComputation`ExpressionGraph[expr, VertexSize -> Large]

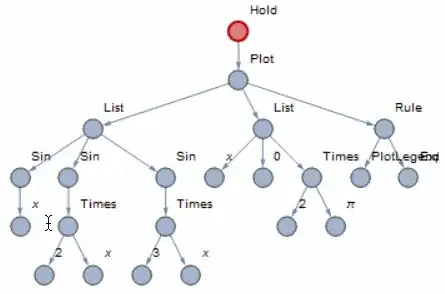

Experimental`ListAnimator can make a animate without that control.

Experimental`ListAnimator[
 HighlightGraph[exprGraph, #, GraphHighlightStyle -> "Thick"] & /@
  Reap[BreadthFirstScan[
     exprGraph, {"PrevisitVertex" -> (Sow[#1] &)}]][[2, 1]]]
