How to plot the ranges of the variables of an iterated integral?

Question

I would like to plot the volume of the following integral:

$$\int _{-1}^1\int _0^{\sqrt{1-y^2}}\int _{x^2+y^2}^{\sqrt{x^2+y^2}}\left(xyz\right)dzdxdy$$

Here are the ranges of the variables from this iterated integral.

$$-1\le y\le 1 $$

$$0 \le x\le \sqrt{1-y^2}$$

$$x^2+y^2\le z\le\sqrt{x^2+y^2}$$

This is the right half of a region which lower bound is an elliptic paraboloid and the upper bound is a cone.

I have no previous experience with Mathematica so I have only managed to plot a elliptic paraboloid and a cone:

ContourPlot3D[{z == x ^2 + y^2, z^2 == x ^2 + y^2}, {x, -2, 2}, {y, -2, 2}, {z, -2, 2}]

I have tried this alternatives but the results are "empty":

RegionPlot3D[x^2 + y^2 <= (x^2 + y^2)^1/2, {x, -1, 1}, {y, -1, 1}, {z, -1, 1}]

Plot3D[{ (x^2 + y^2), (x^2 - y^2)^1/2}, {x, -1, 1}, {y, -1, 1}, RegionFunction -> Function[{x, y}, (x^2 + y^2) < (x^2 - y^2)^1/2]]

RegionPlot3D[ z <= Sqrt[x^2 + y^2] && y^2 + x^2 < 0 && z > 0, {x, -1.5, 1.5}, {y, -2, 2}, {z, -2, 2}, PlotPoints -> 100]

Thanks in advance.

N.J.Evans · Accepted Answer · 2015-08-25T00:27:22.783

7

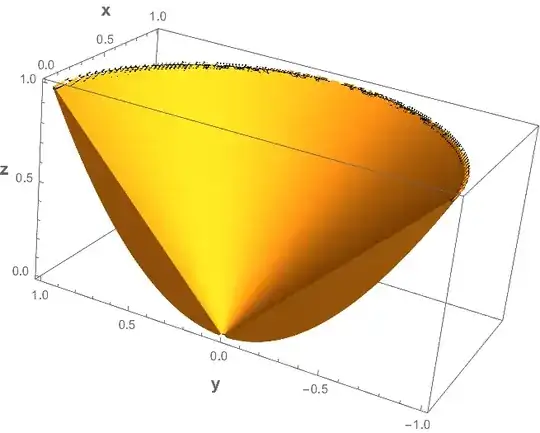

To get the region, you can use region plot, you should take the limits of the integral exactly as they are written and supply them to the function, separating the region corresponding to each integral by the And function(&&). The edge is a little jagged, but you can play with the number of plot points to get a better or worse picture.

RegionPlot3D[
 -1 <= y <= 1 && 0 < x < Sqrt[1 - y^2] &&
  x^2 + y^2 < z < Sqrt[x^2 + y^2]
 , {y, -1, 1}, {x, 0, 1}, {z, 0, 1}
 , PlotPoints -> 100
 , PerformanceGoal -> "Quality"
 , PlotStyle -> Directive[Yellow, Opacity[0.5]], Mesh -> None
 , BoxRatios -> {2, 1, 1}
 ]

edited Aug 25 '15 at 00:27

answered Aug 24 '15 at 21:25

N.J.Evans

5,093
19
25

1

Weirdly enough, I obtained a more regular, "prettier" picture using your code as posted (link). Is it possible that the one you posted was obtained using far fewer than 100 points? (+1) – MarcoB Aug 24 '15 at 21:37
Must have. :/ Fixed. – N.J.Evans Aug 25 '15 at 00:28
1

Have you seen this? – J. M.'s missing motivation Aug 28 '15 at 10:25
Wow! That's a huge improvement. I'll have to read it closely when I've got the time. – N.J.Evans Aug 28 '15 at 13:30

score 4 · Answer 2 · answered Aug 24 '15 at 22:44

Using ImplicitRegion

rgn = ImplicitRegion[-1 <= y <= 1 && 0 <= x <= Sqrt[1 - y^2] &&
    x^2 + y^2 <= z <= Sqrt[x^2 + y^2], {x, y, z}];

RegionPlot3D[rgn,
 PlotPoints -> 150,
 Axes -> True,
 AxesLabel ->
  (Style[#, Bold, 14] & /@ {"x", "y", "z"})]

The volume is

vol = Volume[rgn]

Pi/12

or alternatively,

vol == RegionMeasure[rgn, 3] ==
 Integrate[1, Element[{x, y, z}, rgn]] ==
 Integrate[1, {y, -1, 1}, {x, 0, Sqrt[1 - y^2]},
  {z, x^2 + y^2, Sqrt[x^2 + y^2]}]

True

Your original integral is

Integrate[x*y*z, Element[{x, y, z}, rgn]]

0
