PixelValues along a straight Line

Question

UPDATE to the question

I have reformulated the question in order to make it distinct from the one suggested as a duplicate: "Line Intensity Profile From Image." The key difference is that I'm interested in obtaining a pixel profile where the PixelValues are placed according to their distances from the ends of the Line and no interpolation of PixelValues is allowed. The referenced thread does not contain a suitable solution and does not imply these restrictions.

The basic question

I find quite interesting this recent question on the Wolfram Community for which I wish to find a more efficient and general solution than the one I have at the moment.

The general problem: having a raster Image what is an efficient way to find the PixelValues profile along a straight Line (of thickness 1 pixel) defined by two points in the standard coordinate system of the image? My current approach requires creation of a rasterized version of a Graphics object containing Line what is very inefficient when the original image is large. Probably the best approach to the problem would be to implement an algorithm which allows to generate pixel positions in the original image along the Line without using the FrontEnd.

The following is my inefficient solution via Rasterize:

img = Import["https://i.stack.imgur.com/Tc8hR.png"]

Here we find the variation of brightness along the radial profile defined via angle α.

α = Pi/10;
id = ImageDimensions[img];
pr = {0, #} & /@ id;
center = Round[Mean /@ pr];
gr = Graphics[{White, AbsoluteThickness[1],
    Line[{center, AngleVector[center, {Norm[id], α}]}]}, Background -> Black,
   PlotRangePadding -> None, ImageSize -> id, PlotRange -> pr, AspectRatio -> Automatic];
mask = Binarize@Rasterize[Style[gr, Antialiasing -> False], "Image"];
radialProfile =
  PixelValue[img, SortBy[PixelValuePositions[mask, 1], N@EuclideanDistance[center, #] &]];
Length@radialProfile
Row[{ListLinePlot[radialProfile, ImageSize -> Medium],
     Show[img, gr /. White -> Red, ImageSize -> Small]}]

@AlexeyPopkov You can replace it in my code. I was going to do this but I waas to lazy/run out of time :) — Kuba, Oct 03 '15 at 10:29
I just realized that I posted more or less the same answer here that I posted to the question @Pickett linked. So yes, I think this is a duplicate, too... — Niki Estner, Oct 03 '15 at 10:43
What do you mean by "according to their distances"? If you mean "equidistant", then I don't see how that's possible without interpolation, unless the line has 0°, 90° or 45° angle. To prevent further confusion, could you add code to your answer, that calculates the X/Y coordinates you want to sample? (even if it's inefficient) — Niki Estner, Oct 03 '15 at 18:14
@nikie I added an example to my answer. I don't mean equidistant, only the ability to calculate the distance between pixels and the line ends (the center for the case of radial profile). — Alexey Popkov, Oct 03 '15 at 18:22
Strongly related: https://mathematica.stackexchange.com/q/4436/280 — Alexey Popkov, May 03 '17 at 12:01

Niki Estner · Answer 1 · 2015-10-03T12:26:30.333

4

Probably the best approach to the problem would be to implement an algorithm which allows to generate pixel positions in the original image along the Line without using the FrontEnd

I think ImageTransformation doest just that. Using your definitions:

r = Min[id]/2;
dir = N@AngleVector[α];
(*modify step distance so we step at least 1 pixel in x or y \
direction*)
dir = dir/Max[Abs[dir]];
profile =
  First@ImageData@
    ImageTransformation[img,
     center + #[[1]] dir + {1, 0} &, {Round[r], 1}, DataRange -> Full,
      PlotRange -> {{0, r - 1}, {0, 1}}, Resampling -> "Nearest"];

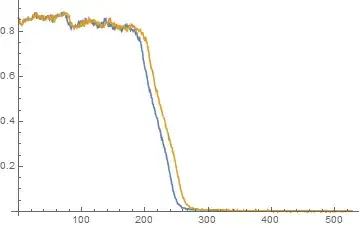

ListLinePlot[{profile, radialProfile}, PlotRange -> All]

There still is an unwanted interpolation, try simple check when α=0 and center = Round[Mean /@ pr];: radialProfile - PixelValue[img, Table[center + i {1, 0}, {i, 1, 502}]] returns only zeros while profile - PixelValue[img, Table[center + i {1, 0}, {i, 1, 501}]] gives many zeros but also many interpolated values.

I agree this is weird. I'm guessing Resampling->"Nearest" interpolates if a coordinate is exactly between two pixels? But I believe this is fixable by rounding coordinates and shifting them to pixel centers (Round[pt]-.5):

profile =
  First@ImageData@
    ImageTransformation[img,
     Round[center + #[[1]] dir] - .5 &, {Round[r], 1},
     DataRange -> Full, PlotRange -> {{0, r - 1}, {0, 1}},
     Resampling -> "Nearest"];

profile - PixelValue[img, Table[center + i {1, 0}, {i, 0, 500}]]

edited Oct 03 '15 at 12:26

answered Oct 03 '15 at 10:35

Niki Estner

36,101
3
92
152

@AlexeyPopkov: You can turn off interpolation using Resampling->"Nearest". As for the profile length: I'm not sure what you want to do. In your code, the length of the profile seems to vary with the angle, unless the source image is quadratic. I've updated my answer – Niki Estner Oct 03 '15 at 11:09
Please try ListLinePlot[{radialProfile, profile}]. It is clear that profile is deformed. – Alexey Popkov Oct 03 '15 at 11:18
@AlexeyPopkov: You're right, I forgot that ImageTransformation's PlotRange->Full option strangely uses source image dimensions. – Niki Estner Oct 03 '15 at 11:38
There still is an unwanted interpolation, try simple check when α=0 and center = Round[Mean /@ pr];: radialProfile - PixelValue[img, Table[center + i {1, 0}, {i, 1, 502}]] returns only zeros while profile - PixelValue[img, Table[center + i {1, 0}, {i, 1, 501}]] gives many zeros but also many interpolated values. – Alexey Popkov Oct 03 '15 at 12:05
@AlexeyPopkov: I don't think this is a result of interpolation. I tried ImageTransformation on an image containing random integer values, and the result contained only integers, too. If it used interpolation, I'd have seen some rational numbers. My guess is it's just rounding differently than PixelValue – Niki Estner Oct 03 '15 at 12:32
Thanks for the update. You are right: PixelValue subtracts 1/2 from pixel positions in order to convert them into coordinates in the standard image coordinate system (it's the second point under "Details and Options" section of the Docs page for PixelValue) while ImageTransformation does not do this by default. I need more time to understand the subtlety of your solution though. – Alexey Popkov Oct 03 '15 at 13:39
I realized that the pixel profile along a line must imply that pixel values are placed according to their distances from the ends of the line (for radial profile it is the distance from the center). I updated the question accordingly. – Alexey Popkov Oct 03 '15 at 17:24

score 2 · Answer 2 · edited Apr 13 '17 at 12:56

As mentioned in the comments, there is an implementation of Bresenham's line algorithm by halirutan:

bresenham[p0_, p1_] := Module[{dx, dy, sx, sy, err, newp},
  {dx, dy} = Abs[p1 - p0];
  {sx, sy} = Sign[p1 - p0];
  err = dx - dy;
  newp[{x_, y_}] :=
   With[{e2 = 2 err}, {If[e2 > -dy, err -= dy; x + sx, x],
     If[e2 < dx, err += dx; y + sy, y]}];
  NestWhileList[newp, p0, # =!= p1 &, 1]
]

One significant limitation of this algorithm is that it requires integer pixel positions for both the starting and the ending point of the line. It means that both ends of the line must be snapped to the pixel grid of the image (what isn't always desirable).

With this implementation my Rasterize code can be simplified to bresenham[centralPixelPosition, endingPixelPosition]:

α = Pi/10;
id = ImageDimensions[img];
(* center in the standard image coordinate system *)
center = id/2;
(* end of the radial line in the standard image coordinate system *)
endOfLine =
  RegionIntersection[HalfLine[center, AngleVector[α]],
    Line[{{1, 1}, {1, id[[2]]}, id, {id[[1]], 1}, {1, 1}} - 1/2]][[1]];
(* integer position of the central pixel for PixelValue *)
centralPixelPosition = Round@N[center + 1/2];
(* integer position of the ending pixel of the line for PixelValue *)
endingPixelPosition = Round@N[endOfLine + 1/2];
radialPixelPositionsBresenham = bresenham[centralPixelPosition, endingPixelPosition];
radialProfileBresenham = PixelValue[img, radialPixelPositionsBresenham];
Length@radialProfileBresenham
Row[{ListLinePlot[{radialProfile, radialProfileBresenham}, ImageSize -> Medium],
  Show[ReplacePixelValue[img, radialPixelPositionsBresenham -> Green],
   Epilog -> {Red, AbsoluteThickness[1], Dashed, HalfLine[center, AngleVector[α]]},
    ImageSize -> Small]}]

In the light of the bug in Rasterize this solution should be considered as more correct than the original one. But there is additional problem: the radial distances from the center according to Bresenham (as well as to the default behavior of Rasterize) aren't uniform:

Differences@
  Map[N@EuclideanDistance[centralPixelPosition, #] &,
   radialPixelPositionsBresenham] // Short

{1., 1.23607, 0.92621, <<496>>, 0.95178, 1.25877, 0.951583}

So when computing correct radial profile one should take the distances into the consideration:

ListLinePlot[{Transpose[{Range[0, Length[radialProfileBresenham] - 1],
    radialProfileBresenham}],
  Transpose[{Map[N@EuclideanDistance[centralPixelPosition, #] &,
     radialPixelPositionsBresenham], radialProfileBresenham}]}]

Indeed the distortion due to non-uniform placement of pixels on the radial line is very significant.
