Suppose that we have a dice with 4 faces. If the dice lands on:

  1. the person will move to the right
  2. the person will move to the left
  3. the person will move upward
  4. the person will move downward

The simulation has n steps and the position of the person updates on every step. How can I generate this random simulation?

test[n_] := Accumulate[RandomChoice[{{-1, 0}, {1, 0}, {0, 1}, {0, -1}}, n]]

How can I show the first/last point on the simulation if I use a function similar to ListLinePlot[test[10]]?

Syed
  • 52,495
  • 4
  • 30
  • 85
seito
  • 93
  • 5

2 Answers2

3

You might implement your random walk something like this.

walk[n_] :=
  Prepend[
    Accumulate[RandomChoice[{{-1, 0}, {1, 0}, {0, 1}, {0, -1}}, n]],
    {0, 0}]

trial[n_] :=
  Module[{path, start, end},
    path = walk[n];
    start = First @ path;
    end = Last @ path;
    ListLinePlot[path,
      Epilog -> {PointSize[Large], Point[start], Red, Point[end]},
      AspectRatio -> Automatic]]

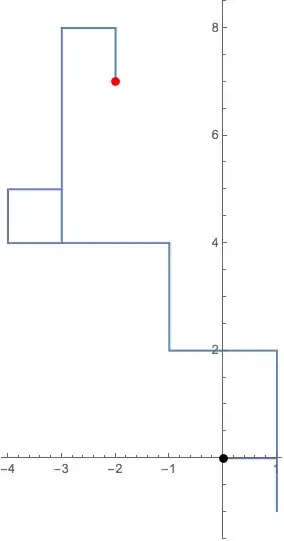

SeedRandom[3]; trial[25]

walk

m_goldberg
  • 107,779
  • 16
  • 103
  • 257
1
Clear["Global`*"]

SeedRandom[123];
walk[n_Integer, init_ : {0, 0}] := Module[{
   up = {0, 1},
   dn = {0, -1},
   right = {1, 0},
   left = {-1, 0}
   },
  steps = RandomChoice[{left, right, up, dn}, n];
  FoldList[Plus, init, steps]
  ]

walk[10, {1, 1}]  (*starting at {1,1} with 10 steps *)

{{1, 1}, {2, 1}, {2, 0}, {3, 0}, {2, 0}, {2, 1}, {2, 2}, {2, 3}, {2,
4}, {1, 4}, {0, 4}}

Visualization:

With[{n = 30},
 path = walk[n, {2, 2}] // Echo;
 ListLinePlot[Partition[path, 2, 1], AspectRatio -> Automatic
   , PlotStyle -> (ColorData["Rainbow"][#] & /@ Subdivide[n - 1])
   , PlotLegends -> Placed[BarLegend[{"Rainbow", {0, n}}], After]
   , PlotRangePadding -> Scaled[.15]
   , AspectRatio -> Automatic
   , Epilog -> {AbsolutePointSize@Large, Black
     , Point@path[[1]], Circle[path[[1]], 0.2]
     , Red, Point@path[[-1]], Circle[path[[-1]], 0.2]
     }
   ] /. Line[a__] :> Arrow[a, 0.05]
 ]

enter image description here

Syed
  • 52,495
  • 4
  • 30
  • 85
  • +1, but I get lots of error messages, which only go away after deleting /. Line[a__] :> Arrow[a, 0.05] – eldo Feb 18 '24 at 11:11
  • I am on v12.2 and copied code on this page to a fresh notebook. I get no error messages. Can you please include message information. Thanks for including information about the Arrow. – Syed Feb 18 '24 at 11:14
  • I'm on Version 13.3.0 and must delete the last line (the line to arrow transformation). Fresh kernel doesn't help. – eldo Feb 18 '24 at 11:24
  • You can start it as a new question by adding a minimal example. Perhaps it is a recently introduced bug. In the meantime, I will request the readers to provide more feedback and mention their version info as well. Thanks. – Syed Feb 18 '24 at 11:26
