change the size of the image

Question

If this is trivial or a duplicate I apologize. I failed to find something.

I have the following code

g1 = Graphics3D[{Gray, Specularity[White, 60], Opacity[0.5],
      Scale[#, {10, 3, 2}], Opacity[1], Scale[#, {.001, 3, 2}]} &@
    Sphere[], Axes -> True];
g2 = Graphics3D[{Thick, {Arrowheads[Medium],
     Arrow[{{0, 0, 0}, {10, 0, 0}}], Arrow[{{0, 0, 0}, {0, 0, 2}}],
     Arrow[{{0, 0, 0}, {0, -3, 0}}]}}];
Rasterize[
 Show[{g1, g2}, Boxed -> False, Axes -> False, ImagePadding -> None,
  ImageMargins -> None,
  PlotRange -> {{-10.1, 10.1}, {-3.1, 3.1}, {-2.1, 2.1}},
  ImageSize -> 600, Lighting -> "Neutral"], ImageResolution -> 200]

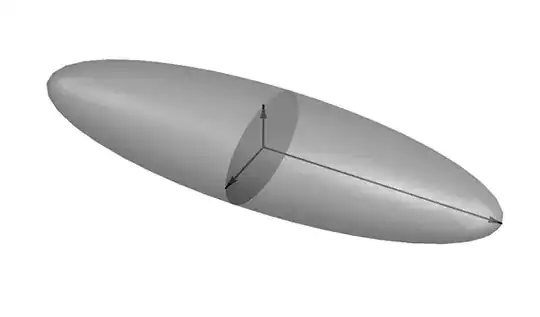

which produces the following figure.

When I insert this figure in Latex I take something like

As you see there is a lot of space between the caption and the figure. How is it possible to decrease these "white margins"? In order to be more clear see the following figure.

Thanks.

So do you want bounding box or not? With Boxed->False you can just add ImageCrop. — Kuba, Nov 19 '15 at 11:22

score 1 · Accepted Answer · answered Nov 19 '15 at 12:01

The following will do what I wanted (thanks to @Kuba and @J.M.)

g1 = Graphics3D[{Gray, Specularity[White, 60], Opacity[0.5],
      Scale[#, {10, 3, 2}], Opacity[1], Scale[#, {.001, 3, 2}]} &@
    Sphere[], Axes -> True];
g2 = Graphics3D[{Thick, {Arrowheads[Medium],
     Arrow[{{0, 0, 0}, {10, 0, 0}}], Arrow[{{0, 0, 0}, {0, 0, 2}}],
     Arrow[{{0, 0, 0}, {0, -3, 0}}]}}];
Rasterize[
 Show[{g1, g2}, Boxed -> False, Axes -> False, ImagePadding -> None,
  ImageMargins -> None,
  PlotRange -> {{-10.1, 10.1}, {-3.1, 3.1}, {-2.1, 2.1}},
  ImageSize -> 600, Lighting -> "Neutral",
  Method -> {"ShrinkWrap" -> True}], ImageResolution -> 300]

or

g1 = Graphics3D[{Gray, Specularity[White, 60], Opacity[0.5],
      Scale[#, {10, 3, 2}], Opacity[1], Scale[#, {.001, 3, 2}]} &@
    Sphere[], Axes -> True];
g2 = Graphics3D[{Thick, {Arrowheads[Medium],
     Arrow[{{0, 0, 0}, {10, 0, 0}}], Arrow[{{0, 0, 0}, {0, 0, 2}}],
     Arrow[{{0, 0, 0}, {0, -3, 0}}]}}];
ImageCrop[
 Rasterize[
  Show[{g1, g2}, Boxed -> False, Axes -> False, ImagePadding -> None,
   ImageMargins -> None,
   PlotRange -> {{-10.1, 10.1}, {-3.1, 3.1}, {-2.1, 2.1}},
   ImageSize -> 600, Lighting -> "Neutral",
   Method -> {"ShrinkWrap" -> True}], ImageResolution -> 300]]

Both result to the same output.
