23

An asteroid was recently discovered that is in a horseshoe orbit with respect to the earth. Is there an intuitive explanation for these orbits? It seems that the earth acts as a repulsive force where one would expect gravity to be attractive. From the above linked article:

Accepted in MNRAS, Apostolos A. Christou, David J. Asher, 1104.0036, A long-lived horseshoe companion to the Earth

enter image description here

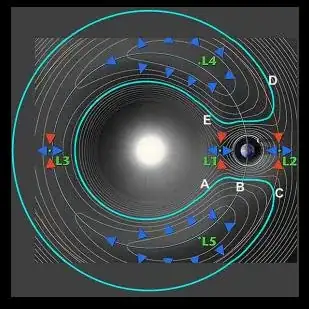

A better description of the horseshoe orbits, along with the tadpole orbits and Lagrange points:
enter image description here

Carl Brannen
  • 12,811
  • Is the earth inside the orbit? Meaning is the orbit approximately parabolic near the earth with the earth being close to the focal point? –  Apr 09 '11 at 20:31
  • 1
    The earth goes around the sun once per year. The asteroid does too, but slowly speeds up and slows down so it follows the horseshoe shown, with a period of 350 years. That is, after 350 years, the average time the asteroid takes to go around the earth is exactly a year. – Carl Brannen Apr 09 '11 at 20:33
  • 1
    Very funky phenomenon, +1 – Marek Apr 09 '11 at 20:58
  • 3
    there's a lot of weirdness embedded in the phase space of the n-body problem:

    http://blogs.discovermagazine.com/cosmicvariance/2006/07/23/n-bodies/

     – Zo the Relativist Apr 09 '11 at 21:06
  • 1
    @Jerry, great luck that Kepler did not know this orbit :=) – Georg Apr 10 '11 at 10:17

2 Answers2

16

The horseshoe orbit shape does occur only in the reference frame of the Earth’s orbit. It is a manifestation of a third body problem, and the orbit is in an accelerated reference frame. The loop, which is this distended horseshoe shape, has no central gravitational source inside the loop. As a result the orbit is a “pseudo-orbit.”

From the perspective of an inertial frame in heliocentric coordinates this asteroid is in a circular orbit (topologically a circle) around the sun. When the orbit is closer to the sun than the Earth’s orbit the asteroid has a smaller orbital period, or equivalently it has a larger velocity. It will eventually catch up with the Earth, but it is not necessarily gravitationally drawn into the Earth. It interacts with the Earth’s gravity field in its frame with an effective and repulsive potential $L^2/2mr$, $L$ = angular momentum $r$ = distance from Earth. The gravitational potential plus this effective potential pushes the asteroid into a higher orbital radius. The Lagrange points $L_4$ and $L_5$ act then as attractor points in the rotational frame of the asteroid. Its orbital velocity is now smaller and recedes away from the Earth. Eventually the Earth approaches the asteroid and the process is repeated.

This is a “hunter-chaser” type of orbit. The thinner the horseshoe is the smaller the angular momentum L is with respect to the Earth at close approach. This means the gravitational attraction can become larger. This is a physical way of thinking about this. Technically this problem requires using Hill’s method for the 3 body problem.

Lawrence B. Crowell
  • 9,228
0

Not a direct answer to your question, but in relation to horseshoe orbits ..

Some years ago, a paper was published showing that as the Earth accumulated its mass during the formation of the Solar System, a nearby object in a horseshoe orbit relative to Earth, like this asteroid, would almost inevitably also form and grow, given all the debris floating about, but would later become unstable and crash into the Earth.

I wasn't organised enough to note the reference, and I'm not sure how well that theory squares with the Mars-sized body collision, which seems to be the accepted explanation these days; but if this horseshoe mechanism was involved, which seems quite plausible, then for Earth-like planets in other solar systems a moon, with a similar mass ratio and distance of ours, might be not a rarity but almost inevitable.

John R Ramsden
  • 817
