I need help on my Raspberry Pi 3B. I accidentally broke a small part of it and it fell on the ground which is the reason I cannot find it anymore (It's just sooo small.).

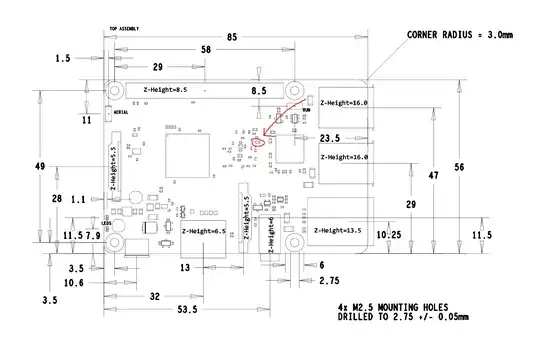

That is an image of the Rpi 3B with a red sign where i ripped off that small piece of electronic.


I do not know what exactly it is but I expect it to be a resistor. Could you tell me what it is and where I can obtain more precise information on how I could replace it (If it is a resistor just the omage). Next to let's call it resistor there is a code "C187" which is most likely referring to that resistor.

goldilocks
  • 58,849
  • 17
  • 112
  • 227
keksklauer4
  • 11
  • 2

1 Answers1

1

The part you're missing is a 100nF capacitor, most likely from the power part of schematics, which is there to reduce the noise. Unless you have a solid soldering skills for SMD parts, I'd recommend to ignore the missing part, your RPi should work just fine without it.

lenik
  • 11,541
  • 1
  • 30
  • 37
