I have got a very beginner question. I am building an irrigation system and so I need to use a 12V solenoid valve. My question is as follows: Given the following valve and in particular the contacts (at the bottom): enter image description here I have connected it to my relay (and ground) with some alligator clip to prototype (it works), but how can I connect it in a more serious (production-ready) way?

Thanks,

Edge7
  • 123
  • 4
  • 2
    just a note: the picture shows the valve upside down .... always orient with electrics at the highest point, to keep water out as much as possible – jsotola Oct 11 '20 at 19:22
  • 1
    yes. I found the picture on the internet, but your comment makes a LOT of sense. – Edge7 Oct 11 '20 at 19:45

1 Answers1

2

The connectors you see in the image are known as spade connectors, also push-on spade connectors, typically in insulated and non-insulated forms.

The above Amazon link is but one of many sources. Harbor Freight has available for purchase a few assortments of terminal connectors. For small quantities, at proportional higher prices, one can certainly find these spade connectors at local auto parts stores. I have three stores within two miles and all of them carry various sizes of the connector, both male and female connections.

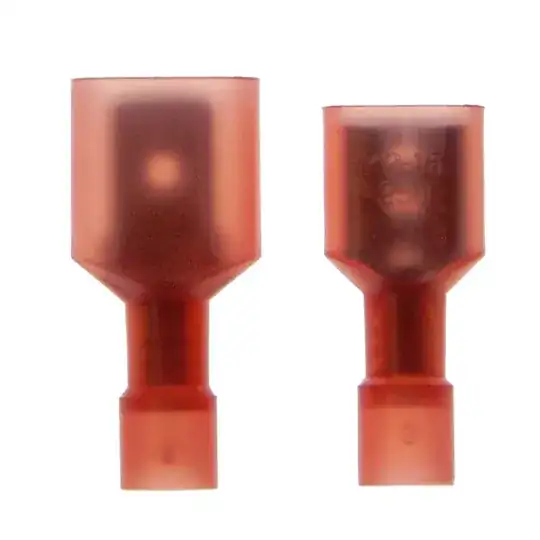

insulated pair spade connectors

Above image of insulated male/female spade connectors courtesy of Lowes™

You'll probably find that you can only buy matched sets, if you need only the two. Maybe a box of six, three of each, at an auto parts store. Check the wire gauge you plan to use and match that with the legend on the box.

fred_dot_u
