Do all PCI-e video cards require a PCI-ex16 slot to work? If not, what video cards don't require a full speed x16 slot?

Note: I'm referring only to new video cards, I am not talking about old AGP or even older PCI cards, only cards that use the PCI-e standard.

Faken
  • 1,451

1 Answers1

8

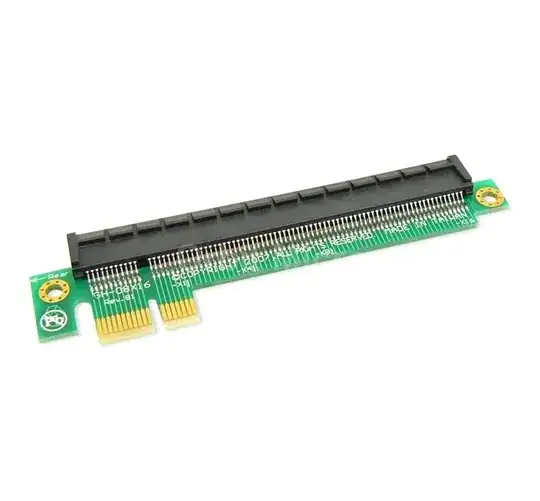

Any PCIe device can run down to just a x1 connection as long as it is the first x1 lane, PETp/n0 and PERp/n0 (this is called "Down-plugging"). The problem you're going to run into is the x16 card won't fit into the slot unless it is a x16 slot. If you're comfortable with modifying your motherboard you can cut out the end of the PCIe slot so that the card fits in (but don't cut the card itself) or get a x1 (or x4/x8) to x16 adapter board (which won't fit inside a chassis). There is also potential clearance issues with the card on the end that sticks out off the shorter slot. Also, a lesser concern is a high power card (75W) plugged into a 25W slot.

alt text

Below is an open ended x4 PCIe slot (in the middle closest to the "ASRock" logo). Notice that there are no electrolytic capacitor cans in the way if a x16 card were to be plugged in.

alt text

Gareth
  • 18,809
hanleyp
  • 6,627
  • Great thanks! I guess ill then run a low powered graphics card (prob some gforce 9400) as my primary display on x8 pci-e slot while i use the full speed x16 slot for some other much more powerful card for dedicated CUDA. – Faken Sep 25 '09 at 16:04
  • That'll work. Just make sure it fits before buying the card if you can. – hanleyp Sep 29 '09 at 12:24
