Stumbled across what appears to be a 15pin serial cable when cleaning out the equipment room today. I'm familiar with 25 pin and Any idea what these are commonly used for?
Asked
Active
Viewed 1.8k times
3 Answers
11
Hard to tell without a pic, but I'd guess its a 'DB Connector' or 'Game Port' connector.

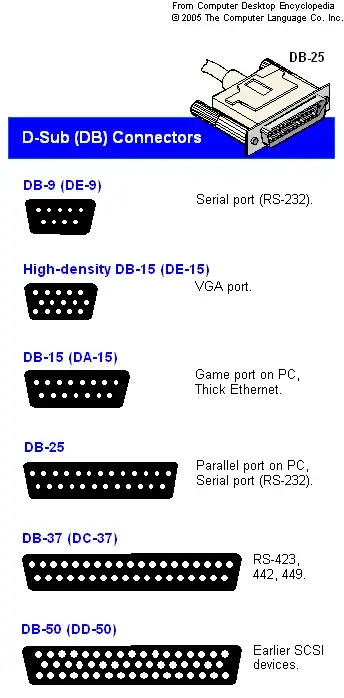

DB-15 (DA-15 and DE-15)
Two DB-15 connectors are widely used. The larger, two-row female DA-15 is the game port on a PC, and the smaller, three-row, female high-density DE-15 is the VGA port.
The Game Port was used for joysticks, midi devices and other peripherals.
0
I am holding in my hand a Jam Studio KG-TAB1 drawing tablet, (c) 2000, that interfaces through a connector consisting of three rows of five holes, very much like a VGA connector but which surely cannot be VGA, given the application as an input device. Other people discussing "the same" device mention its "USB" and "PS/2" connectors, which suggests serial communication over several stages of hardware evolution, further supporting the theory that this IS a serial device/port. I have also found online documentation of what claims to be the pinouts for serial communication on this style of connector.
Chris
- 1
-
The plug, in question, is 15pin and your answer does not apply. I am resisting the urge to downvote it, as I am supposed to. – Rohit Gupta Feb 01 '23 at 01:04
0
A couple of our earlier generation terminal concentrator units ran on an RS-422 loop that used DB-15 connectors and cabling.
Brian Knoblauch
- 4,783
