I need to make the following code work so that I can get a table with an automatic calculation of column separation based on the number of columns to make it fit the whole \linewidth.

\documentclass[a4paper]{article}
\usepackage{booktabs,mathtools,siunitx}

\usepackage{tabularray}
\UseTblrLibrary{booktabs,siunitx}
\sisetup{
    table-format = 2.2,
    round-precision = 2,
    round-mode = places,
    round-integer-to-decimal = true
}


\begin{document}


\begin{tblr}{
        colsep = 0 mm,
        colspec = {@{\extracolsep{\fill}} *{2}{>{$\relax}X<{$}} *{4}{S}},
        row{1} = {font=\boldmath\bfseries},
    }
    \toprule
    & \delta [deg] & {{{5}}} & {{{10}}} & {{{15}}} & {{{20}}} \\
    \midrule
    \Gamma = x^2 & \beta [deg] & 1 & 2 & 3 & 4 \\
    \bottomrule
\end{tblr}




\end{document}
L.J.R.
  • 10,932
Diaa
  • 9,599

2 Answers2

2

Maybe what you want is a both X and S column? Just write X[si] in tabularray.

PS: tabularray package doesn't support the usage of @{\extracolsep{\fill}}, and normally you don't need it.

\documentclass[a4paper]{article}
\usepackage{booktabs,mathtools,siunitx}

\usepackage{tabularray}
\UseTblrLibrary{booktabs,siunitx}
\sisetup{
    table-format = 2.2,
    round-precision = 2,
    round-mode = places,
    round-integer-to-decimal = true
}


\begin{document}


Text Text Text Text Text Text Text Text Text Text Text Text
Text Text Text Text Text Text Text Text Text Text Text Text


\begin{center}
\begin{tblr}{
  colspec = {{2}{>{$\relax}X<{$}}{4}{X[si]}},
  row{1} = {font=\boldmath\bfseries},
  vlines,
}
  \toprule
                 & \delta [deg] & {{{5}}} & {{{10}}} & {{{15}}} & {{{20}}} \
  \midrule
    \Gamma = x^2 & \beta [deg]  & 1       & 2        & 3        & 4        \
  \bottomrule
\end{tblr}
\end{center}


Text Text Text Text Text Text Text Text Text Text Text Text
Text Text Text Text Text Text Text Text Text Text Text Text


\end{document}

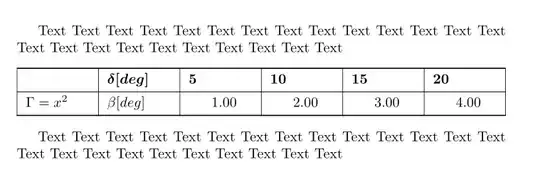

enter image description here

L.J.R.
  • 10,932
  • How to center the cells of the first row starting from the third column? Also, is there an automatic way to write [deg] in text mode so that only the math expressions are written in math mode? – Diaa Sep 09 '21 at 09:08
  • 1
    with use of X[c,si] – Zarko Sep 09 '21 at 09:12
  • @Zarko How can I make the left separation of the first column equal to the right separation of the last column equal to zero? – Diaa Sep 09 '21 at 09:21
  • Add @{} to the beginning and the end of colspec. – L.J.R. Sep 09 '21 at 09:34
  • @Diaa, adding @{} as mentioned in comment of L.J.R. But in this case content of the left cell will touch to the left table border. This problem you can eliminate b< omitting vertical lines or reduce by use defining first column as >{$\relax}X[c]<{$}. – Zarko Sep 09 '21 at 09:41
  • colspec = { @{} *{2}{>{$\relax}X[l, 0.7]<{$}} *{4}{X[1.1, c, si]} @{} } gets this https://i.ibb.co/sChzs4p/image.png – Diaa Sep 09 '21 at 09:42
  • @L.J.R. Is my last comment an issue to be resolved later? – Diaa Sep 09 '21 at 20:18
  • What is the problem there? – L.J.R. Sep 09 '21 at 21:31
  • colspec = { @{} *{2}{>{$\relax}X[l, 0.7]<{$}} *{4}{X[1.1, c, si]} @{} } should remove the right space between the last column and the rightmost margin, which is not what I got as shown here https://i.ibb.co/sChzs4p/image.png – Diaa Sep 10 '21 at 11:57
  • No, because you are centering the cells. You may use right alignment for the last column instead. – L.J.R. Sep 10 '21 at 12:38
1

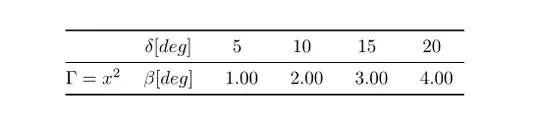

enter image description here

\documentclass[a4paper]{article}
\usepackage{booktabs,mathtools,siunitx}

% \usepackage{tabularray}
\usepackage{booktabs,siunitx, array}
\sisetup{
    table-format = 2.2,
    round-precision = 2,
    round-mode = places,
    round-integer-to-decimal = true
}


\begin{document}


\begin{tabular}{@{\extracolsep{\fill}} *{2}{&gt;{$\relax}c&lt;{$}} *{4}{S}}
    \toprule
    &amp; \delta [deg] &amp; {{{5}}} &amp; {{{10}}} &amp; {{{15}}} &amp; {{{20}}} \\
    \midrule
    \Gamma = x^2 &amp; \beta [deg] &amp; 1 &amp; 2 &amp; 3 &amp; 4 \\
    \bottomrule
\end{tabular}




\end{document}
js bibra
  • 21,280
