How to draw this DAG dependency graph in Latex

Question

I am wondering how to draw something like this in Latex. Notice the edges are not straight lines as I see in many Tkz examples. This is an example of attribute grammar where edges indicate the flow of attribute values.

\usepackage{tikz}
\usetikzlibrary{arrows}
\usetikzlibrary{positioning,calc}
\begin{document}
\begin{tikzpicture}[->,>=stealth',auto,node distance=2cm,
  thick,main node/.style={draw}]
\node[main node, rectangle, align=center] (1)                            {$n_0.S$};
\node[main node, rectangle, align=center] (2) [below= of 1]              {$n_1.I_1$};
\node[main node, rectangle, align=center] (3) [right =of 2, below= of 1] {$n_1.I_2$};
\node[main node, rectangle, align=center] (4) [right =of 3, below= of 1] {$n_1.S_1$};
\node[main node, rectangle, align=center] (5) [right =of 4, below= of 1] {$n_1.S_2$};
\node[main node, rectangle, align=center] (6) [below= of 1]              {$n_2.I_1$};
\node[main node, rectangle, align=center] (7) [right =of 6, below= of 1] {$n_2.I_2$};
\node[main node, rectangle, align=center] (8) [right =of 7, below= of 1] {$n_2.S_1$};
\node[main node, rectangle, align=center] (9) [right =of 8, below= of 1] {$n_2.S_2$};
\draw (2.south) to (4.south);
\draw (4.south) to (5.south);
\draw (6.south) to (8.south);
\draw (7.south) to (9.south);
\draw (3.south) to (6.north);
\draw (5.south) to (7.north);
\draw (8.south) to (3.north);
\draw (9.south) to (2.north);
\draw (8.north) to (1.south);
\end{tikzpicture}
\end{document}

This is very easy to do with some basic knowledge about tikz, but as mentioned in chat, this is not a please do this for me service. You need to place 9 boxed nodes at certain coordinates. Name each box, for example LI1 (as in left I1) etc, then make the arrows. — daleif, Sep 16 '21 at 07:16
what about https://tex.stackexchange.com/questions/353775/tikz-curved-arrows-overlapping-nodes ? — Rmano, Sep 16 '21 at 07:33
Your below of is overriding the right of... Will see if I can answer later. — Rmano, Sep 17 '21 at 06:00

score 4 · Accepted Answer · answered Sep 17 '21 at 08:09

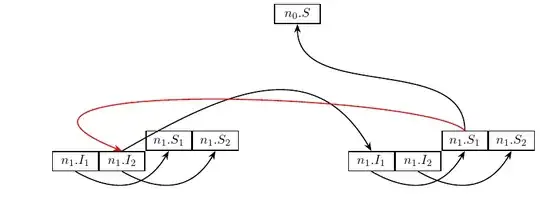

This is an example. I am using manual positioning of the boxes (they touch in different ways in your original picture, so I do not think that using positioning is the right tool here). I added a few possible arrows to show the idea, your MWE connections did not correspond to the diagram above.

I would suggest using more explicit node names (like I1left, I2left etc.) that could even led to streamlining the diagram with some \foreach loop, but I just did the minimum work here to show the idea.

\documentclass[border=2.78mm]{standalone}
\usepackage{tikz}
\usetikzlibrary{calc,arrows.meta}%arrows is deprecated
\begin{document}
\begin{tikzpicture}[->,>=Stealth,auto,
  thick,main node/.style={draw, rectangle, align=center, text width=1cm}]
\node[main node, ] (1) at (0,4)    {$n_0.S$};
% stack left
\node[main node, ] (2) at (-6,0)   {$n_1.I_1$};
\node[main node, anchor=north west] (3) at(2.north east) {$n_1.I_2$};
\node[main node, anchor=south west] (4) at(3.north east) {$n_1.S_1$};
\node[main node, anchor=north west] (5) at(4.north east) {$n_1.S_2$};
% stack right
\node[main node, ] (6) at (2,0)   {$n_1.I_1$};
\node[main node, anchor=north west] (7) at(6.north east) {$n_1.I_2$};
\node[main node, anchor=south west] (8) at(7.north east) {$n_1.S_1$};
\node[main node, anchor=north west] (9) at(8.north east) {$n_1.S_2$};
\draw (2.south) to[out=-30, in=-120, looseness=1.2] (4.south);
\draw (3.south) to[out=-30, in=-120, looseness=1.2] (5.south);
\draw (6.south) to[out=-30, in=-120, looseness=1.2] (8.south);
\draw (7.south) to[out=-30, in=-120, looseness=1.2] (9.south);
\draw (3.north) to[out=30, in=120, looseness=1.2] (6.north);
\draw (8.north) to[out=90, in=-90] (1.south);
% the control points are relative to the star point here
\draw[red] (8.north) .. controls +(-1,1) and +(-5,2) .. (3.north);
\end{tikzpicture}
\end{document}
