New element symbol

Question

I want to design a new element symbol. How can I add the red line and blue line (different codes \myin \mynotin ) to my code?

\documentclass[a5paper]{article}
\usepackage[margin=1.5cm]{geometry}
\usepackage{tikz}
\def\h {1.3ex} % cup and cap height
\def\w {1.2ex} % cup and cap width
\def\lw{0.12ex} % cup and cap line width
\def\spp{0.7269ex} % space before and after
\newcommand{\myinn}[1]
{
  \hspace{\spp}
  \tikz[line width=\lw,line cap=round,rotate=#1,baseline=-0.4ex]
  {\draw (-0.5\w,0.5\h) -- (-0.5\w,0.5\w-0.5\h)
  arc (-180:0:0.5\w) -- (0.5\w,0.5\h);}
  \hspace{\spp}
}
\newcommand{\myin}{\myinn{270}}
\begin{document}
[\myin]
\end{document}

hm, $\in$, $\notin$? or should be symbol elements colored as shown on image? — Zarko, Oct 03 '21 at 15:26
why you like to draw this symbols if they already exist? I do not understand your intention :-( — Zarko, Oct 03 '21 at 15:31
I know you are right. I would like to know this code too. Can you help me ?@Zarko — suarez, Oct 03 '21 at 16:09

score 2 · Answer 1 · answered Oct 03 '21 at 16:17

2

It is not entirely clear, what is your problem. Exercise with drawing symbols as pictures (not recommended for use in documents) or to have symbols appropriate size.

Anyway, the standard use of your symbols:

\documentclass{standalone}
\begin{document}
text $\in$, $\notin$
\end{document}

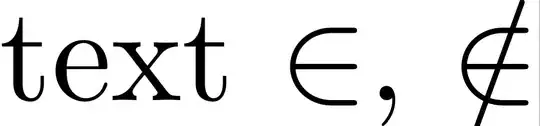

gives good match sizes of symbols and text:

If this is not your problem/concern, please edit your question and clarify, what you like to have.

answered Oct 03 '21 at 16:17

Zarko

296,517

I want to re-encode the element symbol. I wrote some of the code but I couldn't create the middle line. – suarez Oct 03 '21 at 16:20

score 1 · Answer 2 · answered Oct 04 '21 at 01:37

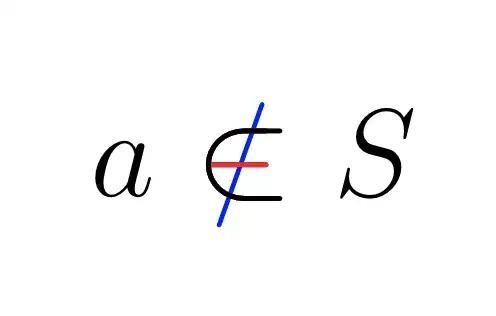

This produces your desired effect:

\usepackage{xcolor}
\usepackage{calc}
\newlength{\len}
\settowidth{\len}{$\notin$}
\newcommand{\mynotin}{\mbox{
{\color{blue}$\notin$}%
$\hspace{-\len}${\color{red}$\in$}%
$\hspace{-\len}${\color{black}$\subset$}%
}}
$a \mynotin\ S$
