I have a problem with some packages interfering (I think). I am working on a document where I both want to have a tikz diagram and a table with some of the cells colored. For the cell color, I use the xcolor package, which gave an error that I tried solving with what was said here: Option clash for package xcolor.

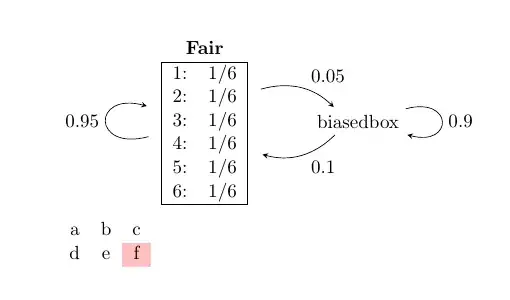

As is, the code works, but I want to use the commented out 'biasedstate' box, instead of simply typing 'biasedbox' as is done now (so where I define the tikzpicture, I want to replace 'biasedbox' with \usebox{\biasedstate}). However, simply uncommenting the code for the biasedstate box gives an error and I don't understand why.
I know that it has to do with the xcolor package because when I remove ',table' from the first line and remove \cellcolor{red!25}, the biasedstate box works fine.
\documentclass[11pt,A4paper,table]{article}%
\usepackage{tikz-cd}
\usetikzlibrary{positioning}
\usepackage{tabularx}
\newsavebox{\fairstate}
\newsavebox{\biasedstate}
\sbox{\fairstate}{
\begin{tabular}{|l r|}
\multicolumn{2}{c}{\textbf{Fair}} \tabularnewline
\hline
1: & 1/6\
2: & 1/6\
3: & 1/6\
4: & 1/6\
5: & 1/6\
6: & 1/6\
\hline
\end{tabular}
}
%\sbox{\biasedstate}{
% \begin{tabular}{|l r|}
% \multicolumn{2}{c}{\textbf{Biased}} \tabularnewline
% \hline
% 1: & 1/10\
% 2: & 1/10\
% 3: & 1/10\
% 4: & 1/10\
% 5: & 1/10\
% 6: & 1/2\
% \hline
% \end{tabular}
%}
\begin{document}
\begin{tikzpicture}[>=stealth,->,shorten >=1pt,looseness=1,auto]
\matrix [matrix of nodes] {
\node (fair) [shape=rectangle] {\usebox{\fairstate}};
\node (biased) [shape=rectangle,right=of fair] {biasedbox};\
};
\draw (fair) to [bend left] node [pos=0.55] {0.05} (biased);
\draw (biased) to [bend left] node [pos=0.45] {$0.1$} (fair);
\path[every node/.style={auto=false},every loop/.style={looseness=5}]
(fair) edge [loop left] node [midway] {0.95} ()
(biased) edge [loop right] node [midway] {0.9} ();
\end{tikzpicture}
\begin{tabularx}{300pt}{ccc}
a&b&c\
d&e&\cellcolor{red!25}f
\end{tabularx}
\end{document}
