6

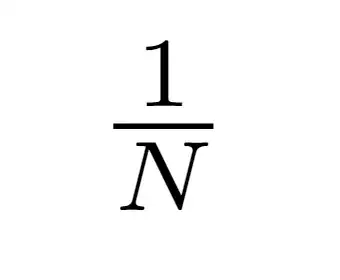

1) How can we control the vertical alignment of this fraction line?

2) I'm also looking for a way to make the ends of the fraction line round.

I know doing these will cause problems. I'm just wondering how to do something like this.

enter image description here

Pitaya88
  • 377
  • 3
    By design, TeX places the fraction line on the math axis. Where is the math axis, you may ask? The - symbol is placed on the math axis, and the = symbol straddles the math axis. That way, in the expression \frac{1}{2}-\frac{1}{3}, the fraction lines and the - symbol are all on the same level. Any other positioning choice would look both weird and wrong. Are you thus asking how to shift the entire math axis? – Mico Oct 15 '21 at 06:55
  • I'm asking for a way to adjust the height of the expressions in the numerator and denominator of this fraction line. Or a new fraction line definition where we can control everything... @Mico – Pitaya88 Oct 15 '21 at 07:41

1 Answers1

5

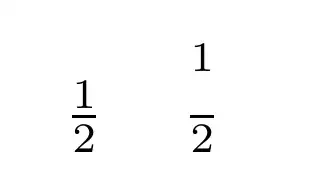

The font parameters 8,9,10,11,12 determine the position of numerator and denominator see

What do different \fontdimen<num> mean

You can not draw the rule using different style unless you abandon the TeX fraction primitives alltogether and draw the rule by hand using tikz or similar. (the rule thickness is however settable).

enter image description here

\documentclass{article}

\begin{document}


$\frac{1}{2}$
\quad
\fontdimen9\textfont2=10pt
$\frac{1}{2}$
\end{document}
David Carlisle
  • 757,742
  • Is it possible to do this for "only" one fraction line? @David Carlisle – Pitaya88 Oct 15 '21 at 08:14
  • 1
    @Pitaya88 you can do it in a group so it only affects one math list but not much point doing it for a single fraction would be easier to do \frac{\rule[10pt]{0pt}20pt}1}{2} or whatever rule you want to force some padding – David Carlisle Oct 15 '21 at 08:19
  • \frac{\rule[10pt]{0pt}20pt}1}{2} this code not worked @David Carlisle – Pitaya88 Oct 15 '21 at 08:41
  • 1
    @Pitaya88 typo, $\frac{\rule[-10pt]{0pt}{20pt}1}{2}$ – David Carlisle Oct 15 '21 at 09:16
  • Finally, can we align the denominator vertically? @David Carlisle – Pitaya88 Oct 15 '21 at 09:44
  • 1
    don't ask new questions in comments (but I have no idea what you mean by that sorry) the rule is aligned on the math axis so all you can do (if using tex fraction primitives) is move the text relative to that rule. – David Carlisle Oct 15 '21 at 09:48
