Fit text in a circular shape

Question

I'm trying to fit a text within the arrows but in a circular shape, however, the text doesn't bend nicely.

 \documentclass[border=5mm]{standalone}
\usepackage{tikz}
 \usetikzlibrary{arrows}
 \begin{document}
 \begin{tikzpicture}[paths/.style={->, thick, >=stealth'}]
\node (species_1) at (-3,0.5) {};
\node (species_2) at (0,0)
     {};
\node (species_3) at (2,-2)
     {};
\node (species_4) at (0,-4)
     {};
\node (species_5) at (-2,-2)
     {};
\node (species_6) at (-3,-4)
     {};
\draw[-triangle 90 cap, very thick,double, double distance=9pt] (species_2) to [bend left=40] node[black, sloped,bend left=40]{Develop}  (species_3);
\draw[-triangle 90 cap, very thick,double, double distance=9pt]  (species_3) to [bend left=40] node[black, sloped] {Design} (species_4);
\draw[-triangle 90 cap, very thick,double, double distance=9pt]  (species_4) to [bend left=40] node[black, sloped] {Plan} (species_5);
\draw[-triangle 90 cap, very thick,double, double distance=9pt]  (species_5) to [bend left=40] node[black, sloped] {Deploy} (species_2);
\draw[-triangle 90 cap, very thick,double, double distance=9pt]  (species_6) to node[black, sloped] {Plan}(species_4);
\end{tikzpicture}
 \end{document}

Update,

I managed to use the code in the link provided, now how can I use the same code to have the same drawing aligned vertically?

Code:

\documentclass[border=5pt]{standalone}
\usepackage{xcolor}
\definecolor{ocre}{HTML}{800000}
\definecolor{sky}{HTML}{C6D9F1}
\definecolor{skybox}{HTML}{5F86B3}
\usepackage{tikz}
\usepackage{pgfmath}
\usetikzlibrary{decorations.text, arrows.meta,calc,shadows.blur,shadings}
% arctext from Andrew code with modifications:
%Variables: 1: ID, 2:Style 3:box height 4: Radious 5:start-angl 6:end-angl 7:text {format along path}
\def\arctext[#1][#2]#3(#5)(#6)#7{
\draw[#2] (#5:#4cm+#3) coordinate (above #1) arc (#5:#6:#4cm+#3)
             -- (#6:#4) coordinate (right #1) -- (#6:#4cm-#3) coordinate (below right #1) arc (#6:#5:#4cm-#3) coordinate (below #1)
             -- (#5:#4) coordinate (left #1) -- cycle;
            \def\a#1{#4cm+#3}
            \def\b#1{#4cm-#3}
\path[
    decoration={
        raise = -0.5ex, % Controls relavite text height position.
        text  along path,
        text = {#7},
        text align = center,

    },
    decorate
    ]
    (#5:#4) arc (#5:#6:#4);
}
%arcarrow, this is mine, for beerware purpose...
%Function: Draw an arrow from arctex coordinate specific nodes to another
%Arrow start at the start of arctext box and could be shifted to change the position
%to avoid go over another box.
%Var: 1:Start coordinate 2:End coordinate 3:angle to shift from acrtext box

\def\arcarrow(#1)(#2)[#3]{
    \draw[thick,->,>=latex]
        let \p1 = (#1), \p2 = (#2), % To access cartesian coordinates x, and y.
            \n1 = {veclen(\x1,\y1)}, % Distance from the origin
            \n2 = {veclen(\x2,\y2)}, % Distance from the origin
            \n3 = {atan2(\y1,\x1)} % Angle where acrtext starts.
        in (\n3-#3: \n1) -- (\n3-#3: \n2); % Draw the arrow.
}
\begin{document}
    \begin{tikzpicture}[
        % Environment Cfg
        font=\sf    \scriptsize,
        % Styles
        myarrow/.style={
            thick,
            -latex,
        },
        Center/.style ={
            circle,
            fill=ocre,
            text=white,
            align=center,
            font =\footnotesize\bf,
            inner sep=1pt,

        },
        RedArc/.style ={
            color=black,
            thick,
            fill=ocre,
            blur shadow, %Tikzedt not suport online view
        },
        SkyArc/.style ={
            color=skybox,
            thick,
            fill=sky,
            blur shadow, %Tikzedt not suport online view
        },
    ]
% Drawing the center
\node[Center](SOSA) at (0,0) {Team 1\\ Blog};
\coordinate (SOSA-R) at (0:1.2); % To make compatible with \arcarrow macro.

% Drawing the Tex Arcs

% \Arctext[ID][box-style][box-height](radious)(start-angl)(end-angl){|text-styles| Text}

\arctext[SSN][SkyArc][8pt](1.5)(25)(-20){|\footnotesize\color{black}|Design};
\arctext[SCap][SkyArc][8pt](1.5)(75)(27){|\footnotesize\color{black}| Develop};
\arctext[SRel][SkyArc][8pt](1.5)(107)(77){|\footnotesize\color{black}| Test};
\arctext[SRel][SkyArc][8pt](1.5)(152)(109){|\footnotesize\color{black}|Deploy};
\arctext[SRel][SkyArc][8pt](1.5)(200)(154){|\footnotesize\color{black}|Review};
\draw[-stealth, ultra thick](-2,-1)to node[below, midway]{Sprint 1}++(4,0);





%Drawing the Arrows
%\arcarrow(above/below ID)(abobe/below ID)[shift]




%    %Same level Arrows
%    \draw[myarrow] (left SSNX) -- (right DUAM);
%    \draw[myarrow] (left SSN) -- (left SRel);
%    \draw[myarrow] (left SCap) -- (right SSN);
\end{tikzpicture}


\end{document}

https://tex.stackexchange.com/questions/433191/simplest-way-to-create-a-ring-diagram-in-tikz-with-multiple-connected-rings/433463#433463 — js bibra, Oct 16 '21 at 06:31
The only problems i see are that Test and Develop are not symmetrical, which can be fixed by adding or removing spaces. — John Kormylo, Oct 16 '21 at 17:09

score 2 · Answer 1 · answered Mar 16 '22 at 07:31

I saw this when the bot updated something in this post, so since I was here I have to leave a reduced code with some of the things that are interpreted as requested. I added some things I learned along the way.

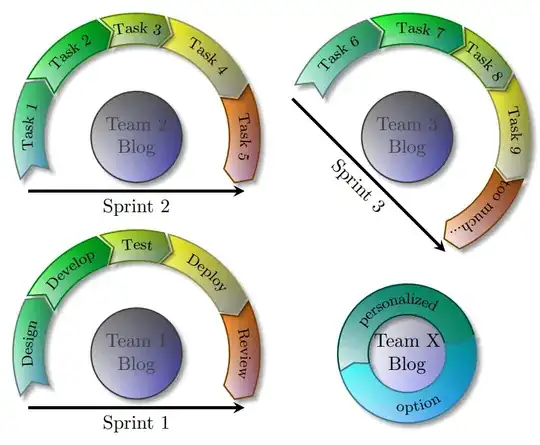

RESULT:

MWE:

\documentclass[border=5pt]{standalone}
\usepackage[dvipsnames]{xcolor}
\usepackage{tikz}
\usepackage{pgfmath}
\usetikzlibrary{decorations.text, arrows.meta,calc,shadows.blur,shadings}
% arctext from Andrew code with modifications:
%Variables: 1: ID, 2:Style 3:box height 4: Radious 5:start-angl 6:end-angl 7:text {format along path}
\def\arctext[#1][#2][#3](#4)(#5)(#6)#7{
    \draw[#2] (#5:#4cm+#3) coordinate (above #1) arc (#5:#6:#4cm+#3)
    -- (#6-5:#4) coordinate (right #1) -- (#6:#4cm-#3) coordinate (below right #1) arc (#6:#5:#4cm-#3) coordinate (below #1)
    -- (#5-5:#4) coordinate (left #1) -- cycle;
    \path[
    decoration={
        raise = -0.5ex, % Controls relavite text height position.
        text  along path,
        text = {#7},
        text align = center,
    },
    decorate
    ]
    (#5-5:#4) arc (#5-5:#6:#4);
}
\begin{document}
    \begin{tikzpicture}[
        % Styles
        ShdShape/.style ={
            color=#1!50!black,
            thick,
            upper left=#1,
            upper right=black!50!#1,
            lower left=white,
            lower right=blue!50!#1,
            blur shadow, %Tikzedt not suport online view
        }
        ]

        % you can anidate this in a new drawing definition
        \def\Sprint#1[#3]#4#5#6#7#8{
            \begin{scope}[shift={(#1)},rotate=#2]
                \nodeShdShape=gray,draw,align=center,circle at (0,0) {Team #3 \ Blog};
                \arctext[SSN][ShdShape=orange]8pt(25)(-20){|\footnotesize\color{black}|#8};
                \arctext[SCap][ShdShape=yellow]8pt(75)(27){|\footnotesize\color{black}|#7};
                \arctext[SRel][ShdShape=lime]8pt(107)(77){|\footnotesize\color{black}|#6};
                \arctext[SRel][ShdShape=green]8pt(152)(109){|\footnotesize\color{black}|#5};
                \arctext[SRel][ShdShape=SeaGreen]8pt(200)(154){|\footnotesize\color{black}|#4};
                \draw-stealth, ultra thickto node[below, midway,rotate=#2]{Sprint #3}++(4,0);
            \end{scope}
        }
    %Then draw many of these in other positions...
    \Sprint[0,0](0)[1]{Design}{Develop}{Test}{Deploy}{Review}
    \Sprint[0,4](0)[2]{Task 1}{Task 2}{Task 3}{Task 4}{Task 5}
    \Sprint[5,4](-45)[3]{Task 6}{Task 7}{Task 8}{Task 9}{too much...}

    %Or you can shift or rotate a part of new drawings using scope.
    \begin{scope}[shift={(5,0)},rotate=15]
    \node[ShdShape=white,draw,align=center,circle,text=black](CENTER) at (0,0) {Team X \\ Blog};
    \arctext[SSN][ShdShape=blue!50!green][8pt](1)(180)(0){|\footnotesize\color{black}|personalized};
    \arctext[SCap][ShdShape=cyan][8pt](1)(180)(360){|\footnotesize\color{black}|option};
    \end{scope}

\end{tikzpicture}
\end{document}

score 0 · Answer 2 · answered Oct 16 '21 at 13:44

0

Hope you expect this (Thanks to Herbert Voss and Timothy Van Zandt for releasing PSTricks tutorial):

\documentclass[12pt]{book}
\usepackage{PSTricks}
\usepackage{pst-text}
\begin{document}
\LARGE
\psset{linestyle=none}%
\pstextpath[c]{\psarcn(0,0){1.8}{180}{0}}{Centre National de la}
\pstextpath[c]{\psarc(0,0){1.8}{180}{0}}{Recherche Scientifique}
\end{document}

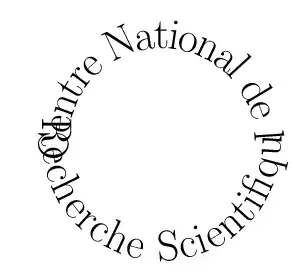

Output

Note that use LaTeX->dvips->PS2PDF to get better output...

answered Oct 16 '21 at 13:44

MadyYuvi

13,693

I actually managed to get them in circular shape as in the second code, but I need the same drawing to be repeated three time vertically – Diana Oct 16 '21 at 15:23
