How to make squiggly arrow with head going the opposite way

Question

I'd like to have an arrow symbol that's like /rightsquigarrow, but, instead of a normal arrow, the head goes in the opposite way. So, rather than looking like --> (but squiggly), looks like --< (but squiggly). Thanks!

Welcome to Maths SX! Why not looking like <-- ? What would be the meaning of waht you're asking for? — Bernard, Nov 07 '21 at 21:15
I'm looking for a symbol to express incompatibility. So, in the notation I'd like to have, "p --> q" would express that p implies q, whereas "p --< q" would express that p is incompatible with q. "p <-- q" would, by contrast, express that q implies p. — Ryan Simonelli, Nov 07 '21 at 21:21
That would express that p implies not-q. Though that's the case just in case p is incompatible with q, that's a result of the formal system I develop, and I need a bit of notation to express incompatibility in order to say, for instance, that p implies not-q just in case p is incompatible with q.
It's important for what I'm doing that implication and incompatibility are treated as equally basic, and it'd be nice for the notation to reflect that. — Ryan Simonelli, Nov 07 '21 at 21:27
A squiggle headed with a vertical line, rather than an arrow-head, would also probably work just as well. I just need something to express incompatibility as a complement to /rightsquigarrow's expressing implication. — Ryan Simonelli, Nov 07 '21 at 21:30
There's also symbols - Crossing out arrows - TeX - LaTeX Stack Exchange — user202729, Nov 08 '21 at 07:55
Actually math mode - Strike out an arrow with a small oblique segment like with \nrightarrow - TeX - LaTeX Stack Exchange is probably better (claimed) — user202729, Nov 08 '21 at 07:56

score 4 · Accepted Answer · answered Nov 07 '21 at 21:31

It is not so hard to construct such a symbol using TikZ.

\documentclass{article}
\usepackage{amsmath, amssymb}
\usepackage{tikz}
\usetikzlibrary{decorations.pathmorphing}
\newcommand*{\rightsquigarrowrev}{%
    \mathrel{\raisebox{.5mm}{%
        \begin{tikzpicture}
            \draw[-<, line cap=round, decorate, decoration={
                zigzag,
                segment length=3.7,
                amplitude=.8,
                post length=2pt
            }] (0,0) -- (.3,0);
        \end{tikzpicture}%
    }}%
}
\begin{document}

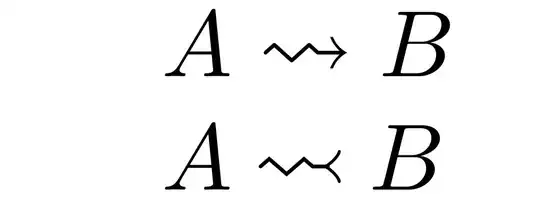

\(A \rightsquigarrow B\)
(A \rightsquigarrowrev B)
\end{document}
