Creating a table with merged cells in RevTex 4.2 template

Question

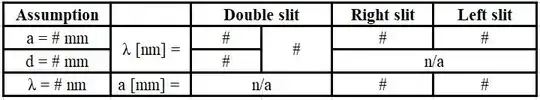

I'm trying to create a table that looks like this:

I'm using the RevTex 4.2 Template. I've been reading this thread but am a beginner with Latex and am not sure how to modify it to make the table I want.

Welcome to TeX.SE :) // May I suggest this read for you? https://en.wikibooks.org/wiki/LaTeX . Once you've some more basic knowledge about Latex, things will become easier for you. At the moment, you've chosen a task too much, in my understanding. — MS-SPO, Nov 12 '21 at 16:39

score 2 · Answer 1 · answered Nov 12 '21 at 20:31

2

With {NiceTabular} of nicematrix.

\documentclass{revtex4-2}
\usepackage{nicematrix}
\usepackage{geometry}
\usepackage{caption}
\begin{document}
\begin{table}
\small
\begin{NiceTabular}{ccwc{1cm}wc{1cm}cc}[hvlines,cell-space-limits=2pt]
\RowStyle[bold]{}
Assumption & & \multicolumn{2}{c}{Double slit} & Right slit & Left slit \
$a=#$ mm & \Block{2-1}{$\lambda$ [nm] = } & # & \Block{2-1}{#} & # & # \
$d=#$ mm &                          & # &                 & \Block{1-2}{n/a} \
$\lambda = #$ mm & $a$ [mm] = & \Block{1-2}{#} & & # & #
\end{NiceTabular}
\end{table}
\end{document}

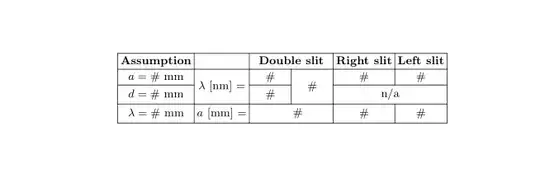

You need several compilations (because nicematrix uses PGF/Tikz nodes under the hood).

answered Nov 12 '21 at 20:31

F. Pantigny

40,250

Thank you! That worked well. The only problem is I'm getting an error with the line \RowStyle[bold]{}: "Package nicematrix Error: As for now, there is only three keys available." But this isn't a big problem since I can use \textbf{ } for the column titles. – Jaqueline Bernard Nov 13 '21 at 18:54
I think that you have not the latest version of nicematrix. – F. Pantigny Nov 13 '21 at 19:15
How can I get the latest version? I'm using Overleaf. – Jaqueline Bernard Nov 13 '21 at 19:56
Overleaf has not the latest version of nicematrix. You should upload the latest version of the file nicematrix.sty in the repertory of your Overleaf project. You can find that file on the SVN server of TeXLive: www.tug.org/svn/texlive/trunk/Master/texmf-dist/tex/latex/nicematrix/nicematrix.sty – F. Pantigny Nov 13 '21 at 20:22
Ok thanks! @F. Pantigny – Jaqueline Bernard Nov 13 '21 at 23:26

score 2 · Accepted Answer · answered Nov 12 '21 at 22:08

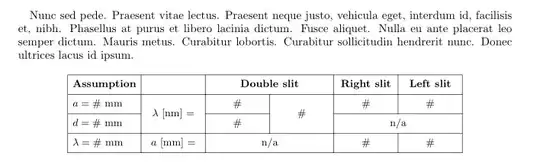

With tabularray:

\documentclass{revtex4-2}
\usepackage{geometry}
\usepackage{tabularray}
\usepackage{caption}
\usepackage{lipsum}
\begin{document}
\lipsum[66]
    \begin{table}[ht]
    \centering
\begin{tblr}{width=0.8\linewidth,
            hlines=0.4pt, vlines=0.4pt,
            colspec = {l *{5}{X[c,m]}},
             colsep = 4pt,
             row{1} = {font=\small\bfseries},
             rowsep = 3pt
            }
Assumption  &   & \SetCell[c=2]{c} Double slit

                        &   & Right slit    & Left slit \
$a=#$ mm   & \SetCell[r=2]{c} $\lambda$ [nm] =
                & #    & \SetCell[r=2]{c} #

                            & #            & #        \
$d=#$ mm   &   & #    &   & \SetCell[c=2]{c} n/a

                                            &           \
$\lambda = #$ mm
            & $a$ [mm] =& \SetCell[c=2]{c} n/a
                            &   & #        & #        \
\end{tblr}
    \end{table}
\end{document}

@JaquelineBernard, now you can select the answer which solve your problem on the best way ... and accept it (by clicking on the check mark at top left side of answer) :-) — Zarko, Nov 13 '21 at 19:02
