Is there a simple way to represent a triangular matrix as a triangle, like Pascal's triangle?

I've seen various solutions that display Pascal's triangle, but I think that there should be a straight-forward command to display any general triangular matrix in a similar way from a LaTeX or from a SageMath input matrix.

As an example was requested, let me paste here dalibor.zeleny's solution from one of the links:

\begin{tikzpicture}
\foreach \n in {0,...,4} {
  \foreach \k in {0,...,\n} {
    \node at (\k-\n/2,-\n) {${\n \choose \k}$};
  }
}
\end{tikzpicture}

This produces: enter image description here

domotorp
  • 389
  • Are, please, you able to get a code? If your answer it is yes, could you add here? Thank you for your collaboration. – Sebastiano Nov 30 '21 at 12:33
  • So, what you mean is that you would like to have an input such as a \\ a & b \\ a & b & c \\ etc. and this should render as a triangular matrix? – Jasper Habicht Nov 30 '21 at 13:16
  • Here is another solution that you might find useful, but only for smaller triangles: https://tex.stackexchange.com/q/142132/224487 .

    For larger triangles, I think the scripts provided in dalibor.zeleny's question would be more appropriate. Link to their question: https://tex.stackexchange.com/q/17522/224487

    – LightninBolt74 Nov 30 '21 at 13:38
  • How would such a matrix look like when exported from SageMath? Just like a comma separated list, or differently? – Jasper Habicht Nov 30 '21 at 13:55

1 Answers1

7

As noted in the comments, there are loads of solutions for Pascal's triangles on this site already. However, I understand your question rather that you want to have something where you can input an arbitrary list of entries and these will then arrange according to a triangular matrix automatically.

The following would do just this (still based in TikZ):

\documentclass{article}
\usepackage{tikz}

\newcounter{tmline} \newcounter{tmposn} \newcommand{\tmatrix}[2][]{% \begin{tikzpicture}[#1] \setcounter{tmline}{1} \setcounter{tmposn}{0} \foreach \k in {#2} { \stepcounter{tmposn} \node[anchor=base] at (\thetmposn-\thetmline/2,-\thetmline) {${\k}$}; \ifnum\thetmposn=\thetmline\stepcounter{tmline}\setcounter{tmposn}{0}\fi } \end{tikzpicture}% }

\begin{document}

\tmatrix{1,2,3,4,5,6}

\bigskip

\tmatrix[y=.75cm, x=1.25cm]{1,2,3,4,5,6,a,b,2x+4y,\sqrt{2},\frac{3}{4},\sum^n_{i=0}{x^i},\textrm{out},\textrm{of},\textrm{ideas}}

\end{document}

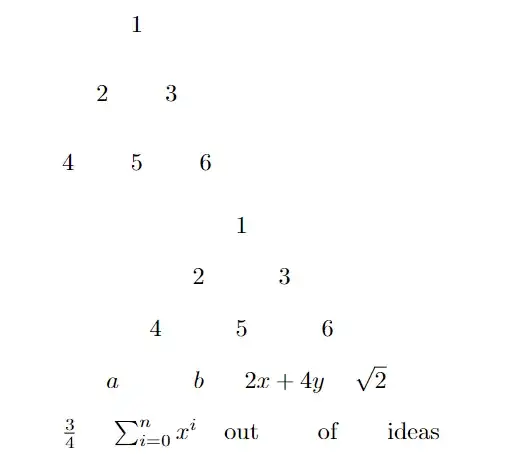

enter image description here
