Complete vertical lines in LaTeX table

Question

The following code:

\documentclass{article}
\usepackage[utf8]{inputenc}
\usepackage{tabularx}
\usepackage{chemfig}
\usepackage{booktabs}
\usepackage{multirow}
\usepackage{caption}
\begin{document}
\maketitle
% Table generated by Excel2LaTeX from sheet 'Hoja1'
\begin{table}[htbp]
  \centering
  \caption{Add caption}
    \begin{tabular}{|c|c|c|}
    \toprule
    \multicolumn{1}{|p{5.215em}|}{Case Study} & \multicolumn{1}{p{4.57em}|}{H2O inlet (m/s)} & \multicolumn{1}{p{4.5em}|}{CO2 inlet (m/s)} \
    \midrule
    1     & \multirow{3}[6]{}{0.05} & 0.75 \
\cmidrule{1-1}\cmidrule{3-3}    2     &       & 1 \
\cmidrule{1-1}\cmidrule{3-3}    3     &       & 1.5 \
    \midrule
    4     & \multirow{3}[6]{}{0.075} & 0.75 \
\cmidrule{1-1}\cmidrule{3-3}    5     &       & 1 \
\cmidrule{1-1}\cmidrule{3-3}    6     &       & 1.5 \
    \midrule
    7     & \multirow{3}[6]{*}{0.1} & 0.75 \
\cmidrule{1-1}\cmidrule{3-3}    8     &       & 1 \
\cmidrule{1-1}\cmidrule{3-3}    9     &       & 1.5 \
    \bottomrule
    \end{tabular}%
  \label{tab:addlabel}%
\end{table}%
\end{document}

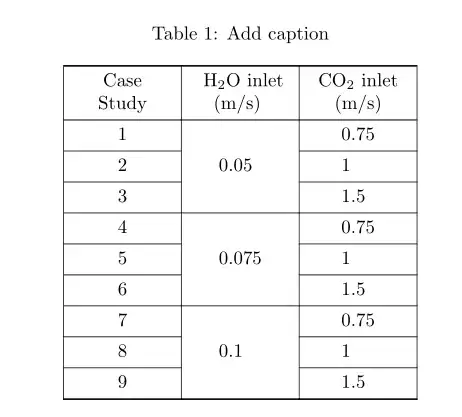

Produces the table shown in the picture.

I would like to complete the vertical lines. What can I do?

please see the booktabs package documentation it explicitly documents that vertical rules should not be used with the package. — David Carlisle, Dec 04 '21 at 17:13
however see this duplicate question for answers using the nicematrix package https://tex.stackexchange.com/a/624792/1090 — David Carlisle, Dec 04 '21 at 17:16
Does this answer your question? How to delete break in table line — mmr, Dec 04 '21 at 17:46

score 1 · Answer 1 · answered Dec 04 '21 at 18:00

The booktabs manual says "never, ever use vertical rules".

You can, however, reduce the spaces in the vertical rules along the lines of:

\setlength{\aboverulesep}{0.1ex}  % default 0.4ex
\setlength{\belowrulesep}{0.1ex}  % default 0.65ex

Doing this, of course defeats the purpose of the booktabs package, but that is up to you

score 0 · Accepted Answer · answered Dec 04 '21 at 19:19

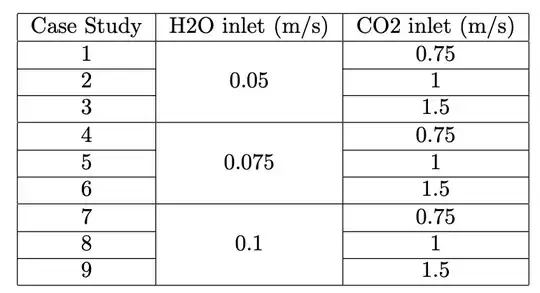

Simply don't use booktabs at all and switch to \hline and \cline. Note your auto-generated markup is a bit overly complicated.

\documentclass{article}
\usepackage{multirow}
\begin{document}
\begin{tabular}{|c|c|c|}
\hline
Case Study & H2O inlet (m/s) & CO2 inlet (m/s) \
\hline
1     & \multirow{3}{}{0.05} & 0.75 \
\cline{1-1}\cline{3-3}    2     &       & 1 \
\cline{1-1}\cline{3-3}    3     &       & 1.5 \
\hline
4     & \multirow{3}{}{0.075} & 0.75 \
\cline{1-1}\cline{3-3}    5     &       & 1 \
\cline{1-1}\cline{3-3}    6     &       & 1.5 \
\hline
7     & \multirow{3}{*}{0.1} & 0.75 \
\cline{1-1}\cline{3-3}    8     &       & 1 \
\cline{1-1}\cline{3-3}    9     &       & 1.5 \
\hline
\end{tabular}
\end{document}

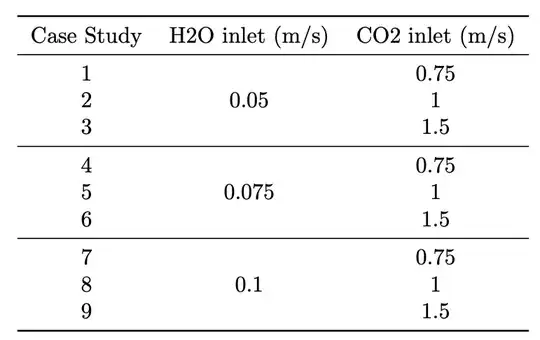

If you do want to use booktabs you really should remove the vertical lines and go with something like

\documentclass{article}
\usepackage{multirow, booktabs}
\begin{document}
\begin{tabular}{ccc}
\toprule
Case Study & H2O inlet (m/s) & CO2 inlet (m/s) \
\midrule
1     & \multirow{3}{}{0.05} & 0.75 \
2     &       & 1 \
3     &       & 1.5 \
\midrule
4     & \multirow{3}{}{0.075} & 0.75 \
5     &       & 1 \
6     &       & 1.5 \
\midrule
7     & \multirow{3}{*}{0.1} & 0.75 \
8     &       & 1 \
9     &       & 1.5 \
\bottomrule
\end{tabular}
\end{document}

Zarko · Answer 3 · 2021-12-05T02:52:37.200

Vertical lines at packages nicetabular and tabularray works well with rules defined in the booktabs package. For example, MWE using tabularray and S column type in columns with numbers, is:

\documentclass{article}
\usepackage{tabularray}
\UseTblrLibrary{booktabs, siunitx}
\usepackage{chemfig}  % if needed
\usepackage[version=4]{mhchem}
\usepackage{caption}
\begin{document}
    \begin{table}[ht]
    \sisetup{per-mode = symbol}
    \centering
\caption{Add caption}
\label{tab:addlabel}
    \begin{tblr}{hline{2-Y}, vlines,
                 colspec = {Q[c,m, wd=5em]
                            Q[c,m, si={table-format=1.3}, wd=5em]
                            Q[c,m, si={table-format=1.2}, wd=5em]}
                 }
    \toprule
{Case\ Study}
    & {{{ \ce{H2O} inlet\ (\si{\meter\per\second}) }}}
        & {{{\ce{CO2} inlet\ (\si{\meter\per\second})}}}   \
1   & \SetCell[r=3]{m}  0.05    & 0.75  \
2   &                           & 1     \
3   &                           & 1.5   \
4   & \SetCell[r=3]{m}  0.075   & 0.75  \
5   &                           & 1     \
6   &                           & 1.5   \
7   & \SetCell[r=3]{m}  0.1     & 0.75  \
8   &                           & 1     \
9   &                           & 1.5   \
    \bottomrule
    \end{tblr}
    \end{table}
\end{document}

Complete vertical lines in LaTeX table
