Aboveskip on minted?

Question

I'm using minted inside a multicol enviroment and would like to remove the spacing at the start of the first column. I found the answer for belowskip and I am looking for the same code for aboveskip:

Belowskip on minted?

Edit: muzimuzhi-z provided a great answer. This allows for nice two column listings:

\documentclass[aspectratio=1610]{beamer}
\usepackage{fancyvrb}
\usepackage{xpatch}
\usepackage{minted}
\makeatletter
% new fancyvrb options "above space" and "below vspace"
\define@key{FV}{above vspace}[\topsep]{\def\FancyVerbAboveVspace{#1}}
\define@key{FV}{below vspace}[\topsep]{\def\FancyVerbBelowVspace{#1}}
% redefine existing option "vspace"
\define@key{FV}{vspace}[\topsep]{%
  \def\FancyVerbAboveVspace{#1}\def\FancyVerbBelowVspace{#1}}
% init
\fvset{vspace}
% patch fancyvrb internals
\xpatchcmd\FV@ListVSpace
  {@topsepadd=\FancyVerbVspace}
  {@topsepadd=\FancyVerbAboveVspace}
  {}{\PatchFailed}
\xpatchcmd\FV@EndList
  {@endparenv}
  {@topsepadd\dimexpr@topsepadd-\FancyVerbAboveVspace
                                 +\FancyVerbBelowVspace\relax
   @endparenv}
  {}{\PatchFailed}
\minted@def@optfv{vspace}
\minted@def@optfv{above vspace}
\minted@def@optfv{below vspace}
\makeatother
\usepackage{tikz}
\usepackage{multicolrule}
\begin{document}
\begin{frame}{Codebox}
\definecolor{codebg}{rgb}{.1, .1, .1}
  \setbeamercolor{blackcodebox}{fg=white,bg=codebg}
  \begin{beamercolorbox}[rounded=true]{blackcodebox}
    \small Comet ML\vspace{4pt}
    \hrule
    \setlength\multicolsep{1pt} % no multicol top margin
    \SetMCRule{line-style=solid-circles,color=white,width=2pt}
    \begin{multicols}{2}
      \setlength{\parskip}{0pt}
      foo
      \usemintedstyle{monokai}
      \inputminted[tabsize=2,breaklines,fontsize=\scriptsize,python3=true,%
        below vspace=0pt,above vspace=0pt]{python}{example.py}
      bar
    \end{multicols}
  \end{beamercolorbox}
\end{frame}
\end{document}

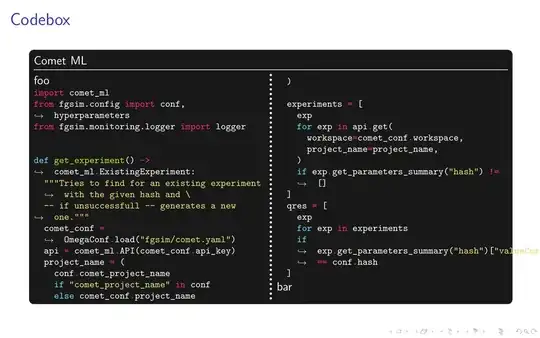

Result:

muzimuzhi Z · Accepted Answer · 2021-12-17T03:42:21.163

fancyvrb has an undocumented option vspace which controls both the above and below skip. This option has default and initial value \topsep and was supported since fancyvrb v3.0 2018/11/01

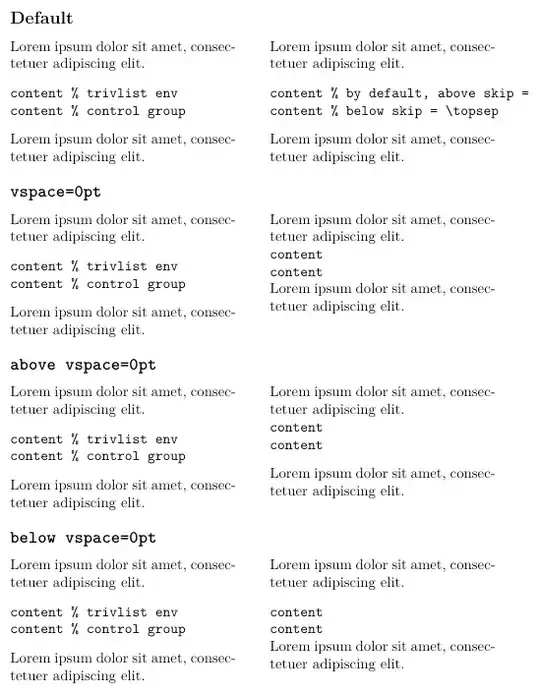

In below example two more options above vspace and below vspace are added. Now

total above skip is <above vspace> + \parskip (+ \partopsep)
total below skip is <below vspace> + \parskip (+ \partopsep)

see https://latexref.xyz/list.html for how the above and below skip is calculated in a normal list.

\documentclass{article}
\usepackage{fancyvrb}
\usepackage{lipsum}
\usepackage{xpatch}
\makeatletter
% new fancyvrb options "above space" and "below vspace"
\define@key{FV}{above vspace}[\topsep]{\def\FancyVerbAboveVspace{#1}}
\define@key{FV}{below vspace}[\topsep]{\def\FancyVerbBelowVspace{#1}}
% redefine existing option "vspace"
\define@key{FV}{vspace}[\topsep]{%
  \def\FancyVerbAboveVspace{#1}\def\FancyVerbBelowVspace{#1}}
% init
\fvset{vspace}
% patch fancyvrb internals
\xpatchcmd\FV@ListVSpace
  {@topsepadd=\FancyVerbVspace}
  {@topsepadd=\FancyVerbAboveVspace}
  {}{\PatchFailed}
\xpatchcmd\FV@EndList
  {@endparenv}
  {@topsepadd\dimexpr@topsepadd-\FancyVerbAboveVspace
                                 +\FancyVerbBelowVspace\relax
   @endparenv}
  {}{\PatchFailed}
\makeatother
\parindent=0pt
\begin{document}
\newcommand\controlGroup[1]{\par
  \subsection*{#1}
  \begin{minipage}[t]{.45\textwidth}
    \lipsum[1][1]
    \begin{flushleft}\ttfamily
    content % trivlist env\
    content % control group
    \end{flushleft}
    \lipsum[1][1]
  \end{minipage}
  \qquad\ignorespaces
}
\controlGroup{Default}
\begin{minipage}[t]{.45\textwidth}
  \lipsum[1][1]
  \begin{Verbatim}
content % by default, above skip =
content % below skip = \topsep
  \end{Verbatim}
  \lipsum[1][1]
\end{minipage}
\controlGroup{\texttt{vspace=0pt}}
\begin{minipage}[t]{.45\textwidth}
  \lipsum[1][1]
  \begin{Verbatim}[vspace=0pt]
content
content
  \end{Verbatim}
  \lipsum[1][1]
\end{minipage}
\controlGroup{\texttt{above vspace=0pt}}
\begin{minipage}[t]{.45\textwidth}
  \lipsum[1][1]
  \begin{Verbatim}[above vspace=0pt]
content
content
  \end{Verbatim}
  \lipsum[1][1]
\end{minipage}
\controlGroup{\texttt{below vspace=0pt}}
\begin{minipage}[t]{.45\textwidth}
  \lipsum[1][1]
  \begin{Verbatim}[below vspace=0pt]
content
content
  \end{Verbatim}
  \lipsum[1][1]
\end{minipage}
\end{document}

The following three lines add minted interface:

\minted@def@optfv{vspace}
\minted@def@optfv{above vspace}
\minted@def@optfv{below vspace}
