I am putting three \aligned environments inside an \equation, so that they are displayed side by side:

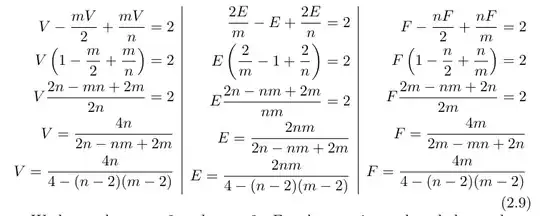

three equations side by side

However, they have many lines and don't fit to the end of the page, and I am left with a large space at the bottom of the page. It would look much better if there was a page break in-between. I tried using \allowdisplaybreaks as suggested here, but it doesn't work.

Is there a way to allow page breaks here, while keeping the multiple column structure? This is the code that generates the image above:

\documentclass{book}
\usepackage{amsmath}

\begin{document} % lots of text here

\begin{equation} \begin{aligned} V - \frac{mV}{2} + \frac{mV}{n} = 2 \ V \left( 1 - \frac{m}{2} + \frac{m}{n} \right) = 2 \ V \frac{2n - mn + 2m}{2n} = 2 \ V = \frac{4n}{2n - nm + 2m} \ V = \frac{4n}{4 - (n-2)(m-2)} \end{aligned} \hspace{.5em} \vline \hspace{.5em} \begin{aligned} \frac{2E}{m} - E + \frac{2E}{n} = 2 \ E \left( \frac{2}{m} - 1 + \frac{2}{n} \right) = 2 \ E \frac{2n - nm + 2m}{nm} = 2 \ E = \frac{2nm}{2n - nm + 2m} \ E = \frac{2nm}{4 - (n - 2)(m - 2)} \end{aligned} \hspace{.5em} \vline \hspace{.5em} \begin{aligned} F - \frac{nF}{2} + \frac{nF}{m} = 2 \ F \left( 1 - \frac{n}{2} + \frac{n}{m} \right) = 2 \ F \frac{2m - nm + 2n}{2m} = 2 \ F = \frac{4m}{2m - mn + 2n} \ F = \frac{4m}{4 - (n - 2)(m - 2)} \end{aligned} \end{equation} \end{document}

Cem
  • 121

0 Answers0
