TikZ: How to put tables within arbitrarily placed nodes?

Question

I have several tables that are related to each other. Based on this question, I tried putting the table within a node within a matrix, but this constrains my tables to be arranged in an array. Since my tables do not naturally fit into an array, I need an alternative solution, but I have not been able to find one. Here's what I have so far:

\documentclass{article}
\usepackage{booktabs}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  \matrix[ampersand replacement=&] {
    \node (somenode) [shape=rectangle,fill=blue!20] at (0.0,0.0) {
      \begin{tabular}{lc} \toprule
        Name & Color  \ \midrule
        A.N. Other & Blue \
        J. Bloggs & Grey \
        \bottomrule
      \end{tabular}
    }; &
    \node (somenode) [shape=rectangle,fill=orange!20] at (1.0,-2.0) {
      \begin{tabular}{lc} \toprule
        Name & Color  \ \midrule
        A.N. Other & Blue \
        J. Bloggs & Grey \
        \bottomrule
      \end{tabular}
    };

    \
  };
\end{tikzpicture}
\end{document}

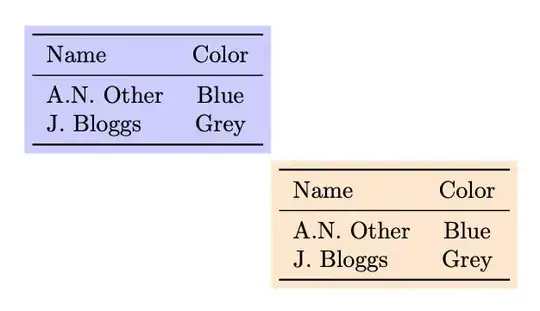

which produces:

What I need to do is:

1. Position the tables arbitrarily,
2. Draw arrows between the tables to indicate their relations,
3. Have text directly above the table (as a sort of caption),

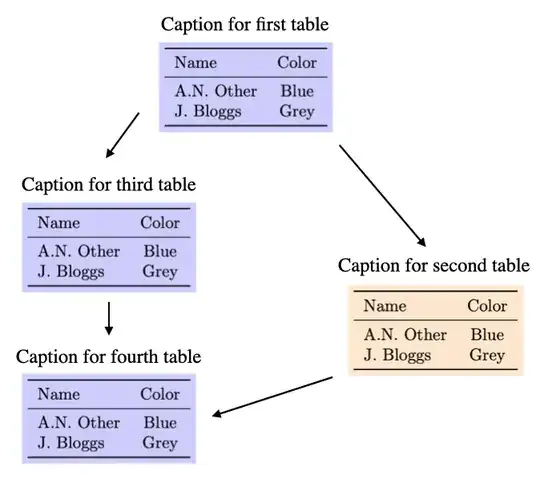

which would end up looking something like this (I've repeated the first table for simplicity but tables 3 and 4 would naturally be different):

Any pointers would be appreciated.

Answer 1

If you want to put the nodes at arbitrary places, why use a matrix? For example:

\documentclass{article}
\usepackage[T1]{fontenc}
\usepackage{tikz}
\usetikzlibrary{arrows.meta}
\usepackage{booktabs}
\begin{document}
\begin{tikzpicture}[]
    \node shape=rectangle,fill=orange!20, align=center at (1.0,-2.0) {
            Caption for table \
            \begin{tabular}{lc} \toprule
                Name & Color  \ \midrule
                A.N. Other & Blue \
                J. Bloggs & Grey \
                \bottomrule
            \end{tabular}
        };
    \node shape=rectangle,fill=blue!20, align=center at (6.0,-7.0) {
            Caption for table \
            \begin{tabular}{lc} \toprule
                Name & Color  \ \midrule
                A.N. Other & Blue \
                J. Bloggs & Grey \
                \bottomrule
            \end{tabular}
        };
    \draw [very thick, -Stealth] (table1) -- (table2);
\end{tikzpicture}
\end{document}

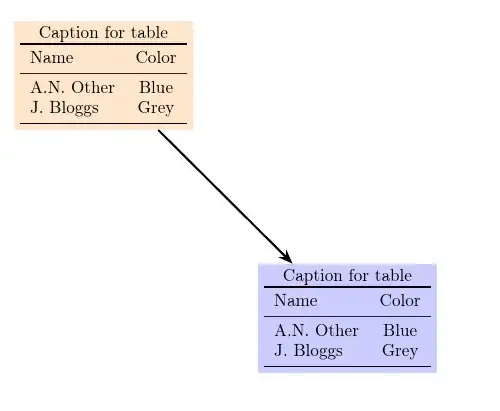

gives:

If you want the label without a background it is just a matter of putting two nodes one at the top of the other (using anchors is quite easy), and to avoid the arrows touching the boxes you can use either shorten > or an outer sep in the nodes.

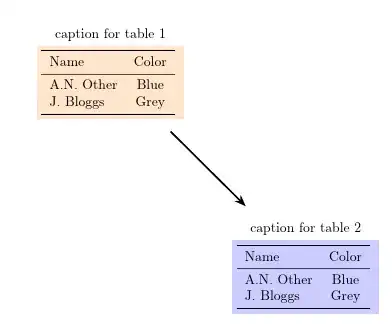

For example, in the next code, I define a macro to position the tabular and its caption, and then I encompass them with a node which is the addressable one.

\documentclass{article}
\usepackage[T1]{fontenc}
\usepackage{tikz}
\usetikzlibrary{arrows.meta, fit}
\usepackage{booktabs}
% arguments are:  name caption content position color
\NewDocumentCommand\mytableat{m m +m m m}{%
    % main node, will contain the table
    \node [shape=rectangle,fill=#5, align=center](#1-t) at (#4) {
        \begin{tabular}{lc} \toprule
            #3
            \bottomrule
        \end{tabular}
    };
    \node [align=center, anchor=south](#1-c) at (#1-t.north) {#2};
    % this is the node encompassing both --- use inner sep to create
    % a white "space" around it
    \node [fit=(#1-t) (#1-c), inner sep=3mm](#1){};
}
\begin{document}
\begin{tikzpicture}[]
    \mytableat{table1}{caption for table 1}{%
                Name & Color  \ \midrule
                A.N. Other & Blue \
                J. Bloggs & Grey \
        }{1, -2}{orange!20}
    \mytableat{table2}{caption for table 2}{%
                Name & Color  \ \midrule
                A.N. Other & Blue \
                J. Bloggs & Grey \
        }{6, -7}{blue!20}
    \draw [very thick, -Stealth] (table1) -- (table2);
\end{tikzpicture}
\end{document}

Answer 2

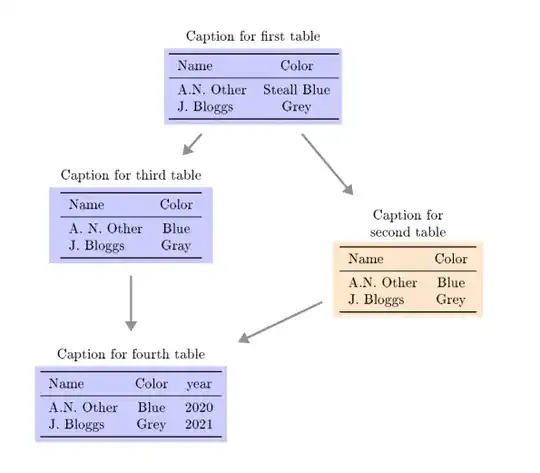

With use of the shapes.multipart library and realtive positioning of nodes:

\documentclass{article}
\usepackage[T1]{fontenc}
\usepackage{tikz}
\usetikzlibrary{arrows.meta,
                positioning,
                shapes.multipart}
\usepackage{booktabs}
\begin{document}
\begin{table}[ht]
\centering
    \begin{tikzpicture}[
every edge/.style = {draw=gray, ultra thick, -Triangle,
                     shorten < =3mm, shorten >=3mm},
    N/.style args = {#1/#2}{rectangle split, rectangle split parts=2,
                            rectangle split part fill={white,#1!20},
                            text width=#2, align=center}
                        ]
\node [N=blue/12em] (t1)

      { Caption for first table
        \nodepart{two}
            \begin{tabular}{lc}
            \toprule
            Name        & Color \
            \midrule
            A.N. Other  & Steall Blue  \
            J. Bloggs   & Grey  \
            \bottomrule
            \end{tabular}
      };
\node [N=orange/10em, below right=2 and 2 of t1.south] (t2)
      { Caption for second table
        \nodepart{two}
            \begin{tabular}{lc}
            \toprule
            Name        & Color \
            \midrule
            A.N. Other  & Blue  \
            J. Bloggs   & Grey  \
            \bottomrule
            \end{tabular}
      };
\node [N=blue/11em, below left=1 and 1 of t1.south] (t3)
      { Caption for third table
        \nodepart{two}
            \begin{tabular}{lc}
            \toprule
            Name        & Color \
            \midrule
            A. N. Other & Blue  \
            J. Bloggs   & Gray  \
            \bottomrule
            \end{tabular}
      };
\node [N=blue/13em, below=2 of t3] (t4)
      { Caption for fourth table
        \nodepart{two}
            \begin{tabular}{lcc}
            \toprule
            Name        & Color & year\
            \midrule
            A.N. Other  & Blue  & 2020\
            J. Bloggs   & Grey  & 2021\
            \bottomrule
            \end{tabular}
      };
\path   (t1) edge (t2)
        (t1) edge (t3)

        (t3) edge (t4)
        (t2) edge (t4);
    \end{tikzpicture}
\end{table}
\end{document}
