How to reproduce a diagram, is there any package that does it?

Question

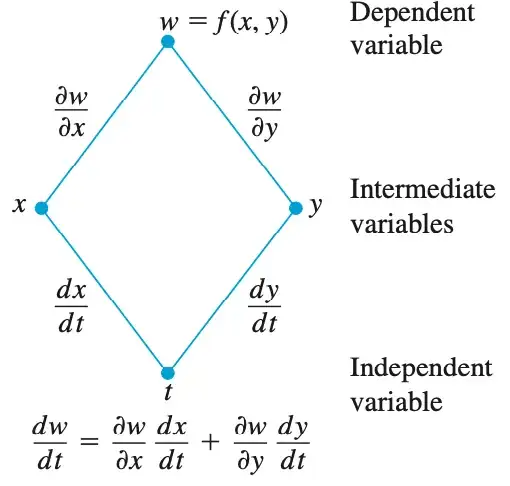

I would like to know if I can get some Help to reproduce the diagram below in beamer. Specifically, are there any great packages to do this sort of diagrams efficiently? thanks!

Using TikZ wouldn't be too hard (in case you haven't heard about it...) ■ Also it's advised that you include some descriptive description of the diagram as text, maybe "diamond diagram for the chain rule for multivariate function" — user202729, Dec 23 '21 at 10:09
Or maybe forest package. e.g. https://tex.stackexchange.com/a/370998/250119 — user202729, Dec 23 '21 at 10:10
The pstricks package can easily do it – more specifically the pst-node package. — Bernard, Dec 23 '21 at 10:44

Black Mild · Accepted Answer · 2022-01-03T04:20:36.593

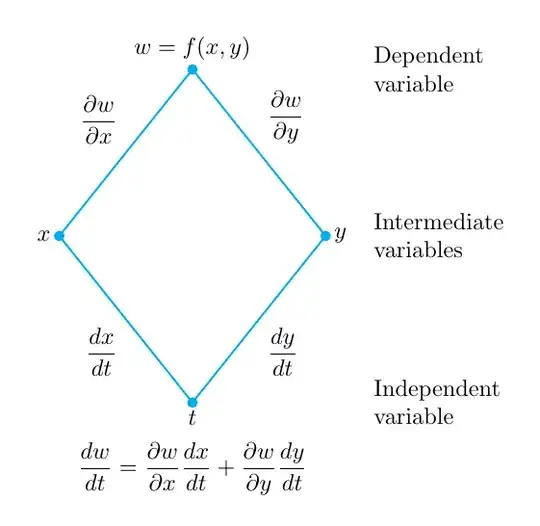

A plain TikZ solution.

\documentclass[tikz,border=5mm]{standalone}
\usepackage{amsmath}
\begin{document}
\begin{tikzpicture}
\def\a{2} \def\b{2.5}
\draw[cyan,thick,c/.style={fill=cyan,circle,inner sep=1.6pt}]
(-\a,0) node[c]{} node[black,left] (x) {$x$}--
(0,-\b) node[c]{} node[black,below] (t) {$t$} node[midway,black,below left]{$\dfrac{dx}{dt}$}--
(\a,0) node[c]{} node[black,right] (y) {$y$} node[midway,black,below right]{$\dfrac{dy}{dt}$}--
(0,\b) node[c]{} node[black,above,align=right] (w) {$w=f(x,y)$}
node[midway,black,above right]{$\dfrac{\partial w}{\partial y}$}--cycle
node[midway,black,above left]{$\dfrac{\partial w}{\partial x}$};
;
\path
(0,-\b-1) node{$\dfrac{dw}{dt}=\dfrac{\partial w}{\partial x}\dfrac{dx}{dt}+\dfrac{\partial w}{\partial y}\dfrac{dy}{dt}$}
(\a+.6,0) node[right,align=left]{Intermediate\\variables}
(\a+.6,\b) node[right,align=left]{Dependent\\variable}
(\a+.6,-\b) node[right,align=left]{Independent\\variable}
;
\end{tikzpicture}
\end{document}

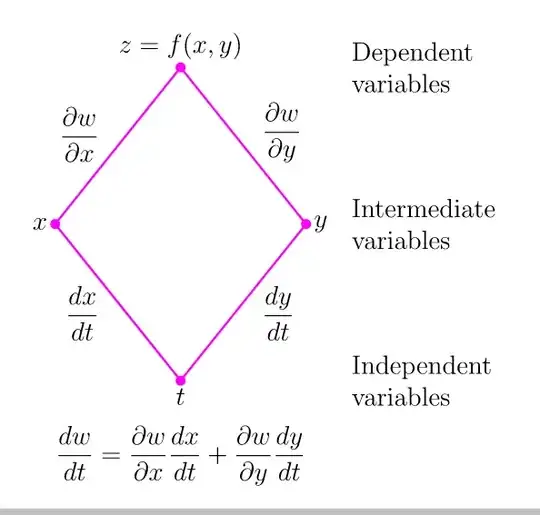

Update: a plain Asymptote version

usepackage("amsmath");
unitsize(1cm);
real a=2, b=2.5;
pair M=(-a,0), N=(0,-b), P=(a,0), Q=(0,b);
draw(Label("$\dfrac{dx}{dt}$",Relative(.4),black),M--N,magenta+1pt);
draw(Label("$\dfrac{dy}{dt}$",Relative(.6),black),N--P,magenta+1pt);
draw(Label("$\dfrac{\partial w}{\partial x}$",Relative(.6),black),Q--M,magenta+1pt);
draw(Label("$\dfrac{\partial w}{\partial y}$",Relative(.4),black),P--Q,magenta+1pt);
for(pair p : new pair[] {M,N,P,Q})
fill(circle(p,.08),magenta);
label("$x$",M,W);
label("$t$",N,S);
label("$y$",P,E);
label("$z=f(x,y)$",Q,plain.N);
label("$\dfrac{dw}{dt}=\dfrac{\partial w}{\partial x}\dfrac{dx}{dt}+\dfrac{\partial w}{\partial y}\dfrac{dy}{dt}$",(0,-b-1.2));
label(minipage("Intermediate variables",2.5cm),(a+.6,0),E);
label(minipage("Dependent variables",2.5cm),(a+.6,b),E);
label(minipage("Independent variables",2.5cm),(a+.6,-b),E);
shipout(bbox(5mm,invisible));

I hope you are not offended. When I see your picture I think of the movie Terminator :-) +1 for your answer. Using newtxtext,newtxmath the code is the almost the same. — Sebastiano, Dec 23 '21 at 17:13
@Sebastiano haha, some people have said me that ^^ I don't know about newtxmath — Black Mild, Dec 25 '21 at 08:07
Please if possible, adding your asymptote code for your asymptote additional tag. — Nguyen Van Chi, Dec 26 '21 at 08:56

WinnieNotThePooh · Answer 2 · 2021-12-26T10:53:42.070

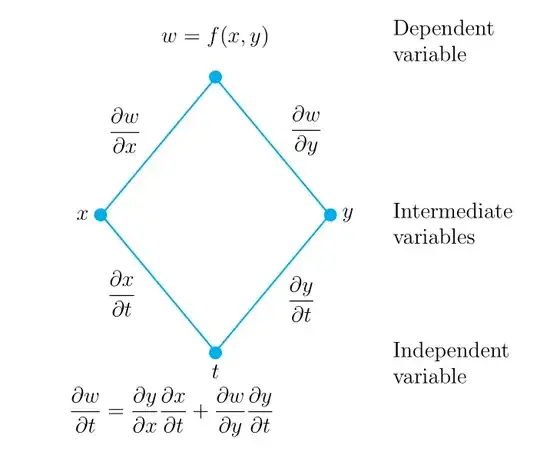

I am not good at tikz, node atc. But I'v tried to help and here is my variant:

\documentclass[a4paper,14pt]{extreport}
\usepackage[left=1.5cm,right=1.5cm,
    top=1.5cm,bottom=2cm,bindingoffset=0cm]{geometry}
\usepackage{amsmath}
\usepackage{tikz}
\usetikzlibrary{shapes.geometric}
\begin{document}
\begin{minipage}[m]{0.5\linewidth}
\begin{flushleft}
\begin{tikzpicture}
\node[diamond,
font=\small,
line width=0.4mm,
scale=0.7,
    draw = cyan,

    %text = red,
    minimum width = 7.5cm,
    minimum height = 9cm] (d) at (0,0) { };
      \node [above=0.5cm] (a) at (d.90) {$w = f(x,y)$};
      \node [above=0.5cm,right=0.1cm] (b) at (d.45) {$\dfrac{\partial w}{\partial y}$};
      \node [above=0.5cm,left=0.1cm] (c) at (d.135) {$\dfrac{\partial w}{\partial x}$};
      \node [left=0.1cm] (dd) at (d.180) {$x$};
      \node [right=0.1cm] (e) at (d.0) {$y$};
      \node [below=0.1cm] (f) at (d.270) {$t$};
      \node [below=0.9cm,right=-0.3cm] (g) at (d.-30) {$\dfrac{\partial y}{\partial t}$};
      \node [below=0.5cm,left=0.1cm] (h) at (d.220) {$\dfrac{\partial x}{\partial t}$};
      \node at (d.90) [cyan,circle,fill,inner sep=3pt]{};
      \node at (d.180) [cyan,circle,fill,inner sep=3pt]{};
      \node at (d.0) [cyan,circle,fill,inner sep=3pt]{};
      \node at (d.270) [cyan,circle,fill,inner sep=3pt]{};
\end{tikzpicture}
$\dfrac{\partial w}{\partial t} = \dfrac{\partial y}{\partial x} \dfrac{\partial x}{\partial t} +
\dfrac{\partial w}{\partial y}\dfrac{\partial y}{\partial t}$
\end{flushleft}
 \end{minipage}
\hspace{-1.9cm}
 \begin{minipage}[m]{0.49\linewidth}
 \vspace{-1.2cm}
Dependent\variable\[3.0cm]
Intermediate\variables\[2.0cm]
Independent\variable
 \end{minipage}
\end{document}

Good solution also for you +1. – Sebastiano Dec 23 '21 at 17:14 — Sebastiano, Dec 23 '21 at 17:14
@Sebastiano thanks) – WinnieNotThePooh Dec 23 '21 at 17:46 — WinnieNotThePooh, Dec 23 '21 at 17:46

score 3 · Answer 3 · answered Dec 23 '21 at 14:29

You can use the Tikz package. This code can be a start point for you:

\documentclass{standalone}
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  [nodePath/.style={circle,fill=yellow!40}]
  \node[nodePath] (n1) at (0,4)  {1};
  \node[nodePath] (n2) at (4,4)  {2};
  \node[nodePath] (n3) at (4,0)  {3};
  \node[nodePath] (n4) at (0,0)  {4};
\foreach  \from/\to in {n1/n2,n2/n3, n3/n4, n4/n1}
    \draw[->] (\from) -- (\to) node [midway, auto] () {1};
\end{tikzpicture}
\end{document}
