I want to have a single-column multipart figure in IEEE Access article.

My current code is like

\begin{figure}[ht!]
\centering
\caption{Cap}
    \begin{subfigure}[b]{0.25\textwidth}
        \centering
        \includegraphics[width=\linewidth]{A.png}
        \caption{A}
        \label{fig:A}
    \end{subfigure}
    \hfill
    \begin{subfigure}[b]{0.25\textwidth}
        \centering
        \includegraphics[width=\linewidth]{B.png}
        \caption{B}
        \label{fig:B}
    \end{subfigure}
    \hfill
    \begin{subfigure}[b]{0.25\textwidth}
        \centering
        \includegraphics[width=\linewidth]{C.png}
        \caption{C}
        \label{fig:C}
    \end{subfigure}
    \vspace*{-10pt}
\end{figure}

How to re-format this to \Figure tag in IEEE Access, for it to become single-column?


Working example:

\documentclass{ieeeaccess}

\usepackage{cite} \usepackage{amsmath,amssymb,amsfonts} \usepackage{algorithmic} \usepackage{graphicx} \usepackage{textcomp} \usepackage{subcaption}

\begin{document}

\history{Date of publication xxxx 00, 0000, date of current version xxxx 00, 0000.} \doi{10.1109/ACCESS.2017.DOI}

\title{FooFooFoo}

\author{\uppercase{First A. Author}\authorrefmark{1}, \IEEEmembership{Fellow, IEEE}, \uppercase{Second B. Author\authorrefmark{2}, and Third C. Author, Jr}.\authorrefmark{3}, \IEEEmembership{Member, IEEE}} \address[1]{National Institute of Standards and Technology, Boulder, CO 80305 USA (e-mail: author@boulder.nist.gov)} \address[2]{Department of Physics, Colorado State University, Fort Collins, CO 80523 USA (e-mail: author@lamar.colostate.edu)} \address[3]{Electrical Engineering Department, University of Colorado, Boulder, CO 80309 USA} \tfootnote{This paragraph of the first footnote will contain support information, including sponsor and financial support acknowledgment. For example, ``This work was supported in part by the U.S. Department of Commerce under Grant BS123456.''}

\markboth {Author \headeretal: Preparation of Papers for IEEE TRANSACTIONS and JOURNALS} {Author \headeretal: Preparation of Papers for IEEE TRANSACTIONS and JOURNALS}

\corresp{Corresponding author: First A. Author (e-mail: author@ boulder.nist.gov).}

\begin{abstract} foo \end{abstract}

\begin{keywords} foo \end{keywords}

\titlepgskip=-15pt \maketitle

\begin{figure}[ht!] \centering \caption{Cap} \begin{subfigure}[b]{0.25\textwidth} \centering \includegraphics[width=\linewidth]{A.png} \caption{A} \label{fig:A} \end{subfigure} \hfill \begin{subfigure}[b]{0.25\textwidth} \centering \includegraphics[width=\linewidth]{B.png} \caption{B} \label{fig:B} \end{subfigure} \hfill \begin{subfigure}[b]{0.25\textwidth} \centering \includegraphics[width=\linewidth]{C.png} \caption{C} \label{fig:C} \end{subfigure} \vspace*{-10pt} \end{figure}

\EOD

\end{document}

1 Answers1

4

It is not clear, what you mean with "single column". Like this?

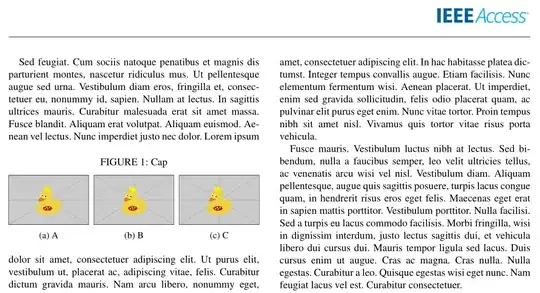

enter image description here

\documentclass{ieeeaccess}

\usepackage{cite} \usepackage{graphicx} \usepackage{textcomp} \usepackage{subcaption}

\usepackage{lipsum}

\begin{document} \lipsum[11] \begin{figure}[ht!] \centering \caption{Cap} \setkeys{Gin}{width=\linewidth} \begin{subfigure}[b]{0.32\linewidth} \centering \includegraphics{example-image-duck}%{A.png} \caption{A} \label{fig:A} \end{subfigure} \hfill \begin{subfigure}[b]{0.32\linewidth} \centering \includegraphics{example-image-duck}%{B.png} \caption{B} \label{fig:B} \end{subfigure} \hfill \begin{subfigure}[b]{0.32\linewidth} \centering \includegraphics{example-image-duck}%{C.png} \caption{C} \label{fig:C} \end{subfigure} \end{figure} \lipsum \EOD \end{document}

or like this

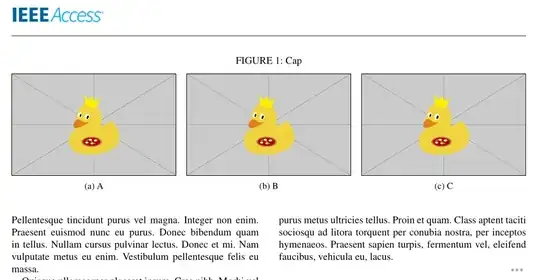

enter image description here

where is considered @Imran comment:

\documentclass{ieeeaccess}

\usepackage{cite} \usepackage{graphicx} \usepackage{textcomp} \usepackage{subcaption}

\usepackage{lipsum}

\begin{document} \begin{figure}[ht!] \centering \caption{Cap} \setkeys{Gin}{width=\linewidth} \begin{subfigure}[b]{0.32\linewidth} \centering \includegraphics{example-image-duck}%{A.png} \caption{A} \label{fig:A} \end{subfigure} \hfill \begin{subfigure}[b]{0.32\linewidth} \centering \includegraphics{example-image-duck}%{B.png} \caption{B} \label{fig:B} \end{subfigure} \hfill \begin{subfigure}[b]{0.32\linewidth} \centering \includegraphics{example-image-duck}%{C.png} \caption{C} \label{fig:C} \end{subfigure} \end{figure} \lipsum\lipsum \EOD \end{document}

Zarko
