linear combination of cyclic text in latex

Question

latex code for this linear combination:

I have this code for the cyclic text but I have no idea how to make a bunch of them as a linear combination.

\documentclass[tikz,border=2pt]{standalone}
\begin{document}
\begin{tikzpicture}[->]
    \node (a) at (90:2cm)  {Democrat};
    \node (b) at (-30:2cm) {Republician};
    \node (c) at (210:2cm) {Third};
\draw (-20:2cm) arc (-20:60:2cm) node[midway, right] {{\footnotesize 1}};
\draw (120:2cm) arc (120:200:2cm) node[midway, left] {{\footnotesize -1}};
\draw (220:2cm) arc (220:320:2cm) node[midway, below] {{\footnotesize 1}};

\end{tikzpicture}
\end{document}

Welcome! Please add some minimal working code . For starting eample1 or example2 could help. — Bobyandbob, Dec 31 '21 at 17:36
Showing code will speed up answers and increase their quality as a side-effect ;-) — MS-SPO, Dec 31 '21 at 17:38

Steven B. Segletes · Accepted Answer · 2021-12-31T18:09:58.750

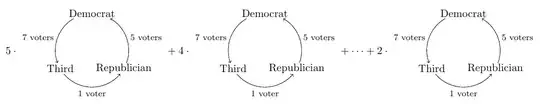

Each tikzpicture can be its own atom in a larger mathematical construct. In this case, I also used \raisebox to get better centering.

\documentclass[border=2pt]{standalone}
\usepackage{tikz}
\begin{document}
$
5\cdot
\raisebox{-1.5cm}{\begin{tikzpicture}[scale=.6,->]
    \node (a) at (90:2cm)  {Democrat};
    \node (b) at (-30:2cm) {Republician};
    \node (c) at (210:2cm) {Third};
\draw (-20:2cm) arc (-20:60:2cm) node[midway, right] {{\footnotesize 5 voters}};
\draw (120:2cm) arc (120:200:2cm) node[midway, left] {{\footnotesize 7 voters}};
\draw (220:2cm) arc (220:320:2cm) node[midway, below] {{\footnotesize 1 voter}};

\end{tikzpicture}}
+4\cdot
\raisebox{-1.5cm}{\begin{tikzpicture}[scale=.6,->]
    \node (a) at (90:2cm)  {Democrat};
    \node (b) at (-30:2cm) {Republician};
    \node (c) at (210:2cm) {Third};
\draw (-20:2cm) arc (-20:60:2cm) node[midway, right] {{\footnotesize 5 voters}};
\draw (120:2cm) arc (120:200:2cm) node[midway, left] {{\footnotesize 7 voters}};
\draw (220:2cm) arc (220:320:2cm) node[midway, below] {{\footnotesize 1 voter}};

\end{tikzpicture}}
+\cdots + 2\cdot
\raisebox{-1.5cm}{\begin{tikzpicture}[scale=.6,->]
    \node (a) at (90:2cm)  {Democrat};
    \node (b) at (-30:2cm) {Republician};
    \node (c) at (210:2cm) {Third};
\draw (-20:2cm) arc (-20:60:2cm) node[midway, right] {{\footnotesize 5 voters}};
\draw (120:2cm) arc (120:200:2cm) node[midway, left] {{\footnotesize 7 voters}};
\draw (220:2cm) arc (220:320:2cm) node[midway, below] {{\footnotesize 1 voter}};

\end{tikzpicture}}
$
\end{document}

score 4 · Answer 2 · answered Dec 31 '21 at 18:24

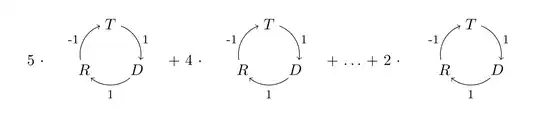

\documentclass{article}
\usepackage[left=1.5cm,right=1.5cm,
top=1.5cm,bottom=2cm,bindingoffset=0cm]{geometry}
\usepackage{float}
\usepackage{array, makecell}
\usepackage[utf8]{inputenc}
\usepackage{tikz}
\usepackage{booktabs}
\usepackage{multirow}
\usepackage{pdflscape}
\usepackage{longtable, array}
\begin{document}
\begin{longtable}{@{} {1}{m{0.4cm}}{1}{m{2cm}} {1}{m{0.8cm}}{1}{m{2cm}} {1}{m{1.8cm}}{1}{m{3cm}}*{1}{m{3cm}} @{}}
5 $\cdot$& \begin{tikzpicture}[->,scale=.7]
   \node (i) at (90:1cm)  {$T$};
   \node (j) at (-30:1cm) {$D$};
   \node (k) at (210:1cm) {$R$};
   \draw (70:1cm)  arc (70:-10:1cm) node[midway, right] {{\footnotesize 1}};
   \draw (-50:1cm) arc (-50:-130:1cm) node[midway, below] {{\footnotesize 1}};
   \draw (190:1cm) arc (190:110:1cm) node[midway, left] {{\footnotesize -1}};
\end{tikzpicture}
&+ 4 $\cdot$& \begin{tikzpicture}[->,scale=.7]
   \node (i) at (90:1cm)  {$T$};
   \node (j) at (-30:1cm) {$D$};
   \node (k) at (210:1cm) {$R$};
   \draw (70:1cm)  arc (70:-10:1cm) node[midway, right] {{\footnotesize 1}};
   \draw (-50:1cm) arc (-50:-130:1cm) node[midway, below] {{\footnotesize 1}};
   \draw (190:1cm) arc (190:110:1cm) node[midway, left] {{\footnotesize -1}};
\end{tikzpicture}
&+ $ \ldots $ + 2 $\cdot$ & \begin{tikzpicture}[->,scale=.7]
   \node (i) at (90:1cm)  {$T$};
   \node (j) at (-30:1cm) {$D$};
   \node (k) at (210:1cm) {$R$};
   \draw (70:1cm)  arc (70:-10:1cm) node[midway, right] {{\footnotesize 1}};
   \draw (-50:1cm) arc (-50:-130:1cm) node[midway, below] {{\footnotesize 1}};
   \draw (190:1cm) arc (190:110:1cm) node[midway, left] {{\footnotesize -1}};
\end{tikzpicture} \
\end{longtable}
\end{document}

@egreg To say the truth I have done template with "longtable" a few minutes ago, so I just didn't change it (the main thing is that it works)) — WinnieNotThePooh, Jan 01 '22 at 10:04

Juan Castaño · Answer 3 · 2022-01-01T09:52:11.567

Welcome to TeX.SE!!!

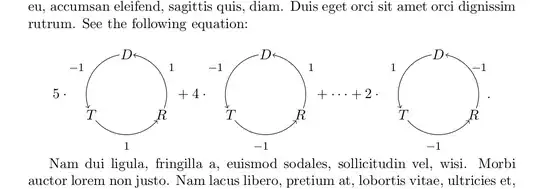

Another approach with a macro for the cyclic text:

\documentclass{article}
\usepackage   {lipsum} % dummy text
\usepackage   {tikz}   % nice drawings
\newcommand{\cyclic}[3]% numbers: top right, bottom, top left
{%
  \begin{tikzpicture}[->,baseline=(center.base)]% <-- to fix the baseline
    \useasboundingbox (-1.4,-1.2) rectangle (1.2,1.2);
    \node (center) at (0,0) {\strut};
    \foreach[count=\ii]\i/\j in {D/#1,T/#2,R/#3}
    {
      \draw    (120\ii-20:1) arc (120\ii-20:120\ii+80:1);
      \node at (120\ii-30:1)     {$\i$};
      \node at (120*\ii+30:1.3)   {\footnotesize\strut$\j\ifnum\j<0\hphantom{-}\fi$};
    }%                        this provides some symmetry ^^^^^^^^^^^^^^^^^^^^^^^^
  \end{tikzpicture}%
}
\begin{document}
\lipsum[1] See the following equation:
[5\cdot\cyclic{-1}{1}{1}+4\cdot\cyclic{-1}{-1}{1}+\cdots+2\cdot\cyclic{1}{-1}{-1}.]
\lipsum[2]
\end{document}

Of course, you can add more parameters if you need to change the letters D,T,R, the size, etc.
