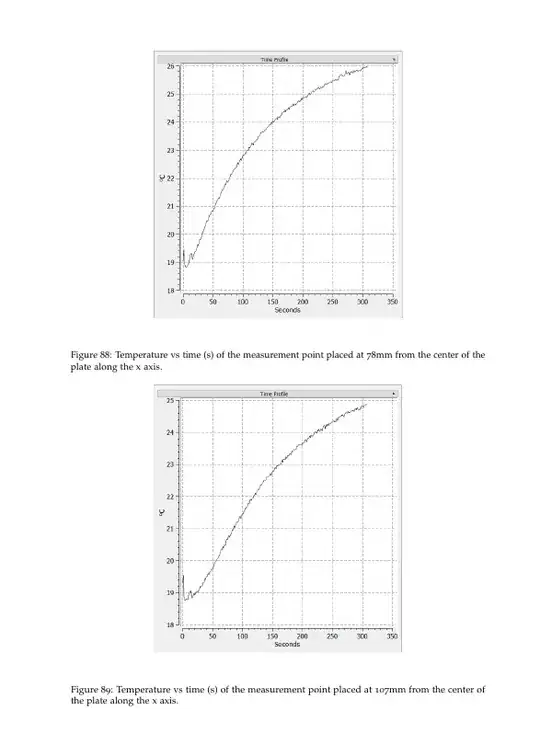

The images below and the code show how 50° subsubsection is not where I placed it. Any solution?

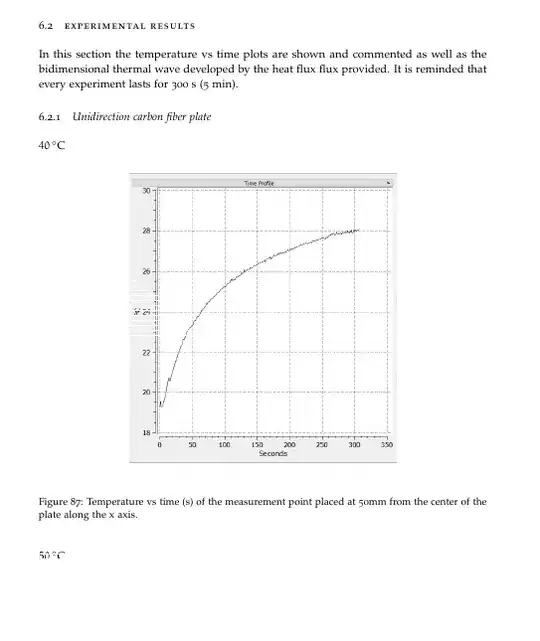

50° is below the first image

enter image description here

\section{Experimental results}
      In this section the temperature vs time plots are shown and commented as well as the
        bidimensional thermal wave developed by the heat flux flux provided. It is reminded
           that every experiment lasts for 300 s (5 min).
         \subsection{Unidirection carbon fiber plate}
       \subsubsection{\SI{40}{\celsius}}
       \begin{figure} [h!]
            \centering
        \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 40° C/50x}
            \caption{Temperature vs time (s) of the measurement point placed at 50mm from the
           center of the plate along the x axis.}
            \end{figure}
             \begin{figure} [h!]
              \centering
              \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 40° C/78x}
                \caption{Temperature vs time (s) of the measurement point placed at 78mm from
      the center of the plate along the x axis.}
     \end{figure}
        \begin{figure} [h!]
          \centering
            \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 40° C/107x}
                  \caption{Temperature vs time (s) of the measurement point placed at 107mm
           from the center of the plate along the x axis.}
           \end{figure}
             \begin{figure} [h!]
            \centering
                \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 40° C/30y}
           \caption{Temperature vs time (s) of the measurement point placed at 30mm from the
        center of the plate along the y axis.}
            \end{figure}
         \begin{figure} [h!]
            \centering
            \includegraphics[scale=0.75]{Immagini/PLQ 200-01-399 40° C/export/queste/init}
            \caption{Thermal wave at t=5 s.}
          \end{figure}
          \begin{figure} [h!]
        \centering
        \includegraphics[scale=0.75]{Immagini/PLQ 200-01-399 40° C/export/queste/meta}
           \caption{Thermal wave at t=150 s.}
          \end{figure}
            \begin{figure} [h!]
              \centering
               \includegraphics[scale=0.75]{Immagini/PLQ 200-01-399 40° C/export/queste/fine}
             \caption{Thermal wave at t=300 s.}
             \end{figure}
               \subsubsection{\SI{50}{\celsius}}
             \begin{figure} [h!]
                \centering
                \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 50° C/50x}
                 \caption{Temperature vs time (s) of the measurement point placed at 50mm from
             the center of the plate along the x axis.}
            \end{figure}
            \begin{figure} [h!]
          \centering
             \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 50° C/78x}
              \caption{Temperature vs time (s) of the measurement point placed at 78mm from
       the center of the plate along the x axis.}
        \end{figure}
       \begin{figure} [h!]
            \centering
            \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 50° C/107x}
            \caption{Temperature vs time (s) of the measurement point placed at 107mm from the
            center of the plate along the x axis.}
            \end{figure}
            \begin{figure} [h!]
                \centering
                \includegraphics[scale=0.7]{Immagini/PLQ 200-01-399 50° C/30y}
                   \caption{Temperature vs time (s) of the measurement point placed at 30mm
                     from the center of the plate along the y axis.}
                 \end{figure}
                \begin{figure} [h!]
            \centering
                \includegraphics[scale=0.75]{Immagini/PLQ 200-01-399 50° C/export/queste/init}
            \caption{Thermal wave at t=5 s.}
                     \end{figure}
                         \begin{figure} [h!]
                            \centering
                        \includegraphics[scale=0.75]{Immagini/PLQ 200-01-399 50°
                          C/export/queste/meta}
                           \caption{Thermal wave at t=150 s.}
                            \end{figure}
                       \begin{figure} [h!]
                            \centering
                        \includegraphics[scale=0.75]{Immagini/PLQ 200-01-399 50°
                          C/export/queste/fine}
                                     \caption{Thermal wave at t=300 s.}
                             \end{figure}
David Carlisle
  • 757,742
Reverse
  • 65
  • 1
    your question is not very clear, section headings never float, however figure float (that is the only function of the figure environment) as you have used [h] (which usually generates a warning), you are specifying that the figure may not be placed at the top or bottom of a page or on a page just containing figures, this makes it very hard to place the figure anywhere – David Carlisle Jan 27 '22 at 17:52
  • I meant why my subsubsection 50° is right after the first figure if I wanted it to be after several ones as shown in the code – Reverse Jan 27 '22 at 17:57
  • Thank you. I placed a \FloatBarrier before my subsubsection and it works. – Reverse Jan 27 '22 at 18:26
