I am writing a research paper for a word matching game. However, when I try to rescale the images for my paper the sizing does not change. The code below generates the figures:

\begin{figure}
  \includegraphics[scale=0.4, clip,width=0.9\linewidth]{figure/fig_1.PNG}
  \caption{Word Match Generator Before Dragging Boxes}
  \label{fig:fig1}
\end{figure}

\begin{figure}
  \includegraphics[scale=0.4, clip,width=0.9\linewidth]{figure/Figure2.png}
  \caption{Word Match After Dragging Boxes}
  \label{fig:fig2}
\end{figure}


\begin{figure}
  \includegraphics[scale=0.2, clip,width=0.9\linewidth]{figure/congratulations_button.PNG}
  \caption{Congratulations Dialog Box}
  \label{fig:fig3}
\end{figure}

Expected: A set of figures are generated such that any modification to scale=0.2 should change the figure size.

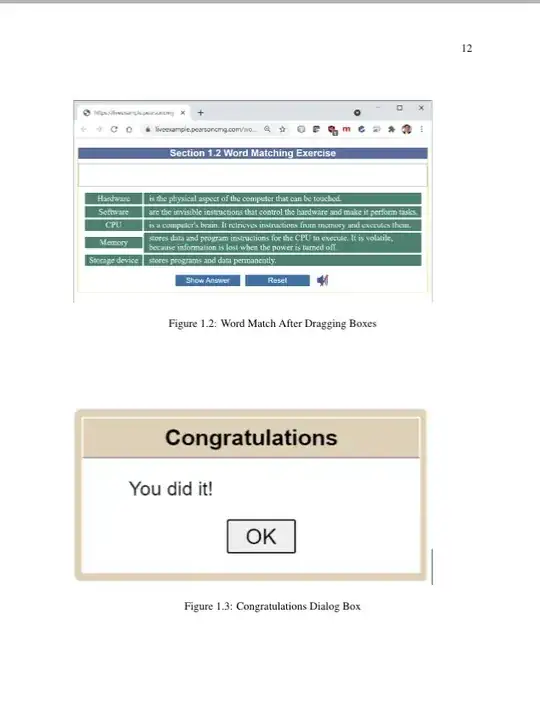

Actual: The figures remain the same despite any change: enter image description here

Any help understanding how to fix this issue would be helpful.

Evan Gertis
  • 109
  • 5
    You are telling includegraphics to scale your figure to 90% of the line width... Use scale OR width – Rmano Feb 06 '22 at 21:09
  • First you scale image to 0.2 natural size and than this scale to 0.9\linewidth. The same result you will get if you use scale only to 0.9\linewidth. So, it is not clear, what is goal of your scaling ... – Zarko Feb 06 '22 at 21:46
  • Now if you want to scale the image, test if it is less than \linewidth and only then shrink it further, you can use a savebox. \sbox0{\incudegraphics[scale=0.2]{...}} \ifdim\wd0>\linewidth \resizebox{\linewidth}{\box0} \else \centering\box0 \fi – John Kormylo Feb 07 '22 at 15:24
