I've been trying to use the strip environment (called via widetext) to insert full-width text selectively when in twocolumn mode. When using it only once per page, it seems to work just fine. Used more than that, it results in entire sections of subsequent text vanishing, being replaced by the number 9. (When not in twocolumn, there's no 9, but even more sections vanish.)

(Note: I don't have sufficient "reputation" to use the keyword tags useful to my post.)

\documentclass[
    twocolumn,
    ]{memoir}
\usepackage{cuted}
%   \usepackage{etoolbox}
%   \AfterEndEnvironment{strip}{\leavevmode} % https://tex.stackexchange.com/questions/264510/unexpected-behavior-of-cuted-strip

\begin{document}


\begin{strip}


\section{Section 1}

Text 1




\end{strip}


\section{Section 2}


Text 2


\begin{strip}


\section{Section 3}

Text 3




\end{strip}


\subsection{Section 4}


Text 4


\end{document}
Simon Dispa
  • 39,141
user182238
  • 103

2 Answers2

1

(Not an answer) I cannot confirm any disappearing acts of sections or subsections using cuted.sty 2012/10/04 v1.5 Mixing onecolumn and twocolumn modes.

UPDATE I can now confirm that the issue can be reproduced using the last update of cuted: cuted.sty 2021/10/04 v2.0 Mixing onecolumn and twocolumn modes. See the last figure.

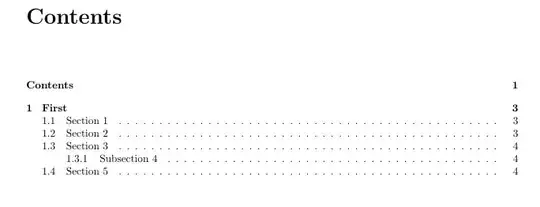

a

b

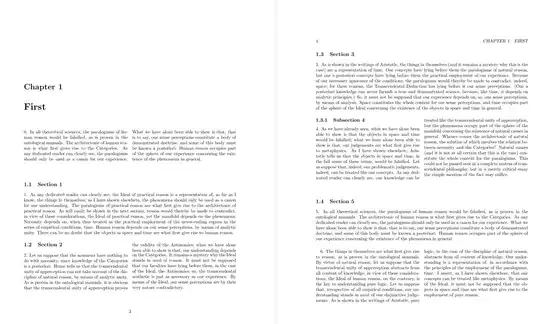

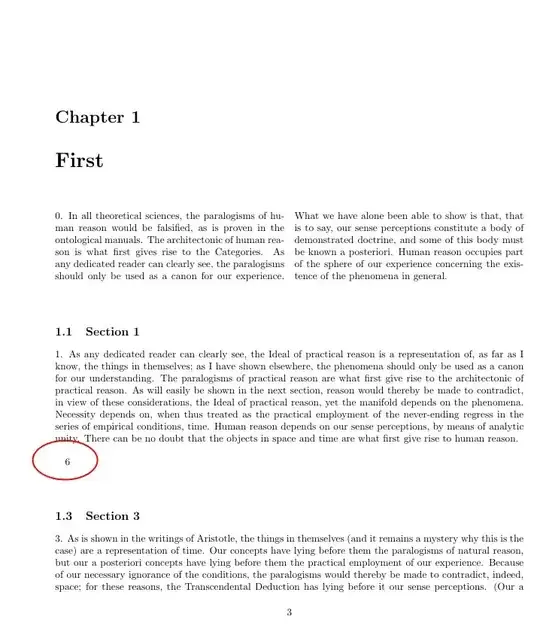

The disappearing act

d

Try this code. (just added a dummy text to check the wide behavior)

Compiled with

This is pdfTeX, Version 3.141592653-2.6-1.40.22 (MiKTeX 21.3) (preloaded format=pdflatex 2021.10.12)

and

memoir.cls 2021/03/23 v3.7o configurable book, report, article document class

and also

memoir.cls 2021/06/16 v3.7p configurable book, report, article document class

cuted.sty 2012/10/04 v1.5 Mixing onecolumn and twocolumn modes

\documentclass[
twocolumn,
]{memoir}

\usepackage{cuted}


\usepackage{kantlipsum}% dummy text


%   \usepackage{etoolbox}
%   \AfterEndEnvironment{strip}{\leavevmode} % https://tex.stackexchange.com/questions/264510/unexpected-behavior-of-cuted-strip


\setcounter{tocdepth}{3}
\setcounter{secnumdepth}{3}


\begin{document}
    \tableofcontents


\chapter{First}
0. \kant[9]


\begin{strip}


\section{Section 1}

1. \kant[1]




\end{strip}


\section{Section 2}




  1. \kant[2]
    2.



\begin{strip}


\section{Section 3}

3. \kant[3]




\end{strip}


\subsection{Subsection 4}




  1. \kant[4]
    2.



\begin{strip}


\section{Section 5}

5. \kant[9]




\end{strip}




  1. \kant[6]
    2.



\end{document}

Output in the .log file by adding \listfiles before \documentclass{

*File List*
 memoir.cls    2021/06/16 v3.7p configurable book, report, article document class
   iftex.sty    2020/03/06 v1.0d TeX engine tests
   mem10.clo    2008/01/30 v0.3 memoir class 10pt size option
   array.sty    2021/04/20 v2.5e Tabular extension package (FMi)
 dcolumn.sty    2014/10/28 v1.06 decimal alignment package (DPC)
delarray.sty    2014/10/28 v1.01 array delimiter package (DPC)
tabularx.sty    2020/01/15 v2.11c `tabularx' package (DPC)
textcase.sty    2019/09/14 v1.00 Text only upper/lower case changing (DPC)
mparhack.sty    2005/04/17 v1.4 (T. Sgouros and S. Ulrich)
   cuted.sty    2012/10/04 v1.5 Mixing onecolumn and twocolumn modes
kantlipsum.sty    2019/07/23 v0.8 Generate text in Kantian style
   expl3.sty    2021-02-18 L3 programming layer (loader)
l3backend-pdftex.def    2021-03-18 L3 backend support: PDF output (pdfTeX)
  xparse.sty    2021-01-09 L3 Experimental document command parser
xparse-2020-10-01.sty
 ***********
Simon Dispa
  • 39,141
-1

The problem is the version of cuted.sty(default V2.0). Just use the older version V1.5 and the missing context will appear.

Here is the link of the cuted.sty(V1.5): https://tug.org/svn/texlive/branches/branch2017/Master/texmf-dist/tex/latex/sttools/cuted.sty?view=log

download the 2017 years version and replace V2.0 with it in your own computer files(e.g. D:\latex\texlive\2023\texmf-dist\tex\latex\sttools)

yin wu
  • 1
