Tabularray: tblr inside table environment affects pagebreak longtblr and mixes the two tables

Question

I try to place a talltblr environment from Tabularray inside a table environment. However, this is messing up the pagebreak from the longtblr table above it. It somehow ends up inside the longtblr. The same thing happens when I change talltblr to tblr. I assumed the table environment would give me a better page layout (verticle space, placement etc). Is it not recommended to place a tblr inside a table environment?

See the MWE below and a picture of the outcome with and without the table environment wrapped around (tall)tblr. Blue header of longtblr, red header of talltblr.

\documentclass{article}
\usepackage{xcolor}% Colors
\usepackage{tabularray}%
    \UseTblrLibrary{amsmath,booktabs}%
%--------------------------------------------------------------%
\begin{document}
%--------------------------------------------------------------%
\section{Long table error}
Text needed 1?
\begin{longtblr}[
    caption = {Long tblr caption},% Caption
]{
    colspec = {lX},
    rowhead = 1,%               # rows footer, header
        hline{1,Z}  = {1pt},%   top & bottomrule
        hline{2}    = {0.3pt},% midrule
        row{1}      = {cyan},
}
% Header
    Head 1      & Head 2 \
% Table
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
\end{longtblr}
Text needed 2?
\begin{table}
  \begin{talltblr}[
    caption = {Tall tblr caption},% Caption
]{
    colspec     = {ll},
        hline{1,Z}  = {1pt},%   top & bottomrule
        hline{2}    = {0.3pt},% midrule
        row{1}      = {purple},
}
% Header
    Head 1      & Head 2 \
% Table
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
  \end{talltblr}
\end{table}
Text needed 3?
\end{document}

With table environment: Blue header of longtblr, red header of talltblr.

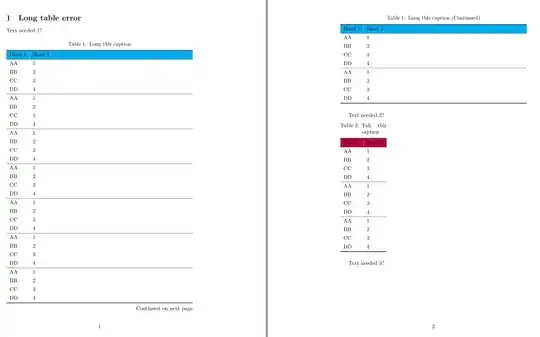

Without table environment: Blue header of longtblr, red header of talltblr.

table is a float, and so it can float to the top of the page. When you mix floating and non floating tables then it can happen that you have to correct the placement to get the numbering and order right. — Ulrike Fischer, Feb 10 '22 at 22:39

L.J.R. · Answer 1 · 2022-02-11T01:40:07.503

Many users would think it is a trap when they discover some day that the default option of a table environment is tbp without h in it, which tell LaTeX not to try to put the table "here" (current position).

In most of the time it is a good idea to set the placement option of a table environment to !htbp. In this example, !hbp is a better choice, since it is after a long table.

\documentclass{article}
\usepackage{xcolor}% Colors
\usepackage{tabularray}%
\UseTblrLibrary{amsmath,booktabs}%
%--------------------------------------------------------------%
\begin{document}
%--------------------------------------------------------------%
\section{Long table error}
Text needed 1?
\begin{longtblr}[
    caption = {Long tblr caption},% Caption
]{
    colspec = {lX},
    rowhead = 1,%               # rows footer, header
        hline{1,Z}  = {1pt},%   top & bottomrule
        hline{2}    = {0.3pt},% midrule
        row{1}      = {cyan},
}
% Header
    Head 1      & Head 2 \
% Table
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
\end{longtblr}
Text needed 2?
\begin{table}[!hbp]
  \begin{talltblr}[
    caption = {Tall tblr caption},% Caption
]{
    colspec     = {ll},
        hline{1,Z}  = {1pt},%   top & bottomrule
        hline{2}    = {0.3pt},% midrule
        row{1}      = {purple},
}
% Header
    Head 1      & Head 2 \
% Table
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
            \hline
    AA          & 1 \
    BB          & 2 \
    CC          & 3 \
    DD          & 4 \
  \end{talltblr}
\end{table}
Text needed 3?
\end{document}

For better control of the position of a table environment, you may see answers to these questions:

How to influence the position of float environments like figure and table in LaTeX?

Keeping tables/figures close to where they are mentioned

There is also an issue about clearing floats before a longtblr environment:

https://github.com/lvjr/tabularray/issues/60

Thank you very much for this solution to my problem! Would you advice to place a float block for all the longtblrs instead of controlling the position of the tables? For example like this: \AddToHook{env/longtblr/begin}{\FloatBlock} — Elise, Feb 11 '22 at 13:43
@Elise I can not answer this because I haven’t done any test in long documents. — L.J.R., Feb 11 '22 at 14:23
That is not a problem. Thank you very much for your solution! — Elise, Feb 11 '22 at 16:07
