Advanced Cross-Referencing with Linguex/Philex: Skipping and Stripping

Question

\documentclass{report}


\usepackage{philex} % Includes linguex. Only loading it for \phildashes.
\usepackage{cleveref}

% Referring to Subexample Ranges

\crefname{ExNo}{}{}
\crefname{SubExNo}{}{}
\crefname{SubSubExNo}{}{}

\renewcommand{\theExNo}{\arabic{ExNo}}
\renewcommand{\theSubExNo}{\theExNo\arabic{SubExNo}}
\renewcommand{\theSubSubExNo}{\theSubExNo\alph{SubSubExNo}}

\creflabelformat{ExNo}{(#2#1#3)}
\creflabelformat{SubExNo}{(#2#1#3)}
\creflabelformat{SubSubExNo}{(#2#1#3)}

\crefrangelabelformat{ExNo}{(#3#1#4)--(#5#2#6)}
\crefrangelabelformat{SubExNo}{(#3#1#4--#5\crefstripprefix{#1}{#2}#6)} % Skips the common part of the label.
\crefrangelabelformat{SubSubExNo}{(#3#1#4--#5\crefstripprefix{#1}{#2}#6)}

\phildashes{.}{}        % Adds a dot between levels 1 and 2 in references (since both have arabic-style labels).
\subformat{1}{}{.}      % Level 2 is of the form “1.”
\subsubformat{a}{}{.}   % Level 3 is of the form “a.”

\begin{document}

    \ex. This is the main level.
        \a. This is the sublevel.
            \a. This is the subsublevel. \label{1a}
            \b. Third level too.  \label{1b}

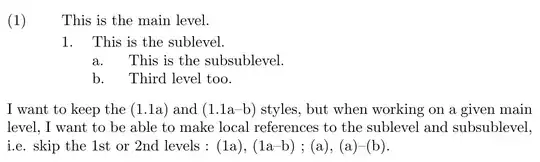

I want to keep the \cref{1a} and \crefrange{1a}{1b} styles, but when working on a given main level, I want to be able to make local references to the sublevel and subsublevel, i.e. skip the 1st or 2nd levels : (1a), (1a--b) ; (a), (a)--(b).

\end{document}

• So what I basically want is to define new commands, let's say \localref and \localrefrange.

• Note that although if we use Philex's \lb command instead of Linguex's \ex., we can then use Philex's \rfx and \rnx commands which skip the first level as desired,

  • first, they are in themselves of no help for ranges,

  • and second, they only skip the first level, not the second one,

    • i.e. as a local reference to "1.1a" you can obtain "1a" but never just "a".

I do not use roman numbering because \crefstripprefix doesn't like it. (We now have a workaround involving the xstring package and the \mystriptocolon command, cf. https://tex.stackexchange.com/a/635636/262813.)

• I would ideally also like to have a no-parentheses variant of \localref and \localrefrange (let's say \plocalref and \plocalrefrange).

Answer 1

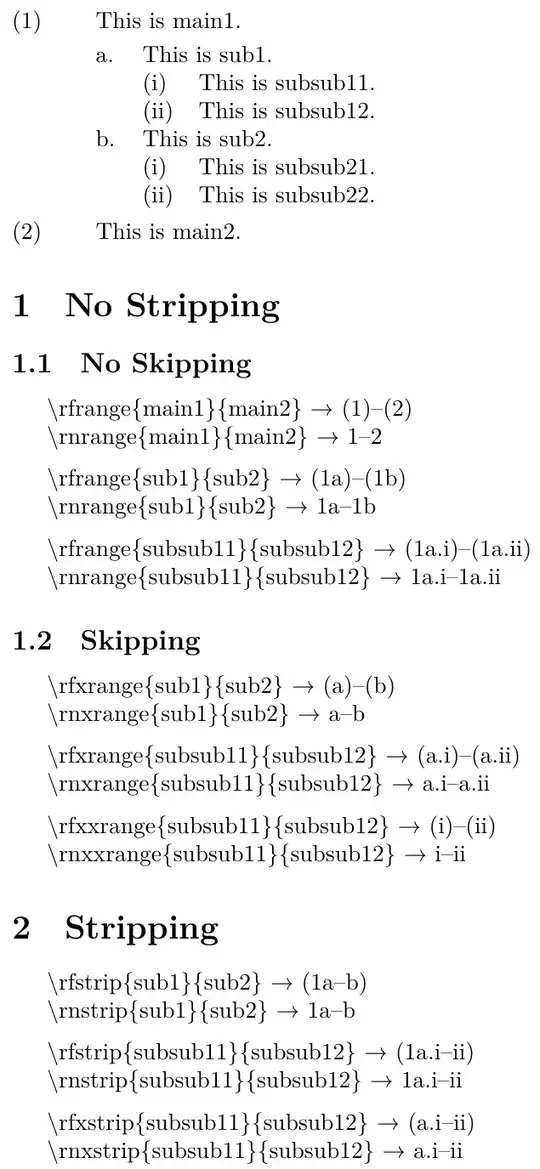

Edit The old solution (see infra after new one) becomes useless once you master the package zref, cf. https://tex.stackexchange.com/a/644037/262813

\documentclass{article}
\usepackage{zref-user}
\usepackage{philorig}
\renewcommand{\label}{\zlabel}
\newcommand{\na}{n\textbackslash a}
\makeatletter
\zref@newprop{theexno}{\arabic{ExNo}}
\zref@newprop{thesubexno}{\arabic{altsub}}
\zref@newprop{theexdepth}{\theExDepth}
\zref@newprop{mainstrip}{\ifnum\theExDepth=3\alph{altsub}.\roman{altsubsub}\else\alph{altsub}\fi}
\zref@newprop{maxstrip}{\ifnum\theExDepth=3\roman{altsubsub}\else{\ifnum\theExDepth=2\alph{altsub}\else\arabic{ExNo}\fi}\fi}
\zref@newprop{mainskip}{\ifnum\theExDepth=1\arabic{ExNo}\else{%
    \ifnum\theExDepth=2\alph{altsub}%
    \else\alph{altsub}.\roman{altsubsub}\fi}%
    \fi}
\zref@newprop{maxskip}{\ifnum\theExDepth=3\roman{altsubsub}\else{%
    \ifnum\theExDepth=2\alph{altsub}\else\arabic{ExNo}\fi}%
    \fi}%
\zref@addprops{main}{theexno,thesubexno,theexdepth,mainstrip,maxstrip,mainskip,maxskip}
% Clever Stripping
\newcommand{\pairequal}[2]{%
    \ifnum\arabic{SubExNo}=0(\zref{#1},,\zref{#2})%
    \else{%
        \ifnum\zref@extract{#1}{theexno}=\zref@extract{#2}{theexno}{%
            \ifnum\zref@extract{#1}{thesubexno}=\zref@extract{#2}{thesubexno}(\zref{#1},,\zref[maxstrip]{#2})%
            \else (\zref{#1},,\zref[mainstrip]{#2})\fi}%
        \else (\zref{#1}) and (\zref{#2})\fi}%
    \fi}
\newcommand{\rangeequal}[2]{%
    \ifnum\arabic{SubExNo}=0(\zref{#1}--\zref{#2})%
    \else{%
        \ifnum\zref@extract{#1}{theexno}=\zref@extract{#2}{theexno}{%
            \ifnum\zref@extract{#1}{thesubexno}=\zref@extract{#2}{thesubexno}(\zref{#1}--\zref[maxstrip]{#2})%
            \else (\zref{#1}--\zref[mainstrip]{#2})\fi}%
        \else(\zref{#1})--(\zref{#2})\fi}%
    \fi}
\newcommand{\cleverange}[2]{%
    \ifnum\zref@extract{#1}{theexdepth}=\zref@extract{#2}{theexdepth}\rangeequal{#1}{#2}%
    \else(\zref{#1}--\zref{#2})\fi}
\newcommand{\clevepair}[2]{%
    \ifnum\zref@extract{#1}{theexdepth}=\zref@extract{#2}{theexdepth}\pairequal{#1}{#2}%
    \else(\zref{#1},,\zref{#2})\fi}
% Skipping Variants
% A. Main Skip
\newcommand{\mainskippairequal}[2]{%
    \ifnum\arabic{SubExNo}=0(\zref[mainskip]{#1},,\zref[mainskip]{#2})%
    \else{%
        \ifnum\zref@extract{#1}{theexno}=\zref@extract{#2}{theexno}{%
            \ifnum\zref@extract{#1}{thesubexno}=\zref@extract{#2}{thesubexno}(\zref[mainskip]{#1},,\zref[maxstrip]{#2})%
            \else (\zref[mainskip]{#1}) and (\zref[mainstrip]{#2})\fi}%
        \else (\zref[mainskip]{#1},,\zref[mainskip]{#2})\fi}%
    \fi}
\newcommand{\mainskiprangeequal}[2]{%
    \ifnum\arabic{SubExNo}=0(\zref[mainskip]{#1}--\zref[mainskip]{#2})%
    \else{%
        \ifnum\zref@extract{#1}{theexno}=\zref@extract{#2}{theexno}{%
            \ifnum\zref@extract{#1}{thesubexno}=\zref@extract{#2}{thesubexno}(\zref[mainskip]{#1}--\zref[maxstrip]{#2})%
            \else (\zref[mainskip]{#1})--(\zref[mainskip]{#2})\fi}%
        \else (\zref[mainskip]{#1}--\zref[mainskip]{#2})\fi}
    \fi}
\newcommand{\mainskipcleverange}[2]{%
    \ifnum\zref@extract{#1}{theexdepth}=\zref@extract{#2}{theexdepth}\mainskiprangeequal{#1}{#2}%
    \else (\zref[mainskip]{#1}--\zref[mainskip]{#2})\fi}
\newcommand{\mainskipclevepair}[2]{%
    \ifnum\zref@extract{#1}{theexdepth}=\zref@extract{#2}{theexdepth}\mainskippairequal{#1}{#2}%
    \else (\zref[mainskip]{#1},,\zref[mainskip]{#2})\fi}
% B. Max Skip
\newcommand{\maxskippairequal}[2]{%
    \ifnum\arabic{SubExNo}=0(\zref[maxskip]{#1},,\zref[maxskip]{#2})%
    \else{%
        \ifnum\zref@extract{#1}{theexno}=\zref@extract{#2}{theexno}%
            {\ifnum\zref@extract{#1}{thesubexno}=\zref@extract{#2}{thesubexno}(\zref[maxskip]{#1}) and (\zref[maxskip]{#2})%
            \else(\zref[maxskip]{#1}) and (\zref[maxskip]{#2})\fi}%
        \else(\zref[maxskip]{#1},,\zref[maxskip]{#2})\fi}%
    \fi}
\newcommand{\maxskiprangeequal}[2]{%
    \ifnum\arabic{SubExNo}=0(\zref[maxskip]{#1}--\zref[maxskip]{#2})%
    \else{%
        \ifnum\zref@extract{#1}{theexno}=\zref@extract{#2}{theexno}{%
            \ifnum\zref@extract{#1}{thesubexno}=\zref@extract{#2}{thesubexno}(\zref[maxskip]{#1})--(\zref[maxskip]{#2})%
            \else(\zref[maxskip]{#1})--(\zref[maxskip]{#2})\fi}%
        \else(\zref[maxskip]{#1}--\zref[maxskip]{#2})\fi}
    \fi}
\newcommand{\maxskipcleverange}[2]{%
    \ifnum\zref@extract{#1}{theexdepth}=\zref@extract{#2}{theexdepth}\maxskiprangeequal{#1}{#2}%
    \else(\zref[maxskip]{#1}--\zref[maxskip]{#2})\fi}
\newcommand{\maxskipclevepair}[2]{%
    \ifnum\zref@extract{#1}{theexdepth}=\zref@extract{#2}{theexdepth}\maxskippairequal{#1}{#2}%
    \else(\zref[maxskip]{#1},,\zref[maxskip]{#2})\fi}
\makeatother
\begin{document}
\phildashes{}{.}
\subformat{a}{}{.}
\lb{main1}{Example One.
    \lba{sub11}{Subexample One-One.
        \lba{subsub111}{Subsubexample One-One-One.}
        \lbb{subsub112}{Subsubexample One-One-Two.}
        \lbz{subsub113}{Subsubexample One-One-Three.}}
    \lbz{sub12}{Subexample One-Two.
        \lba{subsub121}{Subsubexample One-Two-One.}
        \lbz{subsub122}{Subsubexample One-Two-Two.}}}
\lb{main2}{Example Two.
        \lba{sub21}{Subexample Two-One.}
        \lbz{sub22}{Subexample Two-Two.}}
\vspace{3ex}

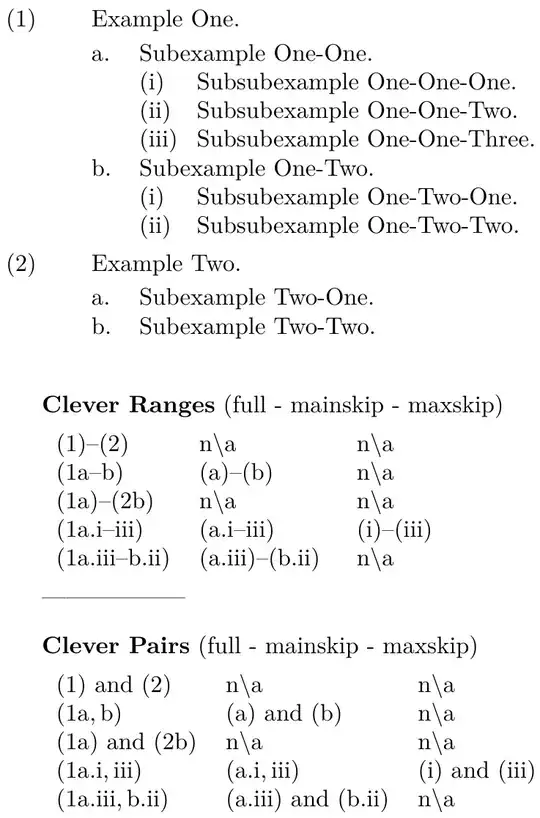

\textbf{Clever Ranges} (full - mainskip - maxskip)\vspace{1ex}
\begin{tabular}[c]{lll}
\cleverange{main1}{main2} & \na & \na\
\cleverange{sub11}{sub12} & \mainskipcleverange{sub11}{sub12} & \na\
\cleverange{sub11}{sub22} & \na & \na\
\cleverange{subsub111}{subsub113} & \mainskipcleverange{subsub111}{subsub113} & \maxskipcleverange{subsub111}{subsub113}\
\cleverange{subsub113}{subsub122} & \mainskipcleverange{subsub113}{subsub122} & \na
\end{tabular}
\vspace{2ex}
------------------\vspace{2ex}
\textbf{Clever Pairs} (full - mainskip - maxskip)\vspace{1ex}
\begin{tabular}[c]{lll}
\clevepair{main1}{main2} & \na & \na\
\clevepair{sub11}{sub12} & \mainskipclevepair{sub11}{sub12} & \na\
\clevepair{sub11}{sub22} & \na & \na\
\clevepair{subsub111}{subsub113} & \mainskipclevepair{subsub111}{subsub113} & \maxskipclevepair{subsub111}{subsub113}\
\clevepair{subsub113}{subsub122} & \mainskipclevepair{subsub113}{subsub122} & \na
\end{tabular}
\end{document}

---



Old solution.

I have a suggestion which does not involve the cleveref package.

• As pointed out in the original post, Philex's \rfx and \rnx commands have been purposefully design so as to be able to skip the first level sublabel.

• Ulrich Diez has found a solution to skip the second level as well if there is a dot:

  • Any way to reference a particular component of a label?

• Below I define, using Ulrich Diez's code :

  • \rfxx, which is like Philex's \rfx (= like \ref but skipping the level-1 sublabel ; reference between parentheses), but skips the level-2 sublabel as well.

  • \rnxx, which is like Philex's \rnx (= like \ref but skipping the level-1 sublabel ; reference without parentheses), but skips the level-2 sublabel as well.

    \makeatletter
    \@ifdefinable\gobbletodot{\long\def\gobbletodot#1.{}}%
    \newcommand\KeepOnlyStuffBehindLastDot[1]{%
      \ifcat$\detokenize\expandafter{\gobbletodot#1.}$%
      \expandafter\@firstoftwo\else\expandafter\@secondoftwo\fi
      {#1}{\expandafter\KeepOnlyStuffBehindLastDot\expandafter{\gobbletodot#1}}%
    }%
    \@ifdefinable\rfxx{%
      \DeclareRobustCommand\rfxx[1]{%
        \IfRefUndefinedBabel{#1}{\refused{#1}\nfss@text{\reset@font\bfseries??}}%
                            {%
                              \@ifundefined{hyperref}{\@firstofone}{\hyperref[{#1}]}%
                              {%
                                (\expandafter\expandafter\expandafter\KeepOnlyStuffBehindLastDot
                                \expandafter\expandafter\expandafter{\getrefbykeydefault{#1}{}{??}})%
                              }%
                            }%
      }%
    }%
    @ifdefinable\rnxx{%
      \DeclareRobustCommand\rnxx[1]{%
        \IfRefUndefinedBabel{#1}{\refused{#1}\nfss@text{\reset@font\bfseries??}}%
                            {%
                              @ifundefined{hyperref}{@firstofone}{\hyperref[{#1}]}%
                              {%
                                \expandafter\expandafter\expandafter\KeepOnlyStuffBehindLastDot
                                \expandafter\expandafter\expandafter{\getrefbykeydefault{#1}{}{??}}%
                              }%
                            }%
      }%
    }%
    \makeatother


• Now I define ranges :

  • using Philex's commands, we may skip the 1st level sublabel :

    \newcommand{\rfxrange}[2]{\rfx{#1}--\rfx{#2}}
    \newcommand{\rnxrange}[2]{\rnx{#1}--\rnx{#2}}


  • using new commands from Ulrich Diez's code, we may skip the 2nd level as well :

    \newcommand{\rfxxrange}[2]{\rfxx{#1}--\rfxx{#2}}
    \newcommand{\rnxxrange}[2]{\rnxx{#1}--\rnxx{#2}}


• Then I add "prefix stripping" possibility :

  • the lines below combine a left part including the level-2 sublabel with a right part skipping it.

    \newcommand{\rfxstrip}[2]{(\rnx{#1}--\rnxx{#2})}
    \newcommand{\rnxstrip}[2]{\rnx{#1}--\rnxx{#2}}

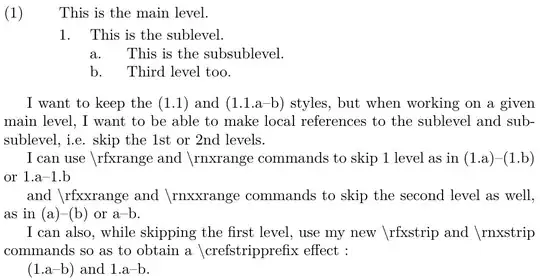

Now the application in the original MWE :

\documentclass{report}
\usepackage[hidelinks]{hyperref}
\usepackage{refcount}
\usepackage{philex} % Includes linguex. Only loading it for \phildashes.
\usepackage{cleveref}
% Referring to Subexample Ranges
\crefname{ExNo}{}{}
\crefname{SubExNo}{}{}
\crefname{SubSubExNo}{}{}
\renewcommand{\theExNo}{\arabic{ExNo}}
\renewcommand{\theSubExNo}{\theExNo\arabic{SubExNo}}
\renewcommand{\theSubSubExNo}{\theSubExNo\alph{SubSubExNo}}
\creflabelformat{ExNo}{(#2#1#3)}
\creflabelformat{SubExNo}{(#2#1#3)}
\creflabelformat{SubSubExNo}{(#2#1#3)}
\crefrangelabelformat{ExNo}{(#3#1#4)--(#5#2#6)}
\crefrangelabelformat{SubExNo}{(#3#1#4--#5\crefstripprefix{#1}{#2}#6)} % Skips the common part of the label.
\crefrangelabelformat{SubSubExNo}{(#3#1#4--#5\crefstripprefix{#1}{#2}#6)}
\phildashes{.}{.}        % Adds a dot between levels in references
\subformat{1}{}{.}      % Level 2 is of the form “1.”
\subsubformat{a}{}{.}   % Level 3 is of the form “a.”
% Skip the first and second levels
\makeatletter
@ifdefinable\gobbletodot{\long\def\gobbletodot#1.{}}%
\newcommand\KeepOnlyStuffBehindLastDot[1]{%
  \ifcat$\detokenize\expandafter{\gobbletodot#1.}$%
  \expandafter@firstoftwo\else\expandafter@secondoftwo\fi
  {#1}{\expandafter\KeepOnlyStuffBehindLastDot\expandafter{\gobbletodot#1}}%
}%
@ifdefinable\rfxx{%
  \DeclareRobustCommand\rfxx[1]{%
    \IfRefUndefinedBabel{#1}{\refused{#1}\nfss@text{\reset@font\bfseries??}}%
                        {%
                          @ifundefined{hyperref}{@firstofone}{\hyperref[{#1}]}%
                          {%
                            (\expandafter\expandafter\expandafter\KeepOnlyStuffBehindLastDot
                            \expandafter\expandafter\expandafter{\getrefbykeydefault{#1}{}{??}})%
                          }%
                        }%
  }%
}%
@ifdefinable\rnxx{%
  \DeclareRobustCommand\rnxx[1]{%
    \IfRefUndefinedBabel{#1}{\refused{#1}\nfss@text{\reset@font\bfseries??}}%
                        {%
                          @ifundefined{hyperref}{@firstofone}{\hyperref[{#1}]}%
                          {%
                            \expandafter\expandafter\expandafter\KeepOnlyStuffBehindLastDot
                            \expandafter\expandafter\expandafter{\getrefbykeydefault{#1}{}{??}}%
                          }%
                        }%
  }%
}%
\makeatother
%Now I define ranges :
\newcommand{\rfxrange}[2]{\rfx{#1}--\rfx{#2}}
\newcommand{\rnxrange}[2]{\rnx{#1}--\rnx{#2}}
\newcommand{\rfxxrange}[2]{\rfxx{#1}--\rfxx{#2}}
\newcommand{\rnxxrange}[2]{\rnxx{#1}--\rnxx{#2}}
\newcommand{\rfxstrip}[2]{(\rnx{#1}--\rnxx{#2})}
\newcommand{\rnxstrip}[2]{\rnx{#1}--\rnxx{#2}}
\begin{document}
\lb{main}{This is the main level.
    \lba{sub}{This is the sublevel.
        \lba{subsub-a}{This is the subsublevel.}
        \lbz{subsub-b}{Third level too.}}}




I want to keep the \cref{sub} and \crefrange{subsub-a}{subsub-b} styles, but when working on a given main level, I want to be able to make local references to the sublevel and subsublevel, i.e. skip the 1st or 2nd levels.
I can use \textbackslash rfxrange and \textbackslash rnxrange commands to skip 1 level as in \rfxrange{subsub-a}{subsub-b} or \rnxrange{subsub-a}{subsub-b}
and \textbackslash rfxxrange and \textbackslash rnxxrange commands to skip the second level as well, as in \rfxxrange{subsub-a}{subsub-b} or \rnxxrange{subsub-a}{subsub-b}.

I can also, while skipping the first level, use my new \textbackslash rfxstrip and \textbackslash rnxstrip commands so as to obtain a \textbackslash crefstripprefix effect :

\rfxstrip{subsub-a}{subsub-b} and \rnxstrip{subsub-a}{subsub-b}.

\end{document}

• Now to harmonize command names with cleveref non-local ranges, we may define :

  \newcommand{\rfrange}[2]{(\cref{#1})--(\cref{#2})}
  \newcommand{\rnrange}[2]{\cref{#1}--\cref{#2}}
  \newcommand{\rfstrip}[2]{(\crefrange{#1}{#2})}
  \newcommand{\rnstrip}[2]{\crefrange{#1}{#2}}


Also see :

Crossreference in Ref Range [(1a-1e) to (1a-e)]

Any way to reference a particular component of a label?

Refer to a range of subsubexamples
