Multiple figures side by side with rasters tcoloborx

Question

Context

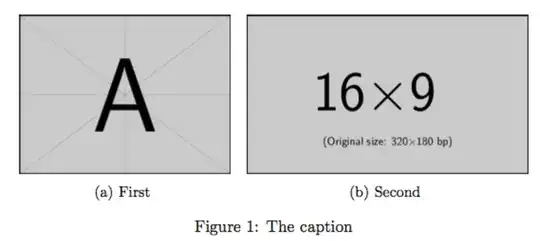

Based on this answer, I can have 2 figures side by side with adjusted width, same height for sub-figures.

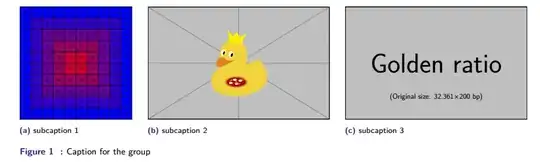

The same approach works for multiple graphs to get something like

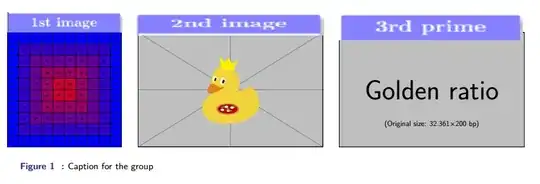

I created \newcommand to include 2, 3, 4 graphs side by side. However, I could certainly benefit from automation of this task with keys.

My question

How can I adjust the \width of each raster (same height) so they can fit harmoniously on the \textwidth ?

How can I use tcolorbox raster for this task ?

So far, here is where I stand

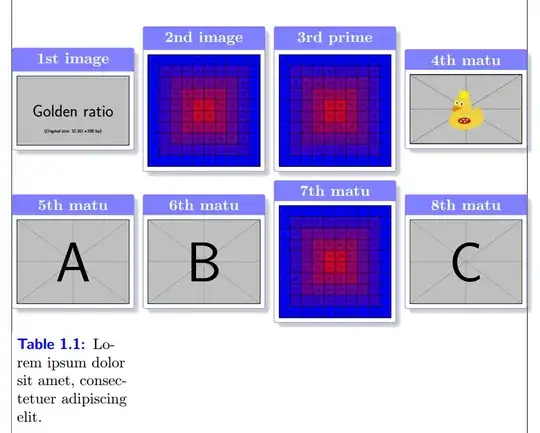

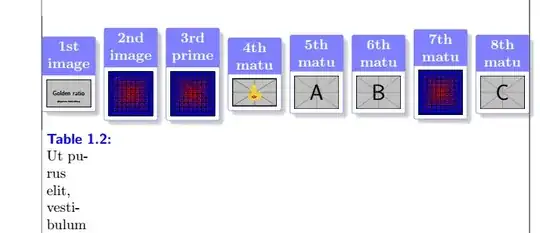

turning to

MWE

\documentclass[twoside,a4paper]{book}
\usepackage{caption}
\usepackage[
    showframe,
    top = 1.8cm,
    bottom = 2cm,
    outer = 7cm,
    inner = 2cm,
    heightrounded,
    marginparwidth = 5.0cm,
    marginparsep = 0.5cm
]{geometry}
\usepackage[most]{tcolorbox}
\usetikzlibrary{shadows,patterns} % preamble
\tcbuselibrary{raster}
\usepackage{lipsum}
\usepackage{tabularray}
\def\fullPage{\dimexpr \marginparwidth+\marginparsep+\textwidth\relax}
\newcommand{\myGraphiX}[2][2]{
\begin{tcbraster}[
%       raster width = \fullPage,
%       raster width = \textwidth,
        raster columns = #1,
%       raster force size = false,
%       raster equal height=rows,
        size = fbox,
        colframe = blue!50,
        colback = white,
        fonttitle = \bfseries,
        center title,
        drop fuzzy shadow,
    ]
\captionsetup{labelfont = {color = blue,bf,sf}}
\tcbincludegraphics[title = 1st image]{example-image-golden}
\tcbincludegraphics[title = 2nd image]{example-grid-100x100pt}
\tcbincludegraphics[title = 3rd prime]{example-grid-100x100pt}
\tcbincludegraphics[title = 4th matu]{example-image-duck}
\tcbincludegraphics[title = 5th matu]{example-image-a}
\tcbincludegraphics[title = 6th matu]{example-image-b}
\tcbincludegraphics[title = 7th matu]{example-grid-100x100pt}
\tcbincludegraphics[title = 8th matu]{example-image-c}

\begin{tcbitemize}[
    raster multicolumn = #1, %Does not seem to work
    halign = left,
    colframe = white,
    colback = white,
]
\tcbitem \captionof{table}{#2}
\end{tcbitemize}


\end{tcbraster}
}
\begin{document}
\chapter{Auto adjustment to figure height}
\myGraphiX[4]{\lipsum[1][1]}
\myGraphiX[8]{\lipsum[1][2]}
\myGraphiX[2]{\lipsum[1][3]}
\end{document}

Next steps

In a future question, I'll ask how to enter a list of figures with their captions to avoid hardcoding. But one step at a time :)

Edit 1

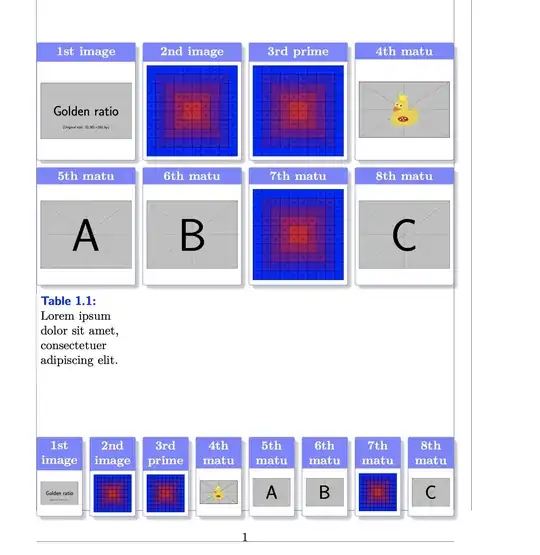

Using raster equal height as described in the anwer leads to

that is not what I am trying to reach.

@DG' thank you but. using
%raster width = \fullPage, %raster width = \textwidth, raster columns = #1, %raster force size = false, %raster equal height=rows, raster equal height, size = fbox, colframe = blue!50, colback = white, fonttitle = \bfseries, center title, drop fuzzy shadow, ]``` leads to the output in Edit 1 — JeT, Mar 01 '22 at 09:27
tcbraster divides linewidth in several equal width columns. If you want/need different width columns, you have to adjust them by hand. — Ignasi, Mar 01 '22 at 19:40
@Ignasi Thank you for your extremely useful comment. As we say in French "it puts the church in the middle of the village" :) — JeT, Mar 01 '22 at 20:14

score 1 · Answer 1 · answered Mar 01 '22 at 09:31

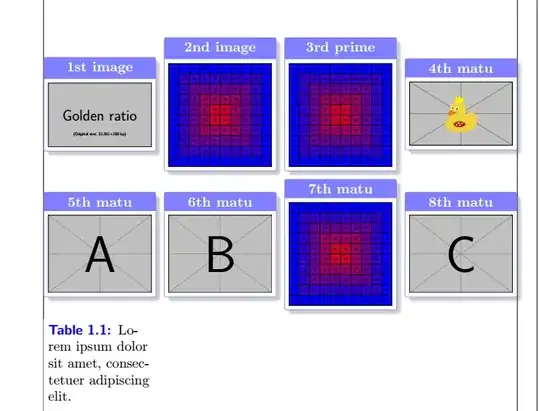

Using raster equal height I get this output:

\documentclass[twoside,a4paper]{book}
\usepackage{caption}
\usepackage[
    showframe,
    top = 1.8cm,
    bottom = 2cm,
    outer = 7cm,
    inner = 2cm,
    heightrounded,
    marginparwidth = 5.0cm,
    marginparsep = 0.5cm
]{geometry}
\usepackage[most]{tcolorbox}
\usetikzlibrary{shadows,patterns} % preamble
\tcbuselibrary{raster}
\usepackage{lipsum}
\usepackage{tabularray}
\def\fullPage{\dimexpr \marginparwidth+\marginparsep+\textwidth\relax}
\newcommand{\myGraphiX}[2][2]{
\begin{tcbraster}[
%       raster width = \fullPage,
%       raster width = \textwidth,
        raster columns = #1,
%       raster force size = false,
%       raster equal height=rows,
        size = fbox,
        colframe = blue!50,
        colback = white,
        fonttitle = \bfseries,
        center title,
        drop fuzzy shadow,
        raster equal height, % <-- HERE
    ]
\captionsetup{labelfont = {color = blue,bf,sf}}
\tcbincludegraphics[title = 1st image]{example-image-golden}
\tcbincludegraphics[title = 2nd image]{example-grid-100x100pt}
\tcbincludegraphics[title = 3rd prime]{example-grid-100x100pt}
\tcbincludegraphics[title = 4th matu]{example-image-duck}
\tcbincludegraphics[title = 5th matu]{example-image-a}
\tcbincludegraphics[title = 6th matu]{example-image-b}
\tcbincludegraphics[title = 7th matu]{example-grid-100x100pt}
\tcbincludegraphics[title = 8th matu]{example-image-c}

\begin{tcbitemize}[
    raster multicolumn = #1, %Does not seem to work
    halign = left,
    colframe = white,
    colback = white,
]
\tcbitem \captionof{table}{#2}
\end{tcbitemize}


\end{tcbraster}
}
\begin{document}
\chapter{Auto adjustment to figure height}
\myGraphiX[4]{\lipsum[1][1]}
\myGraphiX[8]{\lipsum[1][2]}
\myGraphiX[2]{\lipsum[1][3]}
\end{document}

Sorry, I don't get it. The raster is fixed and the boxes are the same height. What do you want to change? — DG', Mar 01 '22 at 09:38
Same height yes, but the width is adjusted as you can see on the 3 graphs below "The same approach works for multiple graphs to get something like" in my question. I'd like to know if I can mimic that with rasters. — JeT, Mar 01 '22 at 09:40
I do actually. I updated the second image on my question to reflect that. — JeT, Mar 01 '22 at 09:56
As far as I can see, you have to stick to columns. Maybe someone else finds a solution that allows flexible widths — DG', Mar 01 '22 at 10:08

Multiple figures side by side with rasters tcoloborx

1 Answers1
