My CSV looks like:

year,min,0.1,0.5,0.75,max,mean,totals
1992,4,200,400,780,1500,600,2345
1993,8,400,800,1560,3000,1200,4680

I'm after a box plot of this with pgfplots, however, the documentation is so large and I don't have the time to spend a few days working to even get a MWE. Could somebody provide an MWE I can work from?

If possible I'd also like to throw a trend line between the mean values of each plot too, and add a single integer value which I manually plot (i.e. not from CSV) to show an outlier.

Timmy
  • 95

1 Answers1

2

I don't see how the total column is needed for a boxplot but anyway, here's an adaptation of what you're asking based on this answer, this answer and this this answer.

Code

\documentclass[crop=false]{standalone}
\usepackage{pgfplotstable}
\pgfplotsset{compat=1.8}
\usepgfplotslibrary{statistics}

\makeatletter
\pgfplotsset{
    boxplot prepared from table/.code={
        \def\tikz@plot@handler{\pgfplotsplothandlerboxplotprepared}%
        \pgfplotsset{
            /pgfplots/boxplot prepared from table/.cd,
            #1,
        }
    },
    /pgfplots/boxplot prepared from table/.cd,
        table/.code={\pgfplotstablecopy{#1}\to\boxplot@datatable},
        row/.initial=0,
        make style readable from table/.style={
            #1/.code={
                \pgfplotstablegetelem{\pgfkeysvalueof{/pgfplots/boxplot prepared from table/row}}{##1}\of\boxplot@datatable
                \pgfplotsset{boxplot/#1/.expand once={\pgfplotsretval}}
            }
        },
        make style readable from table=lower whisker,
        make style readable from table=upper whisker,
        make style readable from table=lower quartile,
        make style readable from table=upper quartile,
        make style readable from table=median,
        make style readable from table=lower notch,
        make style readable from table=upper notch
}
\makeatother


\pgfplotstableread[col sep = comma]{data.csv}\datatable


\begin{document}
\begin{tikzpicture}
\pgfplotstablegetrowsof{\datatable}
\pgfmathtruncatemacro\TotalRows{\pgfplotsretval-1}


\begin{axis}[boxplot/draw direction=y,
xticklabels from table = {\datatable}{year},
xtick = {1,...,\TotalRows+1}
]


\pgfplotsinvokeforeach{0,...,\TotalRows}
{
    \addplot+[
    boxplot prepared from table={
        table=\datatable,
        row=#1,
        lower whisker=min,
        upper whisker=max,
        lower quartile=0.1,
        upper quartile=0.75,
        median=0.5
    },
    boxplot prepared]
    coordinates {};
};


\addplot table [x expr =\coordindex+1,y index=6] {\datatable};
\node[label={225:{Outlier}},circle,fill,inner sep=1.5pt] at (axis cs:2,3000) {};
\legend{};


\end{axis}
\end{tikzpicture}
\end{document}

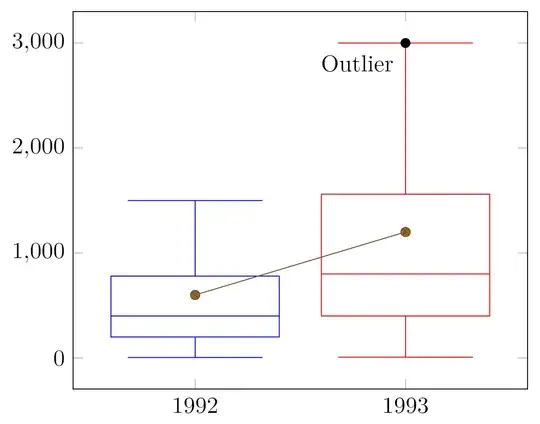

Output

LaTeX output
