Latex - Create Concept Matrix with two dimensions

Question

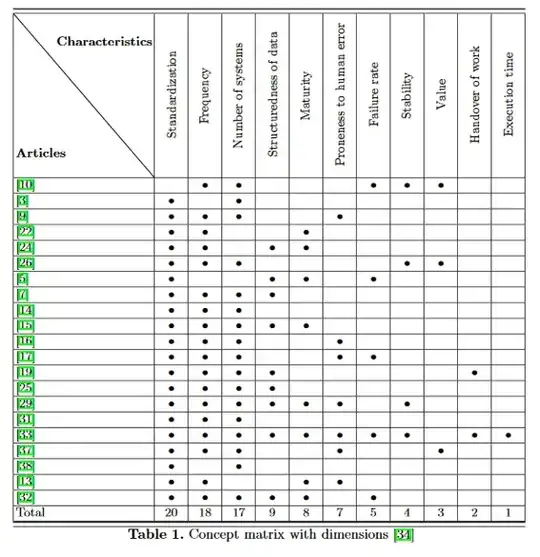

I am trying to create a concept matrix in latex that sticks with the following scheme:

Is this possible to achieve? Do you have any starting points for such-alike table? Many thanks in advance!

This is fairly a straight-forward table except for the very 1st cell with a diagonal cut. For such diagonal cut, you may follow this answer. — Imran, Mar 15 '22 at 11:16

score 1 · Accepted Answer · answered Mar 15 '22 at 12:15

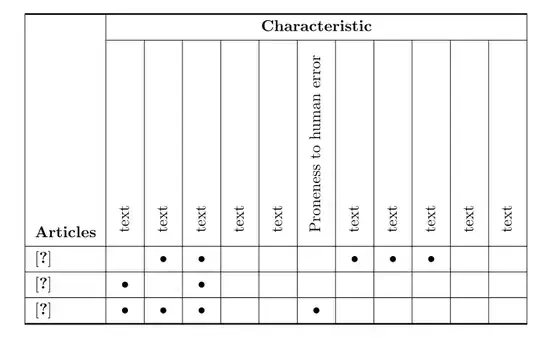

As starting point first few table rows:

\documentclass{article}
\usepackage[margin=25mm]{geometry}
\usepackage{ragged2e}
\usepackage{rotating}   % needed
\usepackage{makecell}   % needed
\usepackage{xcolor}
\usepackage{tabularray}
%\NewTableCommand\TB{\textbullet}
\newcommand\TB{\textbullet}
\begin{document}
    \begin{table}[ht]
    \centering
\settowidth\rotheadsize{Proneness to human error}    % from makecell
\begin{tblr}{hline{1,Z} = 1pt,
             hline{2-Y}=solid, vlines,
             colspec = {l *{11}{c}},
             cell{2}{2-Z} = {cmd=\rotcell},
             row{1} = {font=\bfseries}
            }
\SetCell[r=2]{f, font=\bfseries}    Articles
    &   \SetCell[c=11]{c}   Characteristic
        &   &   &   &   &   &   &   &   &   &       \
    & text
        & text
            & text
                & text
                    & text
                        & Proneness to human error
                            & text
                                & text
                                    & text
                                        & text
                                            & text  \
\cite{10}
    &   & \TB
            & \TB
                &   &   &   & \TB

                                & \TB
                                    & \TB
                                        &   &       \
\cite{3}
    &  \TB
        &   & \TB
                &   &   &   &   &   &   &   &       \
\cite{9}
    &  \TB
        & \TB
            & \TB
                &   &   & \TB

                            &   &   &   &   &       \
\end{tblr}
    \end{table}
\end{document}

do you know how to vertically align the "dots" in the cell in case the references spread over several lines? — bpmler, Mar 15 '22 at 18:42
@bpmler, sorry for late response. I do not completely understand what you mean. Please editi your question and show me an example what you mean with your comment. I guess that it may help the following change in table preamble: colspec = {X[l, m] *{11}{c}},, however, now table width will become equal to text width. Id this desired to? — Zarko, Mar 16 '22 at 06:44
