This is the table I used as inspiration. I don't need the same layout but I want you to make an idea:

enter image description here

I don't need the example words below the symbols, the ones like "bean", "moon", "dear", etc..

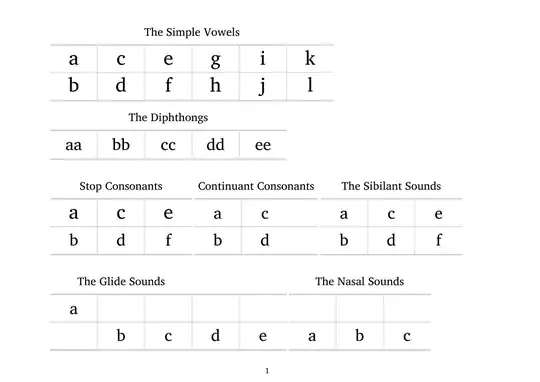

This is what I created in LaTeX so far using tabular: I added all the boxes for all the symbols I will need. So, this is the final number of cells:

enter image description here

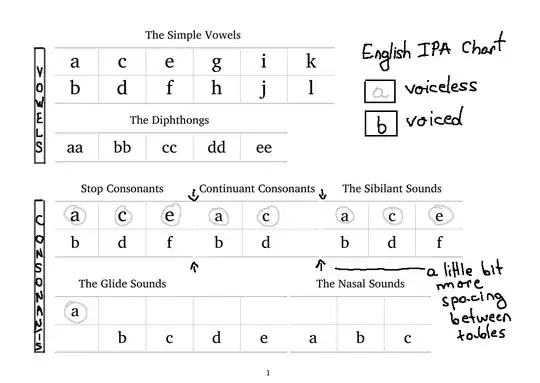

However I would like to create something like this:

enter image description here

I want the circled letters in gray, not black.

Also, I would like to have the title "English IPA Chart" or just "IPA Chart" if there is not enough space on the right side where there is empty space with two examples below.

I would like some spacing between the tables as well and make the bold \hline horizontal lines black and let the others horizontal and vertical lines in light gray like they're now.

This is my LaTeX Code:

\documentclass[a4paper, 12pt]{article}

\usepackage{geometry}
\usepackage{array}
\usepackage{fontspec}
\usepackage{booktabs}
\usepackage{xcolor}
\usepackage{colortbl}


\newcolumntype{P}[1]{>{\centering\arraybackslash}p{#1}}
\arrayrulecolor{lightgray}


\geometry{a4paper, landscape, left=1in, right=1in, top=0.5in, bottom=0.65in}


\renewcommand{\arraystretch}{2.8}


\setmainfont{Charis SIL}


\begin{document}
    \begin{tabular}{P{5em}|P{5em}|P{5em}|P{5em}|P{5em}|P{5em}}
        \multicolumn{6}{c}{\Large The Simple Vowels}\
        \specialrule{1.6pt}{1pt}{1pt}
        \fontsize{30pt}{30pt}\selectfont a & \fontsize{30pt}{30pt}\selectfont c & \fontsize{30pt}{30pt}\selectfont e & \fontsize{30pt}{30pt}\selectfont g & \fontsize{30pt}{30pt}\selectfont i & \fontsize{30pt}{30pt}\selectfont k\
        \hline
        \fontsize{30pt}{30pt}\selectfont b & \fontsize{30pt}{30pt}\selectfont d & \fontsize{30pt}{30pt}\selectfont f & \fontsize{30pt}{30pt}\selectfont h & \fontsize{30pt}{30pt}\selectfont j & \fontsize{30pt}{30pt}\selectfont l\
        \specialrule{1.6pt}{1pt}{1pt}
    \end{tabular}


\begin{tabular}{P{5em}|P{5em}|P{5em}|P{5em}|P{5em}}
    \multicolumn{5}{c}{\Large The Diphthongs}\\
    \specialrule{1.6pt}{1pt}{1pt}
    \huge aa & \huge bb & \huge cc & \huge dd & \huge ee\\
    \specialrule{1.6pt}{1pt}{1pt}
\end{tabular}\\\\

\begin{tabular}{P{5em}|P{5em}|P{5em}}
    \multicolumn{3}{c}{\Large Stop Consonants}\\
    \specialrule{1.6pt}{1pt}{1pt}%
    \fontsize{30pt}{30pt}\selectfont a & \fontsize{30pt}{30pt}\selectfont c & \fontsize{30pt}{30pt}\selectfont e\\
    \hline
    \huge b & \huge d & \huge f\\
    \specialrule{1.6pt}{1pt}{1pt}
\end{tabular}
\begin{tabular}{P{5em}|P{5em}}
    \multicolumn{2}{c}{\Large Continuant Consonants}\\
    \specialrule{1.6pt}{1pt}{1pt}
    \huge a & \huge c\\
    \hline
    \huge b & \huge d\\
    \specialrule{1.6pt}{1pt}{1pt}
\end{tabular}
\begin{tabular}{P{5em}|P{5em}|P{5em}}
    \multicolumn{3}{c}{\Large The Sibilant Sounds}\\
    \specialrule{1.6pt}{1pt}{1pt}
    \huge a & \huge c & \huge e\\
    \hline
    \huge b & \huge d & \huge f\\
    \specialrule{1.6pt}{1pt}{1pt}
\end{tabular}\\\\

\begin{tabular}{P{5em}|P{5em}|P{5em}|P{5em}|P{5em}}
    \multicolumn{3}{c}{\Large The Glide Sounds}\\
    \specialrule{1.6pt}{1pt}{1pt}
    \huge a & & & &\\
    \hline
    & \huge b & \huge c & \huge d & \huge e\\
    \specialrule{1.6pt}{1pt}{1pt}
\end{tabular}
\begin{tabular}{P{5em}|P{5em}|P{5em}}
    \multicolumn{3}{c}{\Large The Nasal Sounds}\\
    \specialrule{1.6pt}{1pt}{1pt}
    & & \\
    \hline
    \huge a & \huge b & \huge c\\
    \specialrule{1.6pt}{1pt}{1pt}
\end{tabular}



\end{document}

I would be grateful for any help. I don't necessarily need that "VOWELS" and "CONSONANT" column with the vertical text. Even if you could just give me some hints or some sample code (not full code) how can I start or proceed I would be grateful.
