How to make my table fit the page? How to put some parts on the next page?

Question

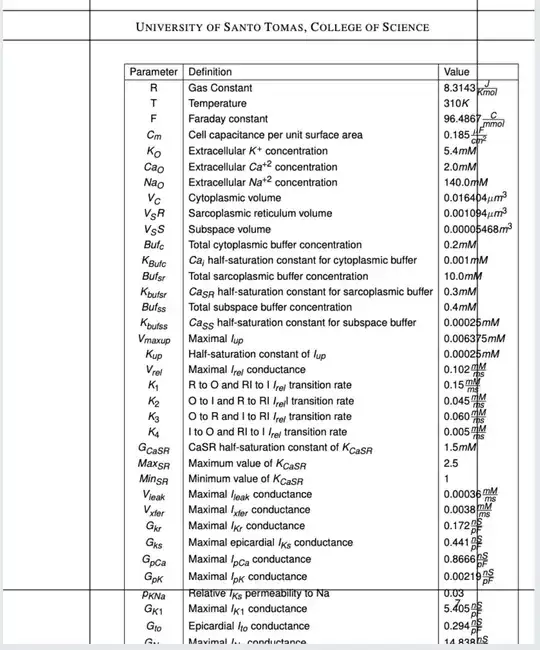

The following table needs to fit into the page width and some parts of it should be put onto the next page:

...
\begin{tabular}[htb]{|c|l|l|}
    \hline
    Parameter & Definition & Value \\
    \hline
    R & Gas Constant & $8.3143 \frac{J}{Kmol}$ \\
    T & Temperature & $310K$ \\
    F & Faraday constant & $96.4867 \frac{C}{mmol}$ \\
    $C_m$ & Cell capacitance per unit surface area & $0.185 \frac{\mu F}{cm^2}$ \\
    $K_O $ & Extracellular $K^+$ concentration & $5.4 mM$ \\
    $Ca_O$ & Extracellular $Ca^{+2}$ concentration & $2.0 mM$ \\
    $Na_O$ & Extracellular $Na^{+2}$ concentration& $140.0 mM $ \\
    $V_C$ & Cytoplasmic volume & $0.016404 \mu m^3$ \\
    $V_SR$ & Sarcoplasmic reticulum volume & $0.001094 \mu m^3$ \\
    $V_SS$ & Subspace volume & $0.00005468 m^3$ \\
    $Buf_c$ & Total cytoplasmic buffer concentration & $0.2mM$ \\
    $K_{Bufc}$ & $Ca_i$ half-saturation constant for cytoplasmic buffer & $0.001mM$ \\
    $Buf_{sr}$ & Total sarcoplasmic buffer concentration & $10.0 mM$ \\
    $K_{bufsr}$ & $Ca_{SR}$ half-saturation constant for sarcoplasmic buffer & $0.3mM$ \\
    $Buf_{ss}$ & Total subspace buffer concentration & $0.4 mM$ \\
    $K_{bufss}$ & $Ca_{SS}$ half-saturation constant for subspace buffer & $0.00025 mM$ \\
    $V_{maxup}$ & Maximal $I_{up}$ & $0.006375 mM$ \\
    $K_{up}$ & Half-saturation constant of $I_{up}$ & $0.00025 mM$ \\
    $V_{rel}$ & Maximal $I_{rel}$ conductance & $0.102 \frac{mM}{ms}$ \\
    $K_1$ & R to O and RI to I $I_{rel}$ transition rate & $0.15 \frac{mM}{ms}$ \\
    $K_2$ & O to I and R to RI $I_{rel}$l transition rate & $0.045\frac{mM}{ms}$ \\
    $K_3$ & O to R and I to RI $I_{rel}$ transition rate & $0.060 \frac{mM}{ms}$ \\
    $K_4$ & I to O and RI to I $I_{rel}$ transition rate & $0.005 \frac{mM}{ms}$ \\
    $G_{CaSR}$ & CaSR half-saturation constant of $K_{CaSR}$ & $1.5 mM$ \\
    $Max_{SR}$ & Maximum value of $K_{CaSR}$ & $2.5$ \\
    $Min_{SR}$ & Minimum value of $K_{CaSR}$ & $1$ \\
    $V_{leak}$ & Maximal $I_{leak}$ conductance & $0.00036 \frac{mM}{ms}$ \\
    $V_{xfer}$ & Maximal $I_{xfer}$ conductance & $0.0038 \frac{mM}{ms}$ \\
    $G_{kr}$ & Maximal $I_{Kr}$ conductance & $0.172\frac{nS}{pF}$ \\
    $G_{ks}$ & Maximal epicardial $I_{Ks}$ conductance & $0.441\frac{nS}{pF}$ \\
    $G_{pCa}$ & Maximal $I_{pCa}$ conductance & $0.8666\frac{nS}{pF}$ \\
    $G_{pK}$ & Maximal $I_{pK}$ conductance & $0.00219\frac{nS}{pF}$ \\
    $p_{KNa}$ & Relative $I_{Ks}$ permeability to Na & $0.03$ \\
    $G_{K1}$ & Maximal $I_{K1}$ conductance & $5.405\frac{nS}{pF}$ \\
    $G_{to}$ & Epicardial $I_{to}$ conductance & $0.294\frac{nS}{pF}$ \\
    $G_{Na}$ & Maximal $I_{Na}$ conductance & $14.838\frac{nS}{pF}$ \\
    $G_{bNa}$ & Maximal $I_{bNa}$ conductance & $0.00029\frac{nS}{pF}$ \\
    $K_{mK}$ & $K_o$ half-saturation constant of $I_{NaK}$ & $1.0 mM$ \\
    $K_{mNa}$ & $Na_i$ half-saturation constant of $I_{NaK}$ & $40.0 mM$ \\
    $K_{NaK}$ & Maximal $I_{NaK} (P_{naK}) & $2.724mM$ \\
    $G_{CaL}$ & Maximal $I_{CaL}$ conductance & $0.00003980\frac{nS}{pF}$ \\
    $G_{bCa}$ & Maximal $I_{pCa}$ conductance & $0.000592\frac{nS}{pF}$ \\
    $k_{NaCa}$ & Maximal $I_{NaCa}$ & $1000$ \\
    $K_{mNai}$ & $Na_i$ half-saturation constant for $NaCa$ & $87.5mM$ \\
    $K_{mCa}$ & $Ca_i$ half-saturation constant for $I_{NaCa} & $1.38mM$ \\
    $K_{mCa}$ & Saturation factor for $I_{NaCa}$ & $0.1mM$ \\
    $n$ & Voltage dependence parameter of $I_{NaCa}$ & $0.35$ \\
    $K_{pCa}$ & Half-saturation constant of $I_{pCa}$ & $0.0005mM$ \\
    \hline
\end{tabular}
...

Please clarify your specific problem or provide additional details to highlight exactly what you need. As it's currently written, it's hard to tell exactly what you're asking. — Community, Mar 30 '22 at 16:45
Try following guides in page breaking - My table doesn't fit; what are my options? - TeX - LaTeX Stack Exchange first. — user202729, Mar 30 '22 at 18:11
Maybe using the longtable package is a good option for you! — TiMauzi, Mar 31 '22 at 01:23

score 1 · Answer 1 · answered Mar 31 '22 at 01:21

I think this can be a solution with package ltablex can be of great use. (Combining longtable and tabularx) Here the column specifier X is used to enable auto linewrap. Please consider the following MWE:

\documentclass[a5paper]{article}
\usepackage[]{geometry}
\usepackage{ltablex}
\usepackage{helvet}
\renewcommand{\familydefault}{\sfdefault}
\usepackage{sansmath} % Enables turning on sans-serif math mode, and using other environments
\sansmath % Enable sans-serif math for rest of document
\usepackage{booktabs} % for better table control
\begin{document}
\begin{tabularx}{\linewidth}{cXl}
  \toprule
  \textbf{Parameter} &amp; \textbf{Definition} &amp; \textbf{Value} \\
  \midrule
  \endhead
  \bottomrule
  \endfoot

R & Gas Constant & $8.3143 \frac{J}{Kmol}$ \
T & Temperature & $310K$ \
F & Faraday constant & $96.4867 \frac{C}{mmol}$ \
$C_m$ & Cell capacitance per unit surface area & $0.185 \frac{\mu F}{cm^2}$ \
$K_O $ & Extracellular $K^+$ concentration & $5.4 mM$ \
$Ca_O$ & Extracellular $Ca^{+2}$ concentration & $2.0 mM$ \
$Na_O$ & Extracellular $Na^{+2}$ concentration& $140.0 mM $ \
$V_C$ & Cytoplasmic volume & $0.016404 \mu m^3$ \
$V_SR$ & Sarcoplasmic reticulum volume & $0.001094 \mu m^3$ \
$V_SS$ & Subspace volume & $0.00005468 m^3$ \
$Buf_c$ & Total cytoplasmic buffer concentration & $0.2mM$ \
$K_{Bufc}$ & $Ca_i$ half-saturation constant for cytoplasmic buffer & $0.001mM$ \
$Buf_{sr}$ & Total sarcoplasmic buffer concentration & $10.0 mM$ \
$K_{bufsr}$ & $Ca_{SR}$ half-saturation constant for sarcoplasmic buffer & $0.3mM$ \
$Buf_{ss}$ & Total subspace buffer concentration & $0.4 mM$ \
$K_{bufss}$ & $Ca_{SS}$ half-saturation constant for subspace buffer & $0.00025 mM$ \
$V_{maxup}$ & Maximal $I_{up}$ & $0.006375 mM$ \
$K_{up}$ & Half-saturation constant of $I_{up}$ & $0.00025 mM$ \
$V_{rel}$ & Maximal $I_{rel}$ conductance & $0.102 \frac{mM}{ms}$ \
$K_1$ & R to O and RI to I $I_{rel}$ transition rate & $0.15 \frac{mM}{ms}$ \
$K_2$ & O to I and R to RI $I_{rel}$l transition rate & $0.045\frac{mM}{ms}$ \
$K_3$ & O to R and I to RI $I_{rel}$ transition rate & $0.060 \frac{mM}{ms}$ \
$K_4$ & I to O and RI to I $I_{rel}$ transition rate & $0.005 \frac{mM}{ms}$ \
$G_{CaSR}$ & CaSR half-saturation constant of $K_{CaSR}$ & $1.5 mM$ \
$Max_{SR}$ & Maximum value of $K_{CaSR}$ & $2.5$ \
$Min_{SR}$ & Minimum value of $K_{CaSR}$ & $1$ \
$V_{leak}$ & Maximal $I_{leak}$ conductance & $0.00036 \frac{mM}{ms}$ \
$V_{xfer}$ & Maximal $I_{xfer}$ conductance & $0.0038 \frac{mM}{ms}$ \
$G_{kr}$ & Maximal $I_{Kr}$ conductance & $0.172\frac{nS}{pF}$ \
$G_{ks}$ & Maximal epicardial $I_{Ks}$ conductance & $0.441\frac{nS}{pF}$ \
$G_{pCa}$ & Maximal $I_{pCa}$ conductance & $0.8666\frac{nS}{pF}$ \
$G_{pK}$ & Maximal $I_{pK}$ conductance & $0.00219\frac{nS}{pF}$ \
$p_{KNa}$ & Relative $I_{Ks}$ permeability to Na & $0.03$ \
$G_{K1}$ & Maximal $I_{K1}$ conductance & $5.405\frac{nS}{pF}$ \
$G_{to}$ & Epicardial $I_{to}$ conductance & $0.294\frac{nS}{pF}$ \
$G_{Na}$ & Maximal $I_{Na}$ conductance & $14.838\frac{nS}{pF}$ \
$G_{bNa}$ & Maximal $I_{bNa}$ conductance & $0.00029\frac{nS}{pF}$ \
$K_{mK}$ & $K_o$ half-saturation constant of $I_{NaK}$ & $1.0 mM$ \
$K_{mNa}$ & $Na_i$ half-saturation constant of $I_{NaK}$ & $40.0 mM$ \
$K_{NaK}$ & Maximal $I_{NaK}$ $(P_{naK})$ & $2.724mM$ \
$G_{CaL}$ & Maximal $I_{CaL}$ conductance & $0.00003980\frac{nS}{pF}$ \
$G_{bCa}$ & Maximal $I_{pCa}$ conductance & $0.000592\frac{nS}{pF}$ \
$k_{NaCa}$ & Maximal $I_{NaCa}$ & $1000$ \
$K_{mNai}$ & $Na_i$ half-saturation constant for $NaCa$ & $87.5mM$ \
$K_{mCa}$ & $Ca_i$ half-saturation constant for $I_{NaCa}$ & $1.38mM$ \
$K_{mCa}$ & Saturation factor for $I_{NaCa}$ & $0.1mM$ \
$n$ & Voltage dependence parameter of $I_{NaCa}$ & $0.35$ \
$K_{pCa}$ & Half-saturation constant of $I_{pCa}$ & $0.0005mM$ \
    \end{tabularx}
\end{document}

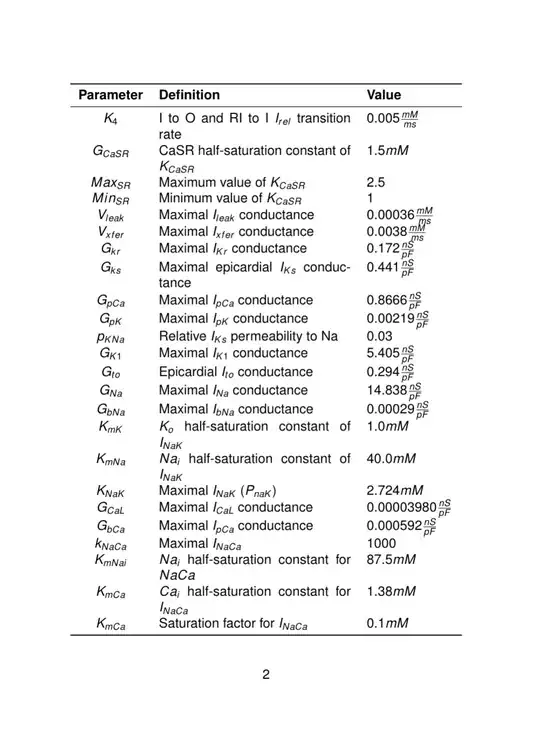

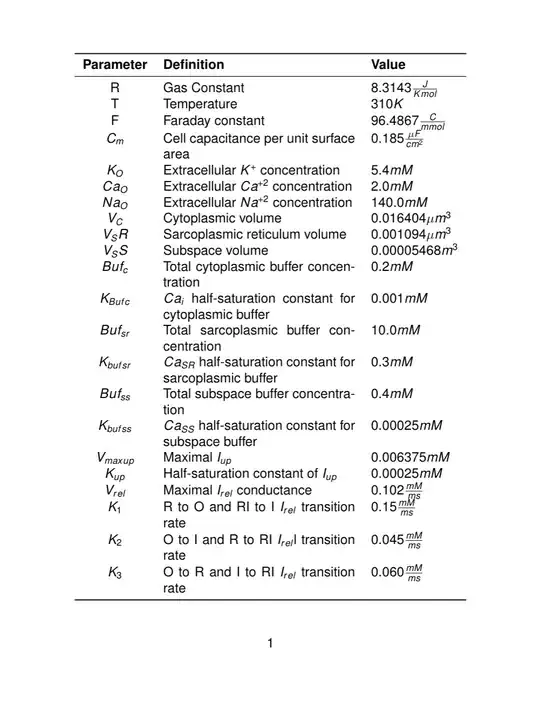

which produces

score 0 · Answer 2 · edited Mar 31 '22 at 00:55

Try using,

\resizebox{\textwidth}{!}{%
\begin{tabular}[htb]{|c|l|l|}
...
\tabular}
}

Here is how it works.

      \resizebox{\textwidth}{!}{%
       \begin{tabular}[htb]{|c|l|l|}
      \hline
      Parameter    & Definition & Value \\
      \hline
R & Gas Constant & $8.3143 \frac{J}{Kmol}$ \\
T & Temperature & $310K$ \\
F & Faraday constant & $96.4867 \frac{C}{mmol}$ \\
$C_m$ & Cell capacitance per unit surface area & $0.185 \frac{\mu F}{cm^2}$ \\
$K_O $ & Extracellular $K^+$ concentration & $5.4 mM$ \\
$Ca_O$ & Extracellular $Ca^{+2}$ concentration & $2.0 mM$ \\
$Na_O$ & Extracellular $Na^{+2}$ concentration& $140.0 mM $ \\
$V_C$ & Cytoplasmic volume & $0.016404 \mu m^3$ \\
$V_SR$ & Sarcoplasmic reticulum volume & $0.001094 \mu m^3$ \\
$V_SS$ & Subspace volume & $0.00005468 m^3$ \\
$Buf_c$ & Total cytoplasmic buffer concentration & $0.2mM$ \\
$K_{Bufc}$ & $Ca_i$ half-saturation constant for cytoplasmic buffer & $0.001mM$ \\
$Buf_{sr}$ & Total sarcoplasmic buffer concentration & $10.0 mM$ \\
$K_{bufsr}$ & $Ca_{SR}$ half-saturation constant for sarcoplasmic buffer & $0.3mM$ \\
$Buf_{ss}$ & Total subspace buffer concentration & $0.4 mM$ \\
$K_{bufss}$ & $Ca_{SS}$ half-saturation constant for subspace buffer & $0.00025 mM$ \\
$V_{maxup}$ & Maximal $I_{up}$ & $0.006375 mM$ \\
$K_{up}$ & Half-saturation constant of $I_{up}$ & $0.00025 mM$ \\
$V_{rel}$ & Maximal $I_{rel}$ conductance & $0.102 \frac{mM}{ms}$ \\
$K_1$ & R to O and RI to I $I_{rel}$ transition rate & $0.15 \frac{mM}{ms}$ \\
$K_2$ & O to I and R to RI $I_{rel}$l transition rate & $0.045\frac{mM}{ms}$ \\
$K_3$ & O to R and I to RI $I_{rel}$ transition rate & $0.060 \frac{mM}{ms}$ \\
$K_4$ & I to O and RI to I $I_{rel}$ transition rate & $0.005 \frac{mM}{ms}$ \\
$G_{CaSR}$ & CaSR half-saturation constant of $K_{CaSR}$ & $1.5 mM$ \\
$Max_{SR}$ & Maximum value of $K_{CaSR}$ & $2.5$ \\
$Min_{SR}$ & Minimum value of $K_{CaSR}$ & $1$ \\
$V_{leak}$ & Maximal $I_{leak}$ conductance & $0.00036 \frac{mM}{ms}$ \\
$V_{xfer}$ & Maximal $I_{xfer}$ conductance & $0.0038 \frac{mM}{ms}$ \\
$G_{kr}$ & Maximal $I_{Kr}$ conductance & $0.172\frac{nS}{pF}$ \\
$G_{ks}$ & Maximal epicardial $I_{Ks}$ conductance & $0.441\frac{nS}{pF}$ \\
$G_{pCa}$ & Maximal $I_{pCa}$ conductance & $0.8666\frac{nS}{pF}$ \\
$G_{pK}$ & Maximal $I_{pK}$ conductance & $0.00219\frac{nS}{pF}$ \\
$p_{KNa}$ & Relative $I_{Ks}$ permeability to Na & $0.03$ \\
$G_{K1}$ & Maximal $I_{K1}$ conductance & $5.405\frac{nS}{pF}$ \\
$G_{to}$ & Epicardial $I_{to}$ conductance & $0.294\frac{nS}{pF}$ \\
$G_{Na}$ & Maximal $I_{Na}$ conductance & $14.838\frac{nS}{pF}$ \\
$G_{bNa}$ & Maximal $I_{bNa}$ conductance & $0.00029\frac{nS}{pF}$ \\
$K_{mK}$ & $K_o$ half-saturation constant of $I_{NaK}$ & $1.0 mM$ \\
$K_{mNa}$ & $Na_i$ half-saturation constant of $I_{NaK}$ & $40.0 mM$ \\
$K_{NaK}$ & Maximal $I_{NaK} (P_{naK}) & $2.724mM$ \\
$G_{CaL}$ & Maximal $I_{CaL}$ conductance & $0.00003980\frac{nS}{pF}$ \\
$G_{bCa}$ & Maximal $I_{pCa}$ conductance & $0.000592\frac{nS}{pF}$ \\
$k_{NaCa}$ & Maximal $I_{NaCa}$ & $1000$ \\
$K_{mNai}$ & $Na_i$ half-saturation constant for $NaCa$ & $87.5mM$ \\
$K_{mCa}$ & $Ca_i$ half-saturation constant for $I_{NaCa} & $1.38mM$ \\
$K_{mCa}$ & Saturation factor for $I_{NaCa}$ & $0.1mM$ \\
$n$ & Voltage dependence parameter of $I_{NaCa}$ & $0.35$ \\
$K_{pCa}$ & Half-saturation constant of $I_{pCa}$ & $0.0005mM$ \\
      \hline
    \end{tabular}
     }
  \end{center}
\end{table}

Personally, I reckon resizebox around a table can only be a last resort, since it may lead to inconsistent size. — Teddy van Jerry, Mar 31 '22 at 00:55
@TeddyvanJerry I am pretty new to LaTeX. I started using it for my physics lab report in January, so I only know what I need to know. I always use resizebox, but what is the best way of resizing a table so that it fits on the page and is aligned with the text margins? — Alison Frayne, Mar 31 '22 at 01:30
