node positioning in a forest

Question

I followed the forest based solution of this post Making a (simple) directory tree to create a directory structure. Right to each file and name I want to add its full path. Full paths should also be left aligned. I came up with this dirty solution:

\documentclass{standalone}
\usepackage{forest}
\usetikzlibrary{positioning}
\begin{document}
\begin{forest}
  for tree={
    font=\ttfamily,
    grow'=0,
    child anchor=west,
    parent anchor=south,
    anchor=west,
    calign=first,
    s sep=6pt,
    inner sep=0pt,
    edge path={
      \noexpand\path [draw, \forestoption{edge}]
      (!u.south west) +(6pt,0) |- (.child anchor)\forestoption{edge label};
    },
    before typesetting nodes={
      if n=1
      {insert before={[,phantom]}}
      {}
    },
    fit=band,
    before computing xy={l=5mm},
  }
  [a,name=a
    [b
      [c
        [d]
      ]
    ]
    [e
      [f]
      [b]
    ]
  ]
  %
  \node[right of=a,node distance=2cm] (desc) {\tt /a};
  \node[below=13pt of desc.west,anchor=west] (desc) {\tt /a/b};
  \node[below=13pt of desc.west,anchor=west] (desc) {\tt /a/b/c};
  \node[below=13pt of desc.west,anchor=west] (desc) {\tt /a/b/c/d};
  \node[below=12pt of desc.west,anchor=west] (desc) {\tt /a/e};
  \node[below=13pt of desc.west,anchor=west] (desc) {\tt /a/e/f};
  \node[below=13pt of desc.west,anchor=west] (desc) {\tt /a/e/b};
\end{forest}
\end{document}

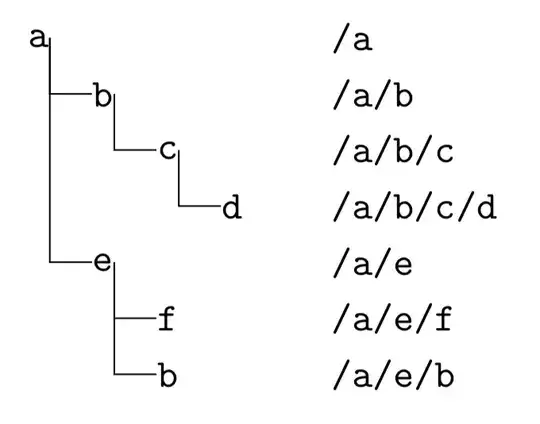

That displays like this:

It looks ok, but I would like to come up with a clean solution that avoids hard-coding distances between full paths.

Answer 1

I suggest simplifying your tree somewhat by using forked edge, with fork sep=0pt. (Note, this requires \usepackage[edges]{forest}.) I included each path description as a new child node, then used if n children=0{no edge, tier=desc}{l-=4mm} to prevent those last edges from being drawn and keep them aligned in the l dimension (which is what tier is used for). If n children≠0 then the l dimension is shortened by 4mm. You could also shorten (by the same or different amount) if you want the path description closer to the tree.

\documentclass{article}
\usepackage[edges]{forest}
\begin{document}
\begin{forest}
  for tree={
    font=\ttfamily,
    grow'=0,
    anchor=west,
    calign=first,
    s sep=6pt,
    inner sep=0pt,
    forked edge,
    fork sep=0pt,
    l sep=3mm,
    if n children=0{no edge, tier=desc}{l-=4mm}
  }
  [a
    [/a]
    [b
    [/a/b]
      [c
      [/a/b/c]
        [d
        [/a/b/c/d]
        ]
      ]
    ]
    [e
    [/a/e]
      [f
      [/a/e/f]
      ]
      [b
      [/a/e/b]
      ]
    ]
  ]
\end{forest}
\end{document}
