How can I prevent table to write over one column equation in twocolumn document class

Question

My goal is to write a one-column equation in a two-column document class. I have used the following answer: https://www.researchgate.net/post/How_to_make_equation_one_column_in_two_column_paper_in_latex .

\usepackage{lipsum, mathtools, cuted}
\begin{strip}
\begin{equation}
                        Your equation goes here
\end{equation}
\end{strip}

But when I use a table in between, it overwrites the equation. Is it possible to prevent this?

My sample code:

\documentclass[twocolumn]{article}
\usepackage{color, etoolbox, lipsum, mathtools, geometry}
\usepackage{cuted, textcomp, setspace, longtable, tabularx, array}
\begin{document}
\begin{center}
    \begin{singlespace}
        \begin{tabular}{ c c c }
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
        \end{tabular}
    \end{singlespace}
\end{center}
\begin{strip}
    [
        a + b + c + d + e + f + g + h + i + j + k + l + m + n + o + p + q
    ]
\end{strip}
\begin{equation}
    \begin{aligned}
        f(x)=
        \begin{cases}
            1 & \text{if}\ \text{x=0} \
            0 & \text{otherwise}.
        \end{cases}
    \end{aligned}
\end{equation}
\end{document}

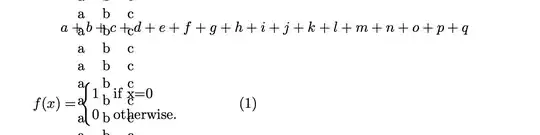

AS you can see in the output, my table merges with the whole page equation:

Is it possible to prevent this, where tables and the long equation won't write on top of each other?

Please note that firstly I have tried widetext from this solution: One column equation in twocolumn document class ; but I have received following error: ! LaTeX Error: File 'widetext.sty' not found.

It seems you can have up to 18 rows in your table without overwriting the equation. — Bernard, Apr 21 '22 at 10:43
Ah in my original file there is one table which has exact 19 rows I believe that one was causing an issue. Is it possible to extend 18 rows update 25 ? — alper, Apr 21 '22 at 10:45
I have no idea which parameter controls the number of allowed rows. May be with a longtable it would work? — Bernard, Apr 21 '22 at 10:59
I found that if I added some text, such as \lipsum[1] before your code for the tabular and \lipsum[1-4] the end of your document it worked OK. I have no idea why but feel that it might have something to do with the definition of the strip environment (wherever that came from). BTW you have use several packages multiple times so your MWE needs clearing up. — Peter Wilson, Apr 22 '22 at 17:50
I cleared up multiple packages. When I play around the order in some cases works too. I put a wrong link for the approach I tried. Originally I was not able to use widetext package had this issue:(File 'widetext.sty' not found) so I was looking for another solution, strip came from some comment of a user I found in internet from here: https://www.researchgate.net/post/How_to_make_equation_one_column_in_two_column_paper_in_latex ; — alper, Apr 22 '22 at 19:52

TiMauzi · Accepted Answer · 2022-04-29T12:03:52.043

Maybe using multicol is a nice and easy workaround:

\documentclass{article}
\usepackage{lipsum, mathtools}
\usepackage{setspace}
\usepackage{multicol}
\begin{document}
\begin{multicols}{2}
\lipsum[1]
\begin{center}
    \begin{singlespace}
        \begin{tabular}{ c c c }
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
            a & b & c \\
        \end{tabular}
    \end{singlespace}
\end{center}
\end{multicols}
\[
    a + b + c + d + e + f + g + h + i + j + k + l + m + n + o + p + q
\]
\begin{equation}
    \begin{aligned}
        f(x)=
        \begin{cases}
            1 & \text{if}\ \text{x=0} \\
            0 & \text{otherwise}.
        \end{cases}
    \end{aligned}
\end{equation}
\begin{multicols}{2}
\lipsum[1]
\end{multicols}
\end{document}

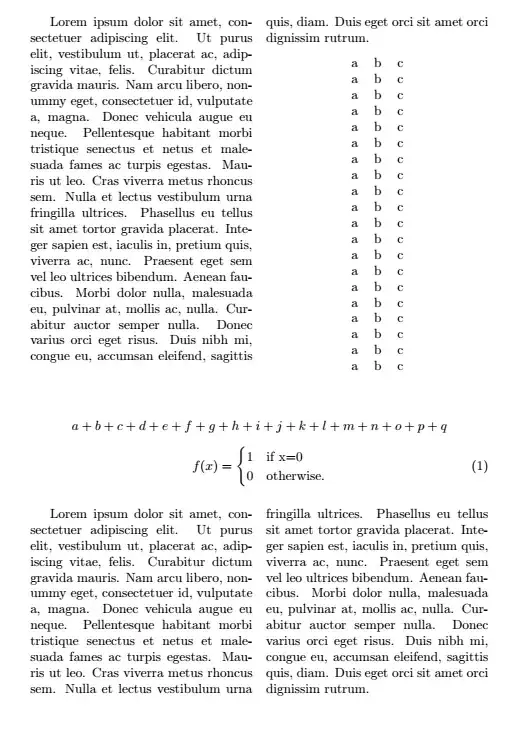

Of course, this is technically not a two-column document. Instead, we can just take a one-column document and add the two-column parts around basically all text that is not your equation.
