In writing a control proof, I need to type "k times" below the two products as shown in the code below. How can I do it?

\documentclass[12pt]{article}

\usepackage{amsmath}


\begin{document}


To prove: $\boxed{  [ \Phi(t) ]^k = \Phi(k t). }$


    Since $\Phi(t) = e^{A t}$, we find that
    $$
    [ \Phi(t) ]^k = \Phi(t) \Phi(t) \cdots \Phi(t) = e^{A t}  e^{A t} \cdot e^{A t} = e^{k A t}
    $$




\end{document}

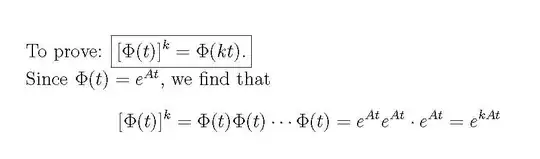

LaTeX Output

Peter Mortensen
  • 1,028
Dr. Sundar
  • 705
  • I fully agree that it is "generally understood" when we write a research paper and we don't need to spell out "k times" with "underbrace".. However, for lecture notes, I like to add this for "pedagogy".. I am writing lecture notes for a control course that I teach to M. Tech engineering students, and I like to ensure that they understand in detail. Thanks. – Dr. Sundar Apr 26 '22 at 05:04

1 Answers1

10

You can use the \underbrace macro.

\documentclass[12pt]{article}

\usepackage{amsmath}


\begin{document}


To prove: $\boxed{  [ \Phi(t) ]^k = \Phi(k t). }$


Since $\Phi(t) = e^{A t}$, we find that
\[
    [ \Phi(t) ]^k
    = \underbrace{ \Phi(t) \Phi(t) \cdots \Phi(t) }_{k \text{ times}}
    = \underbrace{ e^{A t}  e^{A t} \cdots e^{A t} \mathstrut }_{k \text{ times}}
    = e^{k A t}
\]




\end{document}

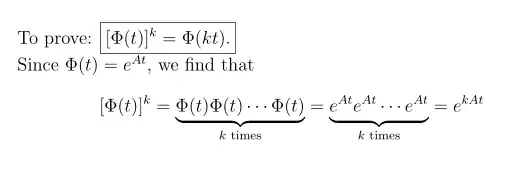

output

A \mathstrut is placed to improve the spacing of the second brace.

Note that you should use \[...\] in LaTeX instead of the deprecated $$...$$. See this post for more information.
