longtable and adjustbox/textwidth

Question

Can this table be put on the width of the text ? I have tried many things but they didn't work.

\setlength\LTleft{0pt}
\setlength\LTright{0pt}
\begin{longtable}[c]{@{\extracolsep{\fill}}cccccccccc@{}}
\centering
\caption{Zoznam, zapojenie a parametre vedení 110 kV} \label{tab:long1} \\
% First head
\hline
\multicolumn{10}{c}{Vedenia} \
\hline
\multicolumn{1}{c}{Názov} &
\multicolumn{1}{c}{Uzol 1} &
\multicolumn{1}{c}{Uzol 2} &
\multicolumn{1}{c}{$R_1 {[}\Omega{]}$}&
\multicolumn{1}{c}{$X_1 {[}\Omega{]}$}&
\multicolumn{1}{c}{$B_1 {[}\mu S{]}$}&
\multicolumn{1}{c}{$R_0 {[}\Omega{]}$}&
\multicolumn{1}{c}{$X_0 {[}\Omega{]}$}&
\multicolumn{1}{c}{$B0 {[}\mu S{]}$}&
\multicolumn{1}{c}{$I_{dov} {[}A{]}$}
\ \hline
\endfirsthead
% Standard head
\multicolumn{10}{c}
{{\tablename\ \thetable{} \textit{(Pokračovanie)}}} \
\hline
\multicolumn{1}{c}{Názov} &
\multicolumn{1}{c}{Uzol 1} &
\multicolumn{1}{c}{Uzol 2} &
\multicolumn{1}{c}{$R_1 {[}\Omega{]}$}&
\multicolumn{1}{c}{$X_1 {[}\Omega{]}$}&
\multicolumn{1}{c}{$B_1 {[}\mu S{]}$}&
\multicolumn{1}{c}{$R_0 {[}\Omega{]}$}&
\multicolumn{1}{c}{$X_0 {[}\Omega{]}$}&
\multicolumn{1}{c}{$B_0 \mu S{]}$}&
\multicolumn{1}{c}{$I_{dov} {[}A{]}$}
\ \hline
\endhead
% Footnote
\hline\multicolumn{10}{r}{{\textit{Pokračovanie na ďalšej strane...}}} \
\endfoot
% Last footnote
\hline
\endlastfoot
%%%Table%%%
\end{longtable}

Welcome to TeX.SE. Please tell us which document class you employ. — Mico, Apr 30 '22 at 09:35
why do you have \multicolumn{1}{c} ? You can remove them all, your columns are already centred. — David Carlisle, Apr 30 '22 at 10:35

score 2 · Accepted Answer · answered Apr 30 '22 at 10:06

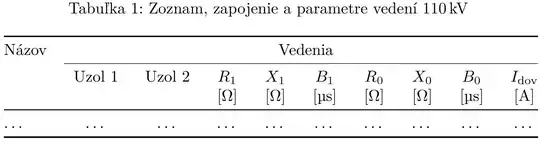

Assuming you're using one of the standard document classes (article, report, or book) or a document class that's built on a standard document class, the following code should work just fine. A main change, relative to the code fragment you posted, is moving the units to a separate header row; this makes each column just that much less wide.

The following code also contains a fix for an incompatibility between slovak/babel and some of the macros of the booktabs package.

\documentclass{article}
\usepackage{siunitx}
\usepackage[slovak]{babel}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
\usepackage{longtable}
\usepackage{booktabs}
% fix incompatibility between babel/slovak and booktabs macros:
\begingroup % see https://tex.stackexchange.com/a/112001/5001
    \makeatletter
    \catcode\-=\active \AtBeginDocument{ \def\@@@cmidrule[#1-#2]#3#4{\global\@cmidla#1\relax \global\advance\@cmidla\m@ne \ifnum\@cmidla&gt;0\global\let\@gtempa\@cmidrulea\else \global\let\@gtempa\@cmidruleb\fi \global\@cmidlb#2\relax \global\advance\@cmidlb-\@cmidla \global\@thisrulewidth=#3 \@setrulekerning{#4} \ifnum\@lastruleclass=\z@\vskip \aboverulesep\fi \ifnum0={\fi}@gtempa
        \noalign{\ifnum0=`}\fi\futurenonspacelet@tempa@xcmidrule}
    }
\endgroup
\begin{document}
\setlength\LTleft{0pt}
\setlength\LTright{0pt}
\begin{longtable}[c]{@{\extracolsep{\fill}} l *{9}{c} @{}}
%%\centering % <-- not needed
% First head
\caption{Zoznam, zapojenie a parametre vedení \qty{110}{\kilo\volt}} \label{tab:long1} \
\toprule
Názov & \multicolumn{9}{c@{}}{Vedenia} \
\cmidrule{2-10}
& Uzol 1 & Uzol 2 & $R_1$ & $X_1$ & $B_1$ & $R_0$ & $X_0$ & $B_0$ & $I_{\mathrm{dov}}$\
& & & [\unit{\ohm}] & [\unit{\ohm}] & [\unit{\micro\second}]
    & [\unit{\ohm}] & [\unit{\ohm}] & [\unit{\micro\second}]
    & [\unit{\ampere}]\
\midrule
\endfirsthead
%% Standard head
\multicolumn{10}{@{}l}{\tablename\ \thetable\ \textit{(Pokračovanie)}} \
\toprule
Názov & \multicolumn{9}{c@{}}{Vedenia} \
\cmidrule{2-10}
& Uzol 1 & Uzol 2 & $R_1$ & $X_1$ & $B_1$ & $R_0$ & $X_0$ & $B_0$ & $I_{\mathrm{dov}}$\
& & & [\unit{\ohm}] & [\unit{\ohm}] & [\unit{\micro\second}]
    & [\unit{\ohm}] & [\unit{\ohm}] & [\unit{\micro\second}]
    & [\unit{\ampere}]\
\midrule
\endhead
% Footer
\midrule
\multicolumn{10}{r@{}}{\footnotesize\emph{Pokračovanie na ďalšej strane\dots}} \
\endfoot
% Last footer
\bottomrule
\endlastfoot
%%%Table%%%
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\end{longtable}
\end{document}

score 0 · Answer 2 · answered Apr 30 '22 at 19:47

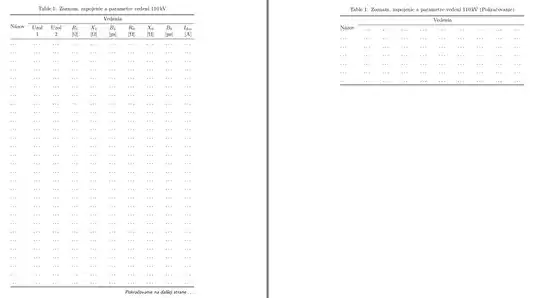

With use of the tabularray package the table code is simple and short:

\documentclass{article}
\usepackage[T1]{fontenc}
\usepackage{lmodern}
\usepackage{tabularray}
\UseTblrLibrary{booktabs, siunitx}
    \DefTblrTemplate{conthead-text}{normal}{(Pokračovanie)}
    \SetTblrTemplate{conthead-text}{normal}
    \DefTblrTemplate{contfoot-text}{normal}{Pokračovanie na ďalšej strane \dots}
    \SetTblrStyle{contfoot-text}{font=\small\sffamily\itshape, gray5}
    \SetTblrTemplate{contfoot-text}{normal}
\begin{document}
\begin{longtblr}[
caption = {Zoznam, zapojenie a parametre vedení \qty{110}{\kilo\volt}},
  label = {tab:long1}
                ]{%colsep = 3pt,
                 colspec = {@{} l *{9}{X[c]} @{}},
                  row{1} = {mode=text},
                 rowhead = 1
                 }
    \toprule

\SetCell[r=2]{c}    Názov

    &   \SetCell[c=9]{c}    Vedenia
            &   &   &   &   &   &   &   &   \
    \midrule
& Uzol 1 & Uzol 2
            & $R_1$ [\unit{\ohm}]
                & $X_1$ [\unit{\ohm}]
                    & $B_1$ [\unit{\micro\second}]
                        & $R_0$ [\unit{\ohm}]
                            & $X_0$ [\unit{\ohm}]
                                & $B_0$ [\unit{\micro\second}]
                                    & $I_{\mathrm{dov}}$ [\unit{\ampere}]
                                        \
    \midrule
% table body
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
\dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots & \dots  \
    \bottomrule
\end{longtblr}
\end{document}
